| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T38_9000004454_30832cztM0_level2.evt | modeM0/AS1A10_071T38_9000004454_30832cztM0_level2_quad_clean.evt |
| Size (bytes) | 614,537,280 | 71,570,880 |
| Size | 586.1 MB | 68.3 MB |
| Events in quadrant A | 3,554,451 | 446,857 |
| Events in quadrant B | 5,830,480 | 449,813 |
| Events in quadrant C | 3,757,068 | 413,869 |
| Events in quadrant D | 5,029,059 | 401,730 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14180 | 2 |
| B | 0 | 21321 | 2 |
| C | 0 | 14900 | 2 |
| D | 0 | 19387 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6520 | 24 | 0.368098% |
| B | 6520 | 247 | 3.788344% |
| C | 6520 | 113 | 1.733129% |
| D | 6520 | 84 | 1.288344% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

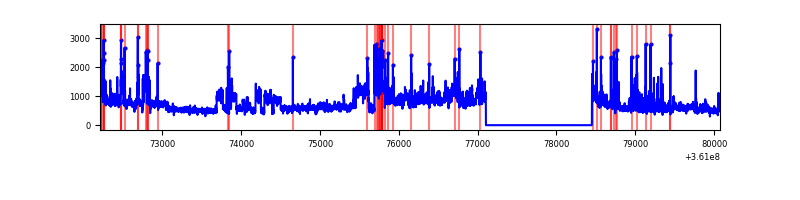

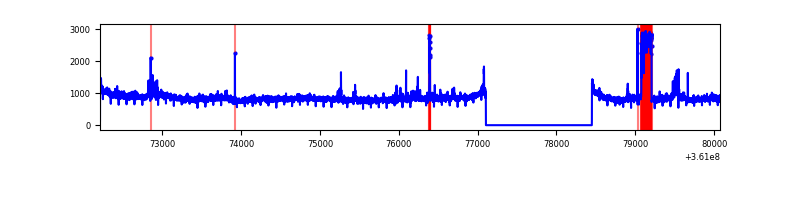

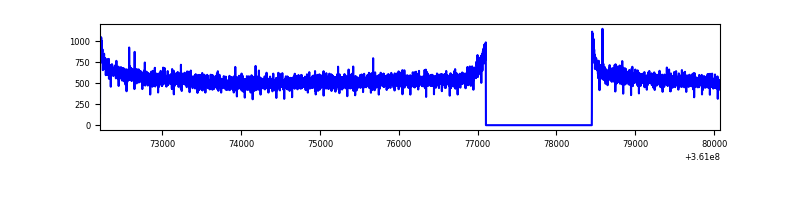

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7865 | 6520 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7865 | 6520 | 138 | 138 | 1.75% | 2.12% |  |
| C | 7865 | 6520 | 21 | 21 | 0.27% | 0.32% |  |
| D | 7865 | 6521 | 65 | 65 | 0.83% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12116 | 61.18 | 921 | 907 | 183.2 |
| A | 3 | 137 | 8142 | 39.49 | 921 | 907 | 183.2 |
| A | 0 | 226 | 7867 | 37.99 | 921 | 907 | 183.2 |
| B | 6 | 159 | 1800263 | 10750.95 | 900 | 882 | 167.4 |
| B | 0 | 229 | 327990 | 1954.41 | 900 | 882 | 167.4 |
| B | 5 | 255 | 101106 | 598.82 | 900 | 882 | 167.4 |
| C | 14 | 238 | 142542 | 707.26 | 860 | 868 | 200.3 |
| C | 0 | 10 | 125926 | 624.31 | 860 | 868 | 200.3 |
| C | 3 | 233 | 105417 | 521.92 | 860 | 868 | 200.3 |
| D | 8 | 195 | 1254777 | 6230.0 | 856 | 841 | 201.3 |
| D | 12 | 218 | 195705 | 968.15 | 856 | 841 | 201.3 |
| D | 1 | 52 | 163829 | 809.78 | 856 | 841 | 201.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

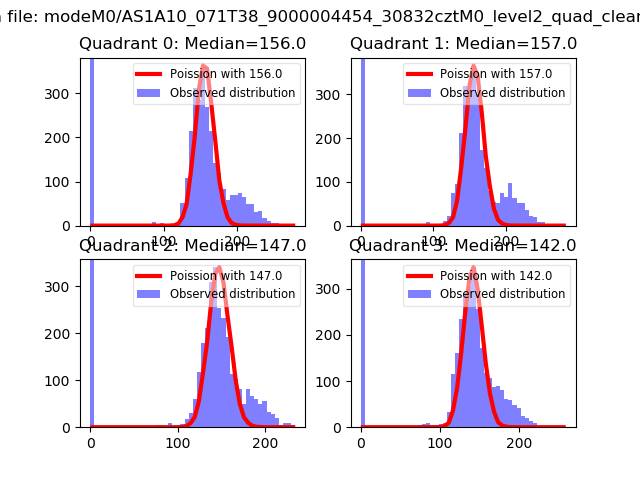

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

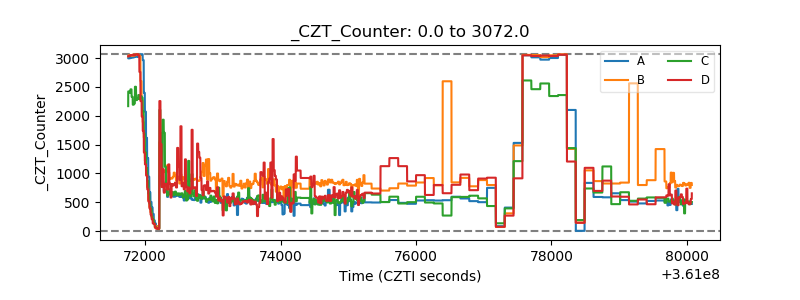

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

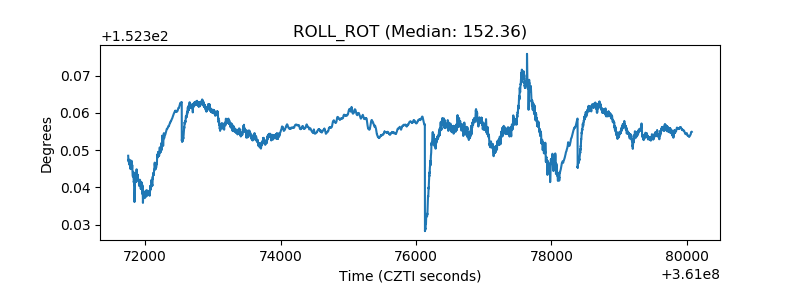

| _ROLL_ROT |  |

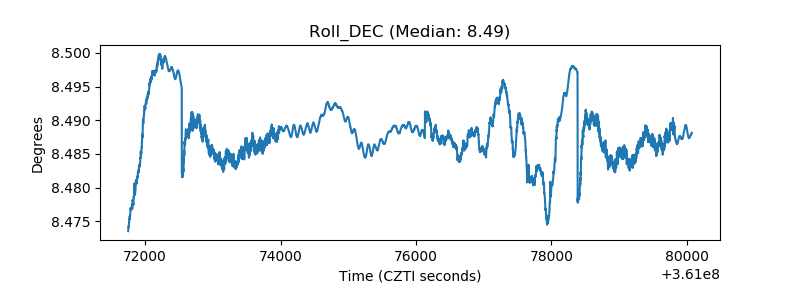

| _Roll_DEC |  |
| _Roll_RA |  |

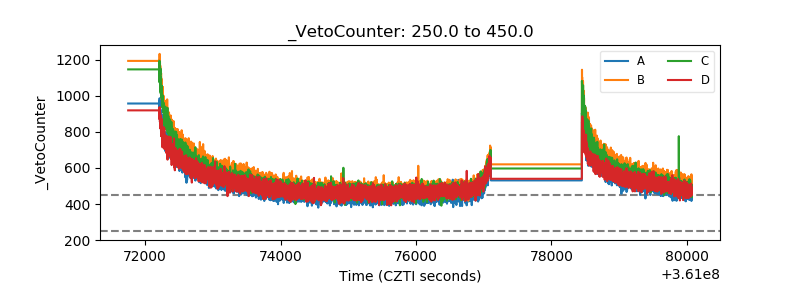

| Veto Counter |  |
