| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T38_9000004454_30835cztM0_level2.evt | modeM0/AS1A10_071T38_9000004454_30835cztM0_level2_quad_clean.evt |
| Size (bytes) | 609,874,560 | 82,388,160 |
| Size | 581.6 MB | 78.6 MB |
| Events in quadrant A | 3,557,726 | 516,050 |
| Events in quadrant B | 5,840,888 | 512,779 |
| Events in quadrant C | 3,825,899 | 487,086 |
| Events in quadrant D | 4,762,340 | 481,604 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14772 | 2 |
| B | 0 | 22304 | 2 |
| C | 0 | 15434 | 2 |
| D | 0 | 18948 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7136 | 159 | 2.228139% |
| B | 7136 | 327 | 4.582399% |
| C | 7136 | 225 | 3.153027% |
| D | 7136 | 158 | 2.214126% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7671 | 7136 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7671 | 7136 | 58 | 58 | 0.76% | 0.81% |  |
| C | 7671 | 7136 | 9 | 9 | 0.12% | 0.13% |  |
| D | 7671 | 7136 | 36 | 36 | 0.47% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12509 | 61.85 | 921 | 902 | 187.7 |
| A | 3 | 137 | 9320 | 44.86 | 921 | 902 | 187.7 |
| A | 0 | 226 | 7901 | 37.3 | 921 | 902 | 187.7 |
| B | 6 | 159 | 1934755 | 11189.31 | 902 | 878 | 172.8 |
| B | 5 | 255 | 154875 | 891.02 | 902 | 878 | 172.8 |
| B | 5 | 172 | 129242 | 742.7 | 902 | 878 | 172.8 |
| C | 14 | 238 | 155210 | 749.31 | 870 | 877 | 206.0 |
| C | 0 | 10 | 114342 | 550.89 | 870 | 877 | 206.0 |
| C | 3 | 233 | 91892 | 441.89 | 870 | 877 | 206.0 |
| D | 8 | 195 | 1064827 | 5080.7 | 879 | 859 | 209.4 |
| D | 1 | 52 | 187497 | 891.24 | 879 | 859 | 209.4 |
| D | 12 | 218 | 59233 | 278.75 | 879 | 859 | 209.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

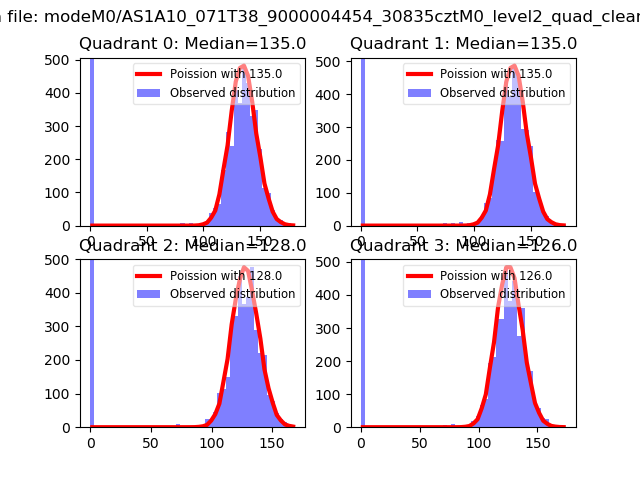

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

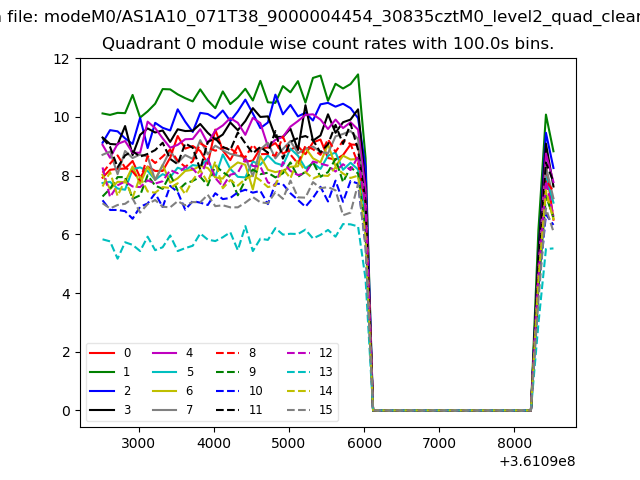

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

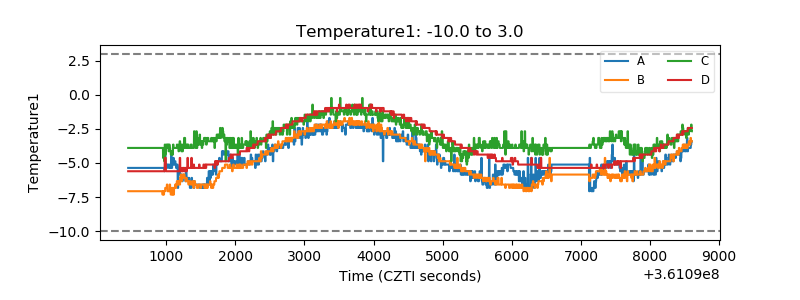

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

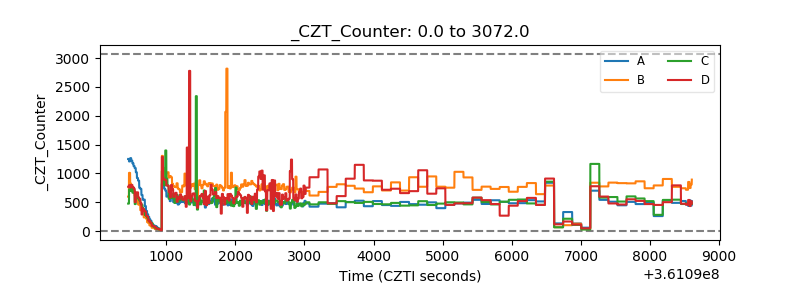

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

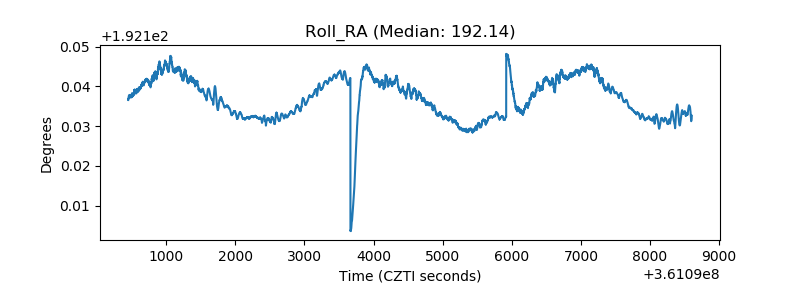

| _Roll_RA |  |
| Veto Counter |  |
