| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T46_9000004460_30859cztM0_level2.evt | modeM0/AS1A10_071T46_9000004460_30859cztM0_level2_quad_clean.evt |
| Size (bytes) | 680,160,960 | 89,323,200 |
| Size | 648.7 MB | 85.2 MB |
| Events in quadrant A | 3,309,624 | 591,557 |
| Events in quadrant B | 9,630,991 | 569,904 |
| Events in quadrant C | 3,586,304 | 554,043 |
| Events in quadrant D | 3,645,737 | 548,992 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13616 | 2 |
| B | 0 | 33034 | 2 |
| C | 0 | 14548 | 2 |
| D | 0 | 14974 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6307 | 27 | 0.428096% |
| B | 6307 | 1732 | 27.461551% |
| C | 6306 | 142 | 2.251824% |
| D | 6306 | 14 | 0.222011% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7587 | 6308 | 14 | 14 | 0.18% | 0.22% |  |
| B | 7586 | 6307 | 1138 | 1138 | 15.00% | 18.04% |  |
| C | 7586 | 6307 | 56 | 56 | 0.74% | 0.89% |  |
| D | 7586 | 6307 | 8 | 8 | 0.11% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 79411 | 472.18 | 837 | 822 | 166.4 |
| A | 13 | 254 | 12647 | 71.05 | 837 | 822 | 166.4 |
| A | 3 | 137 | 7859 | 42.28 | 837 | 822 | 166.4 |
| B | 6 | 36 | 4695298 | 31436.3 | 791 | 773 | 149.3 |
| B | 6 | 159 | 1768669 | 11838.49 | 791 | 773 | 149.3 |
| B | 5 | 172 | 19140 | 122.99 | 791 | 773 | 149.3 |
| C | 0 | 10 | 196026 | 1058.09 | 791 | 798 | 184.5 |
| C | 14 | 238 | 127946 | 689.11 | 791 | 798 | 184.5 |
| C | 3 | 233 | 103827 | 558.39 | 791 | 798 | 184.5 |
| D | 8 | 195 | 478776 | 2540.32 | 792 | 773 | 188.2 |
| D | 2 | 250 | 87787 | 462.43 | 792 | 773 | 188.2 |
| D | 1 | 52 | 34582 | 179.68 | 792 | 773 | 188.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

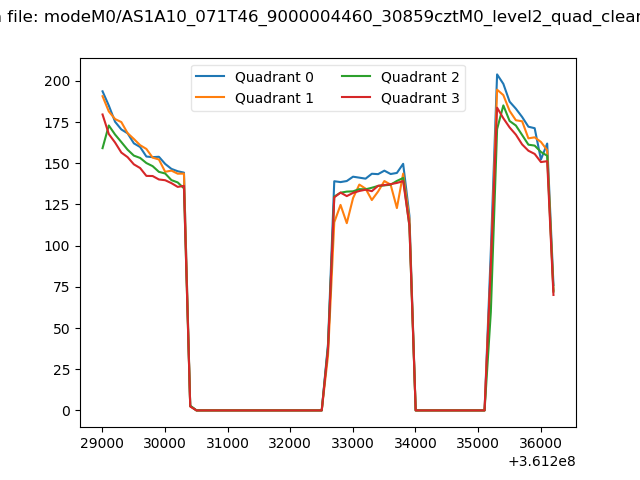

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

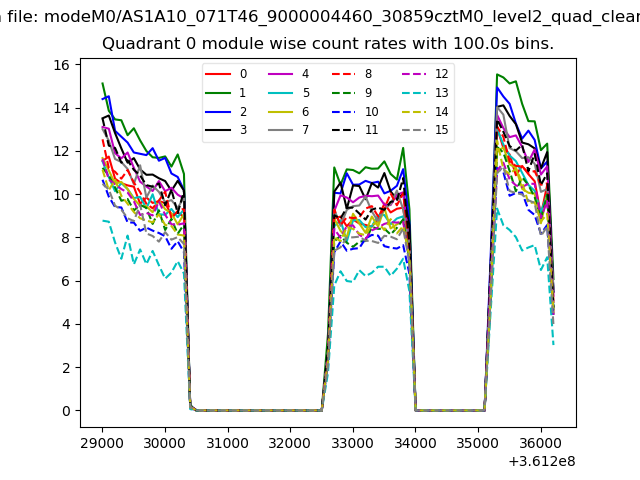

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

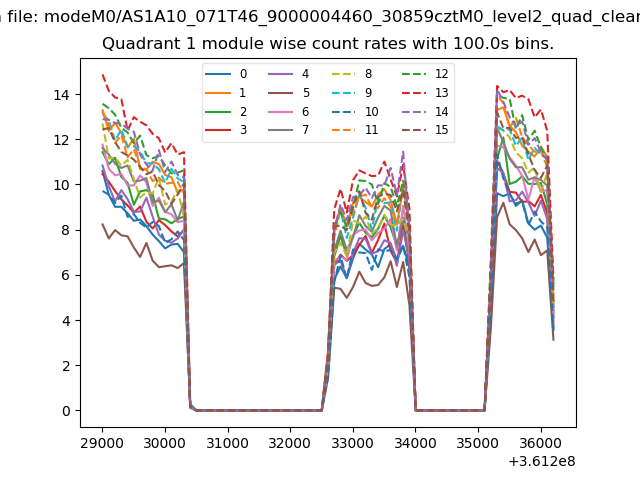

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

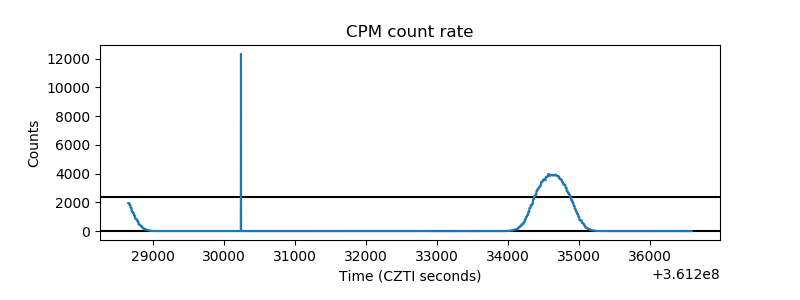

| _CPM_Rate |  |

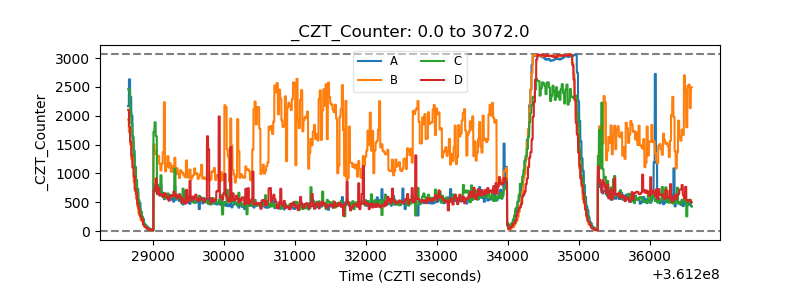

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

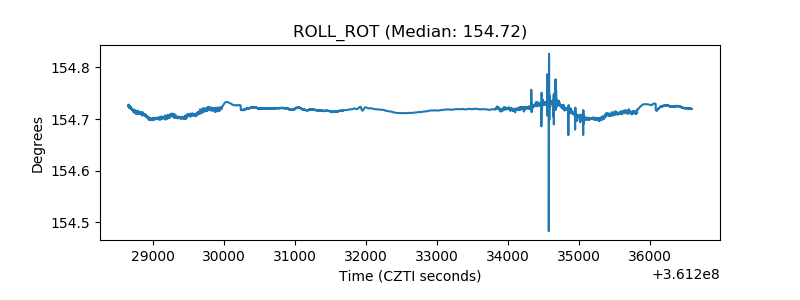

| _ROLL_ROT |  |

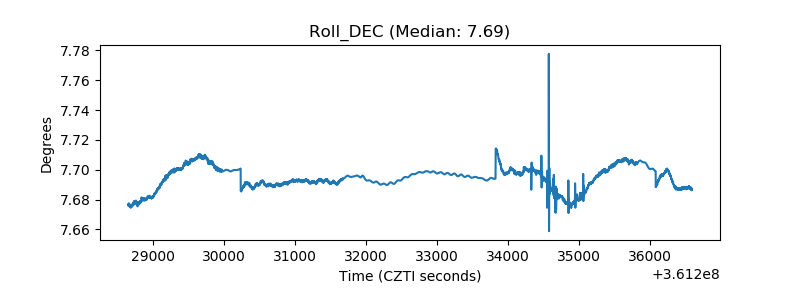

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
