| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T46_9000004460_30861cztM0_level2.evt | modeM0/AS1A10_071T46_9000004460_30861cztM0_level2_quad_clean.evt |
| Size (bytes) | 689,610,240 | 73,244,160 |
| Size | 657.7 MB | 69.9 MB |
| Events in quadrant A | 3,424,900 | 471,245 |
| Events in quadrant B | 9,501,653 | 445,033 |
| Events in quadrant C | 3,756,413 | 435,557 |
| Events in quadrant D | 3,783,665 | 432,817 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13678 | 2 |
| B | 0 | 32508 | 2 |
| C | 0 | 14887 | 2 |
| D | 0 | 15251 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6200 | 62 | 1.000000% |
| B | 6200 | 1417 | 22.854839% |
| C | 6200 | 164 | 2.645161% |
| D | 6200 | 77 | 1.241935% |

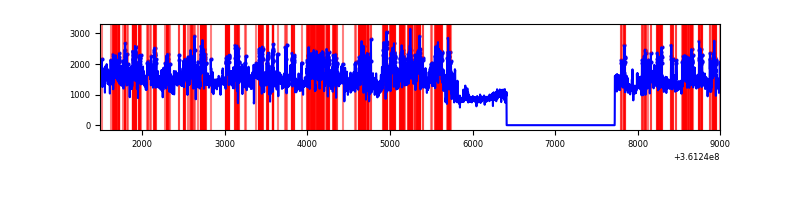

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7510 | 6200 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7510 | 6200 | 714 | 714 | 9.51% | 11.52% |  |
| C | 7510 | 6200 | 22 | 22 | 0.29% | 0.35% |  |
| D | 7510 | 6201 | 42 | 42 | 0.56% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 45602 | 257.2 | 876 | 863 | 173.9 |
| A | 13 | 254 | 11402 | 60.59 | 876 | 863 | 173.9 |
| A | 3 | 137 | 8089 | 41.54 | 876 | 863 | 173.9 |
| B | 6 | 36 | 4449968 | 28314.94 | 839 | 821 | 157.1 |
| B | 6 | 159 | 1698790 | 10806.09 | 839 | 821 | 157.1 |
| B | 0 | 230 | 29265 | 181.02 | 839 | 821 | 157.1 |
| C | 2 | 16 | 229589 | 1217.17 | 816 | 824 | 187.9 |
| C | 14 | 238 | 135103 | 714.45 | 816 | 824 | 187.9 |
| C | 0 | 10 | 114322 | 603.88 | 816 | 824 | 187.9 |
| D | 8 | 195 | 416148 | 2149.66 | 818 | 800 | 193.2 |
| D | 2 | 250 | 207865 | 1071.68 | 818 | 800 | 193.2 |
| D | 2 | 234 | 24365 | 121.96 | 818 | 800 | 193.2 |

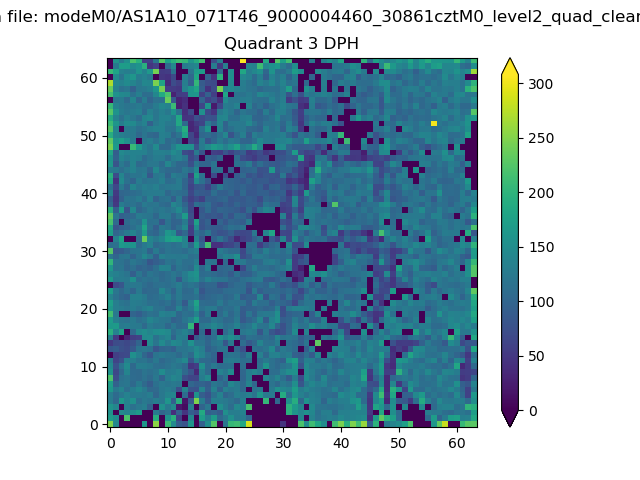

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

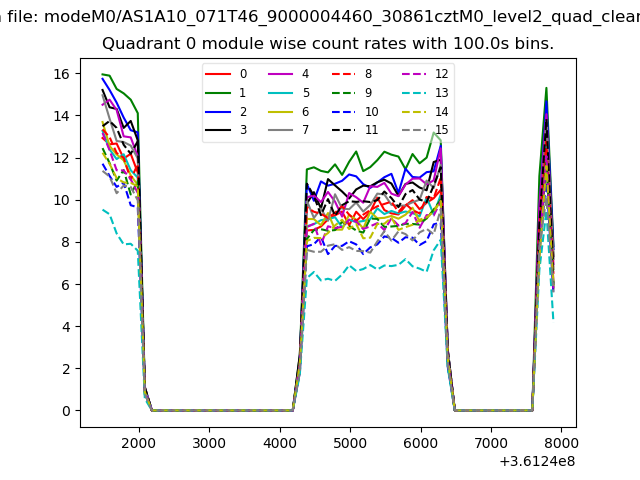

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

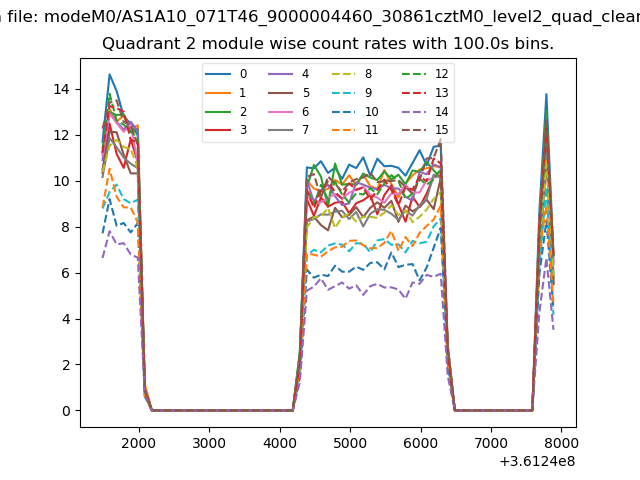

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

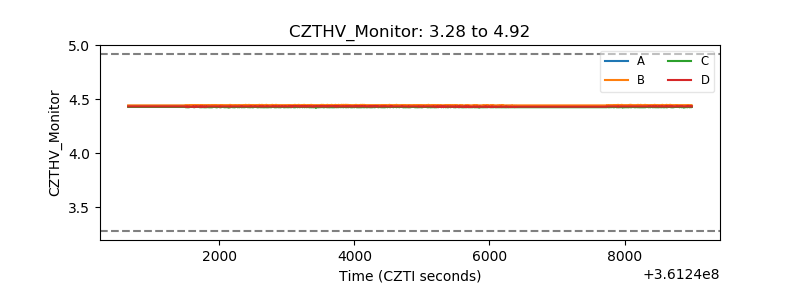

| CZT HV Monitor |  |

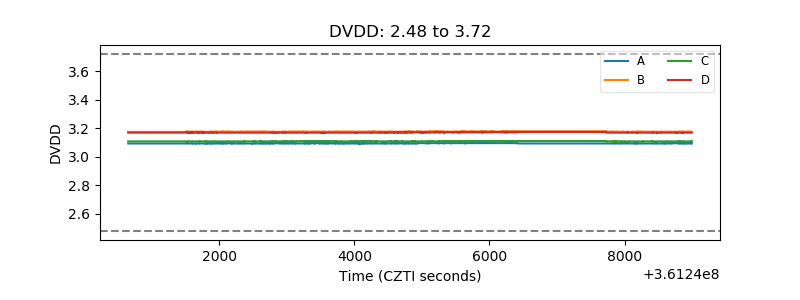

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

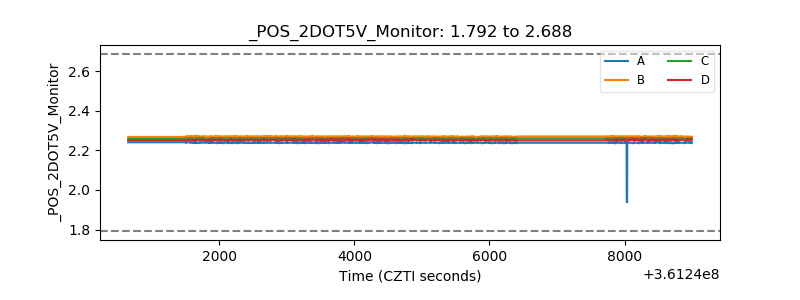

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

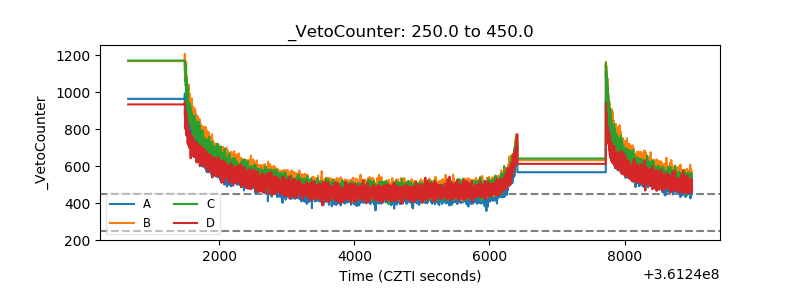

| Veto Counter |  |
