| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T49_9000004462_30872cztM0_level2.evt | modeM0/AS1A10_071T49_9000004462_30872cztM0_level2_quad_clean.evt |
| Size (bytes) | 691,421,760 | 93,908,160 |
| Size | 659.4 MB | 89.6 MB |
| Events in quadrant A | 3,930,987 | 612,535 |
| Events in quadrant B | 9,084,417 | 590,838 |
| Events in quadrant C | 3,629,525 | 594,044 |
| Events in quadrant D | 3,849,815 | 586,248 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16041 | 2 |
| B | 0 | 31505 | 2 |
| C | 0 | 14954 | 2 |
| D | 0 | 15720 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6594 | 226 | 3.427358% |
| B | 6594 | 1145 | 17.364271% |
| C | 6594 | 111 | 1.683348% |
| D | 6594 | 52 | 0.788596% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7679 | 6594 | 162 | 162 | 2.11% | 2.46% |  |
| B | 7679 | 6594 | 476 | 476 | 6.20% | 7.22% |  |
| C | 7679 | 6594 | 13 | 13 | 0.17% | 0.20% |  |
| D | 7679 | 6594 | 24 | 24 | 0.31% | 0.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 771309 | 4684.98 | 818 | 802 | 164.5 |
| A | 13 | 254 | 12468 | 70.93 | 818 | 802 | 164.5 |
| A | 3 | 137 | 8207 | 45.03 | 818 | 802 | 164.5 |
| B | 6 | 36 | 3860047 | 25088.34 | 796 | 776 | 153.8 |
| B | 6 | 159 | 1853048 | 12041.24 | 796 | 776 | 153.8 |
| B | 5 | 172 | 101066 | 651.96 | 796 | 776 | 153.8 |
| C | 2 | 16 | 233437 | 1246.77 | 791 | 796 | 186.6 |
| C | 14 | 238 | 128081 | 682.15 | 791 | 796 | 186.6 |
| C | 8 | 229 | 72057 | 381.9 | 791 | 796 | 186.6 |
| D | 8 | 195 | 614853 | 3270.57 | 794 | 778 | 187.8 |
| D | 2 | 250 | 131274 | 695.02 | 794 | 778 | 187.8 |
| D | 1 | 52 | 36481 | 190.15 | 794 | 778 | 187.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

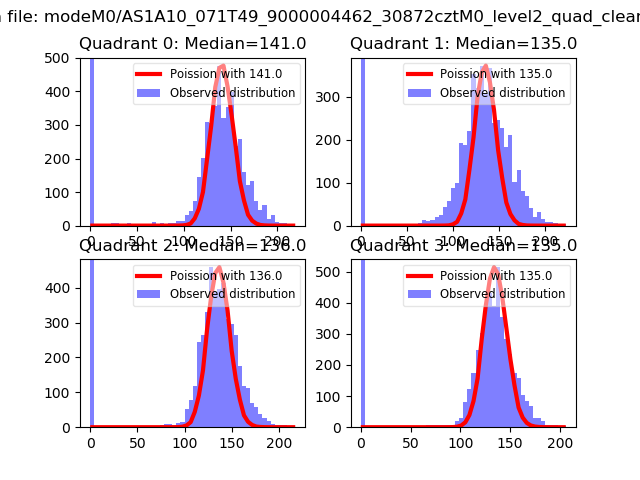

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

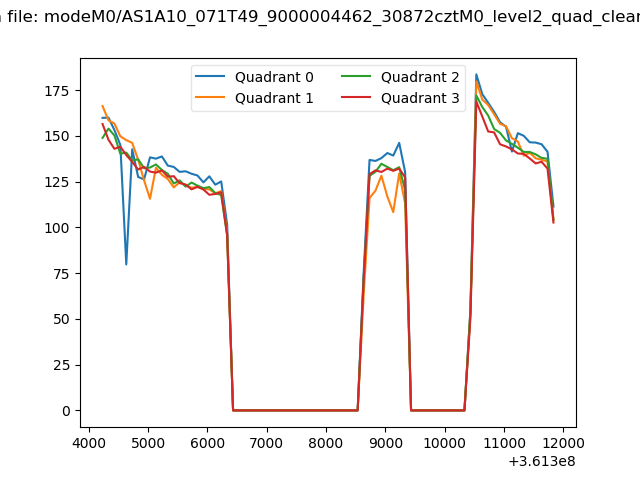

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

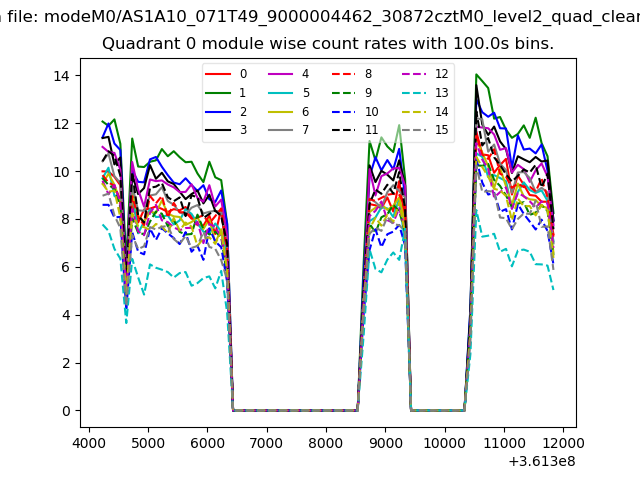

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

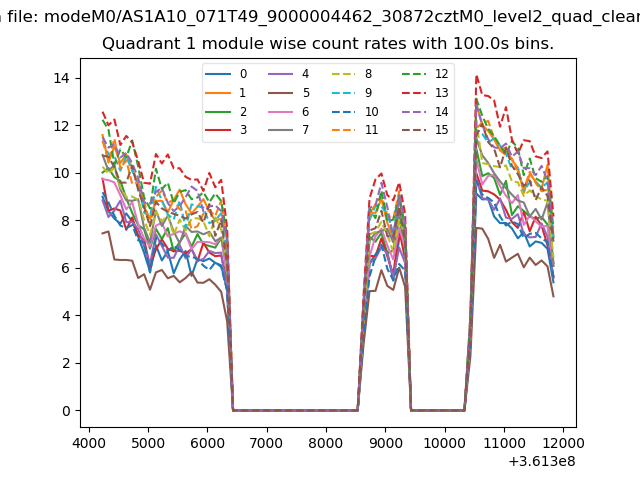

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

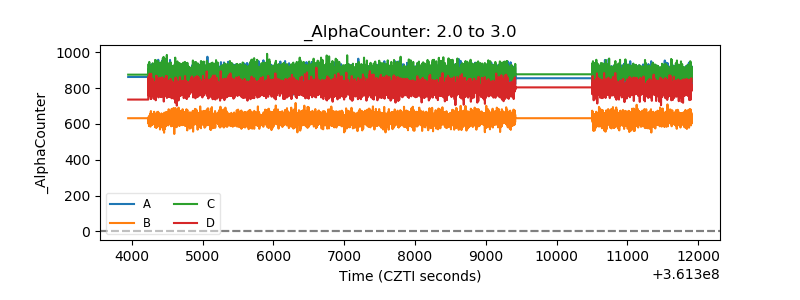

| Alpha Counter |  |
| _CPM_Rate |  |

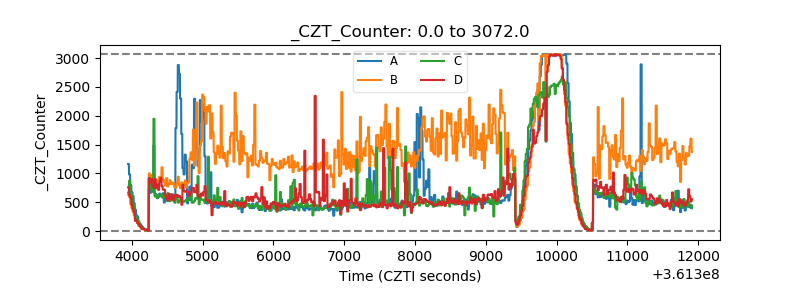

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

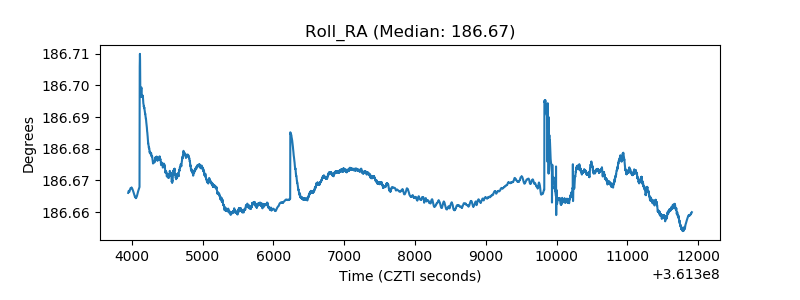

| _Roll_RA |  |
| Veto Counter |  |
