| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T49_9000004462_30876cztM0_level2.evt | modeM0/AS1A10_071T49_9000004462_30876cztM0_level2_quad_clean.evt |
| Size (bytes) | 701,447,040 | 71,709,120 |
| Size | 669.0 MB | 68.4 MB |
| Events in quadrant A | 3,739,170 | 454,268 |
| Events in quadrant B | 9,039,353 | 434,971 |
| Events in quadrant C | 4,067,320 | 412,030 |
| Events in quadrant D | 3,957,610 | 415,371 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14722 | 2 |
| B | 0 | 31650 | 2 |
| C | 0 | 15755 | 2 |
| D | 0 | 16021 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6513 | 170 | 2.610164% |
| B | 6513 | 1778 | 27.299248% |
| C | 6513 | 289 | 4.437279% |
| D | 6513 | 90 | 1.381852% |

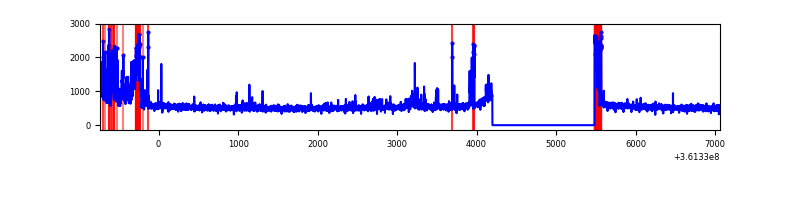

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7798 | 6514 | 105 | 105 | 1.35% | 1.61% |  |
| B | 7797 | 6512 | 1362 | 1362 | 17.47% | 20.92% |  |
| C | 7798 | 6513 | 111 | 111 | 1.42% | 1.70% |  |
| D | 7798 | 6514 | 47 | 47 | 0.60% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 270505 | 1513.98 | 900 | 885 | 178.1 |
| A | 13 | 254 | 11289 | 58.42 | 900 | 885 | 178.1 |
| A | 3 | 137 | 8357 | 41.95 | 900 | 885 | 178.1 |
| B | 6 | 36 | 3936065 | 25588.79 | 818 | 800 | 153.8 |
| B | 6 | 159 | 1684436 | 10947.73 | 818 | 800 | 153.8 |
| B | 10 | 247 | 89910 | 579.43 | 818 | 800 | 153.8 |
| C | 3 | 233 | 366404 | 1880.45 | 838 | 845 | 194.4 |
| C | 0 | 10 | 146751 | 750.55 | 838 | 845 | 194.4 |
| C | 14 | 238 | 136488 | 697.75 | 838 | 845 | 194.4 |
| D | 8 | 195 | 450302 | 2254.2 | 843 | 827 | 199.4 |
| D | 12 | 233 | 160792 | 802.25 | 843 | 827 | 199.4 |
| D | 2 | 250 | 91782 | 456.16 | 843 | 827 | 199.4 |

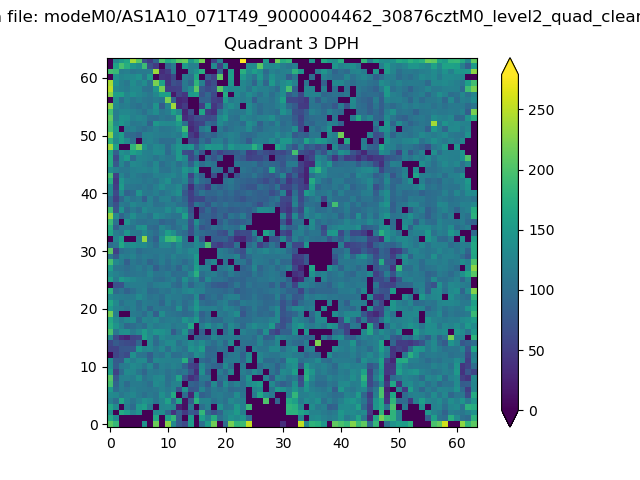

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

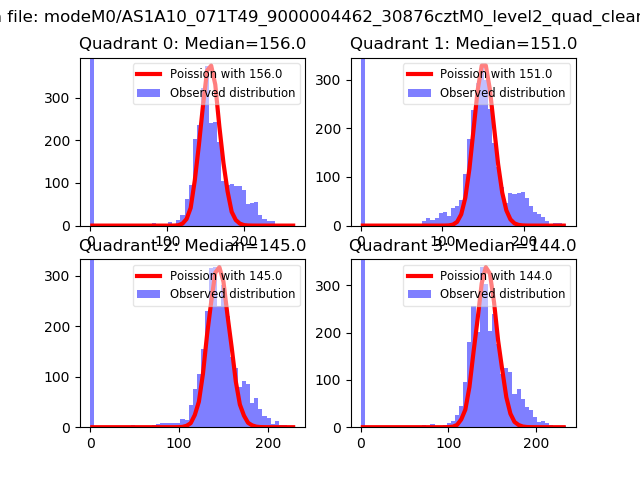

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

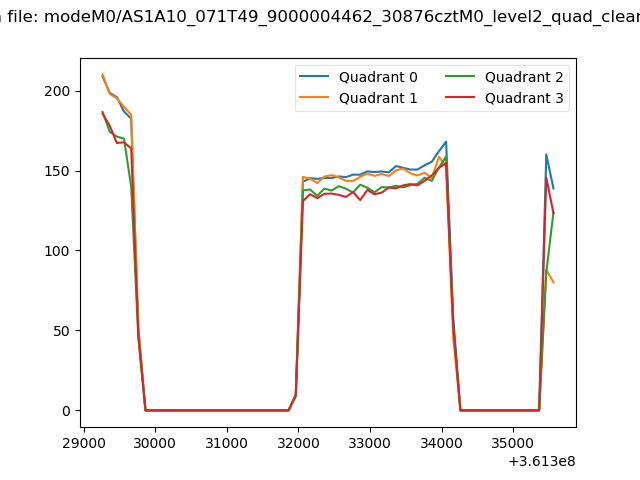

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

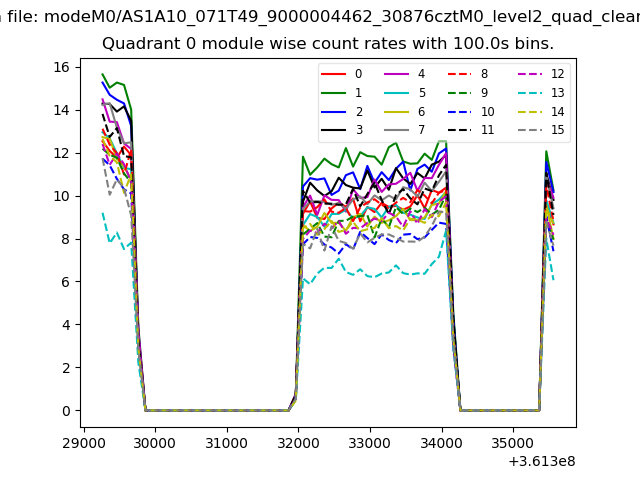

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

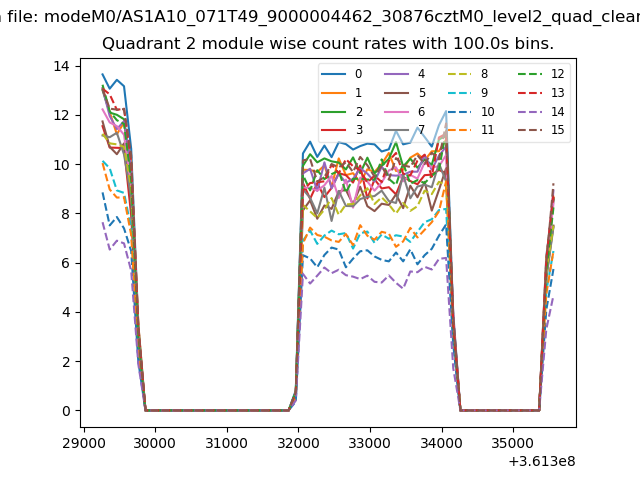

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

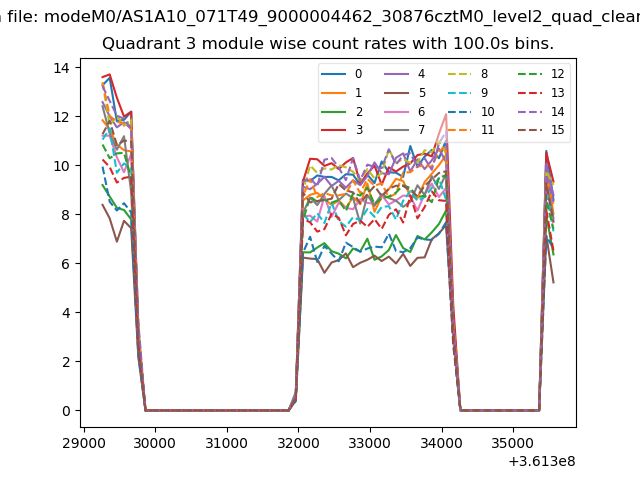

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

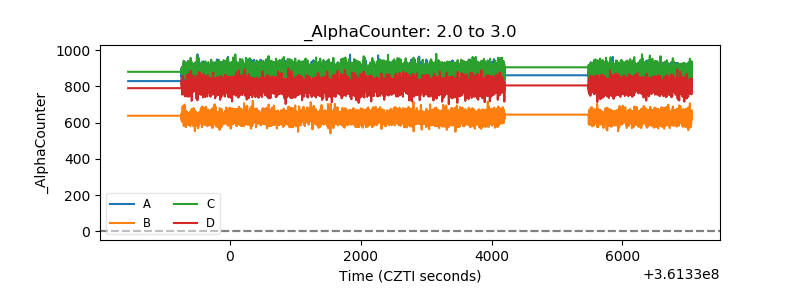

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
