| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T49_9000004462_30877cztM0_level2.evt | modeM0/AS1A10_071T49_9000004462_30877cztM0_level2_quad_clean.evt |
| Size (bytes) | 857,738,880 | 63,146,880 |
| Size | 818.0 MB | 60.2 MB |
| Events in quadrant A | 3,785,384 | 415,028 |
| Events in quadrant B | 14,226,184 | 258,878 |
| Events in quadrant C | 3,678,300 | 385,152 |
| Events in quadrant D | 3,834,662 | 386,340 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15006 | 2 |
| B | 0 | 46807 | 2 |
| C | 0 | 14669 | 3 |
| D | 0 | 15441 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6674 | 172 | 2.577165% |
| B | 6674 | 5863 | 87.848367% |
| C | 6673 | 184 | 2.757380% |
| D | 6673 | 65 | 0.974075% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

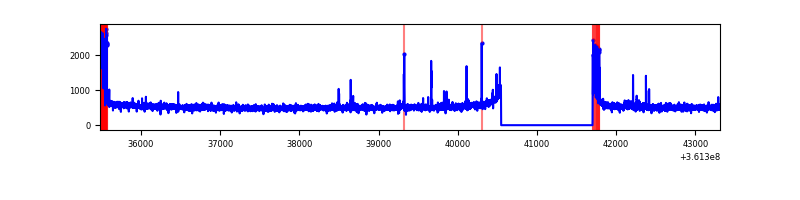

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7829 | 6675 | 106 | 106 | 1.35% | 1.59% |  |
| B | 7828 | 6673 | 5215 | 5215 | 66.62% | 78.15% |  |
| C | 7828 | 6674 | 62 | 62 | 0.79% | 0.93% |  |
| D | 7828 | 6674 | 41 | 41 | 0.52% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 335476 | 1867.49 | 895 | 880 | 179.2 |
| A | 13 | 254 | 12369 | 64.12 | 895 | 880 | 179.2 |
| A | 3 | 137 | 8582 | 42.99 | 895 | 880 | 179.2 |
| B | 6 | 36 | 10737629 | 101171.12 | 558 | 547 | 106.1 |
| B | 6 | 159 | 1196172 | 11265.88 | 558 | 547 | 106.1 |
| B | 0 | 190 | 35401 | 328.41 | 558 | 547 | 106.1 |
| C | 0 | 10 | 228310 | 1170.06 | 835 | 841 | 194.4 |
| C | 14 | 238 | 136671 | 698.69 | 835 | 841 | 194.4 |
| C | 2 | 16 | 21570 | 106.63 | 835 | 841 | 194.4 |
| D | 8 | 195 | 406993 | 2025.78 | 845 | 826 | 200.5 |
| D | 12 | 233 | 111491 | 551.95 | 845 | 826 | 200.5 |
| D | 2 | 250 | 85369 | 421.66 | 845 | 826 | 200.5 |

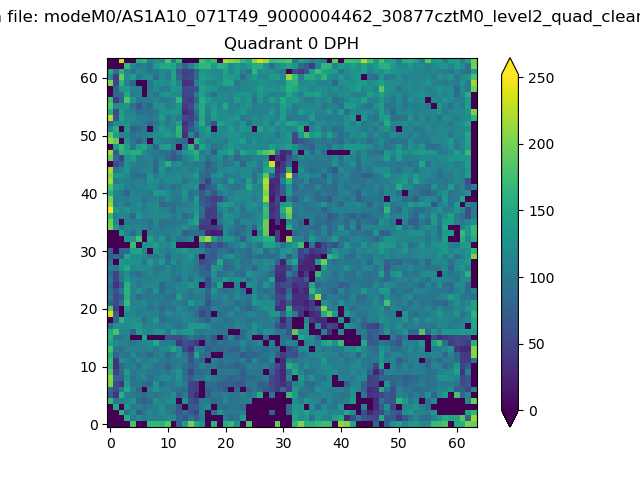

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

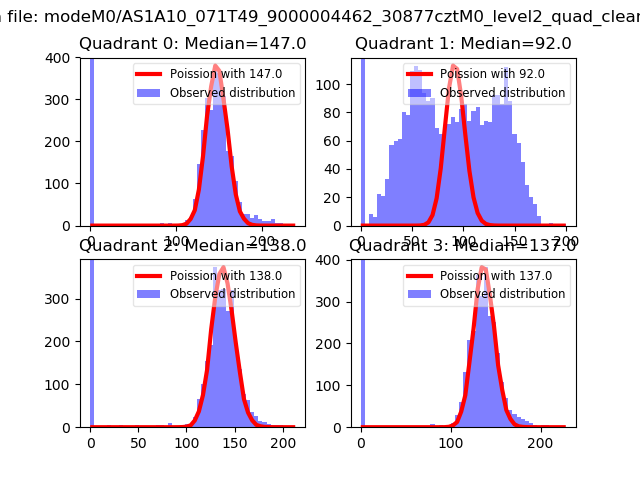

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

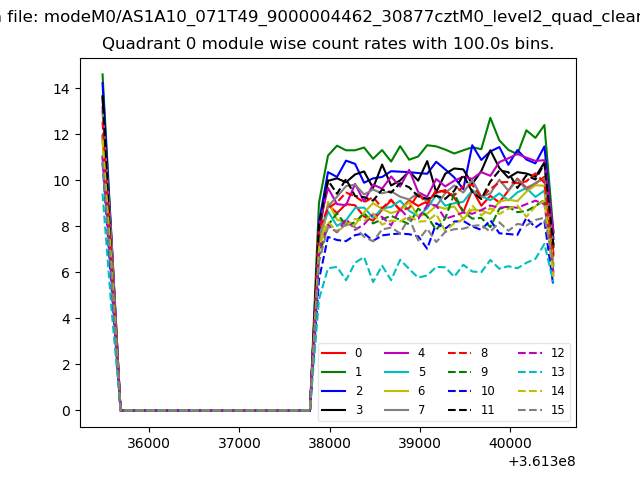

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

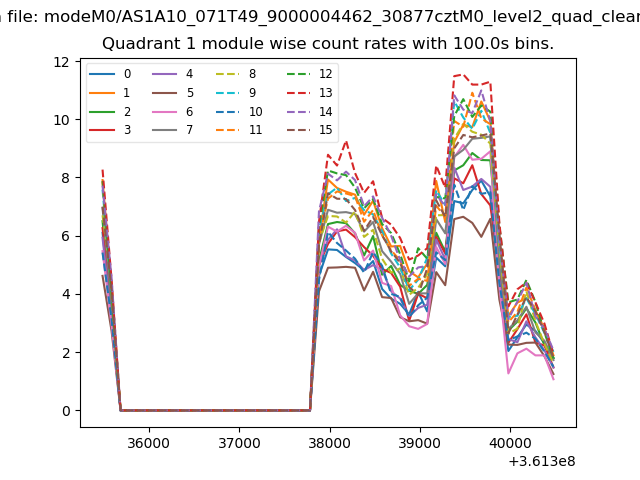

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

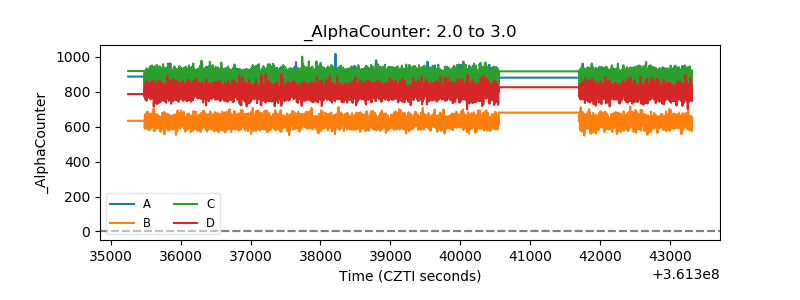

| Alpha Counter |  |

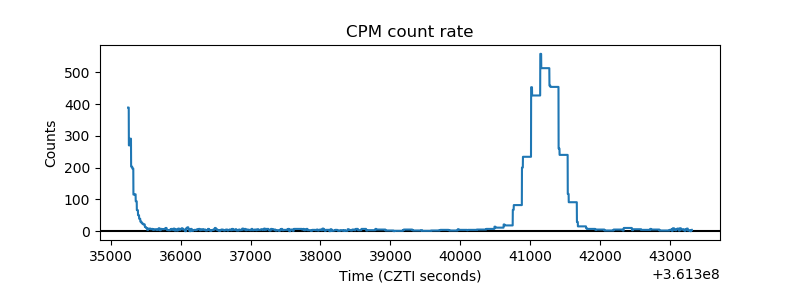

| _CPM_Rate |  |

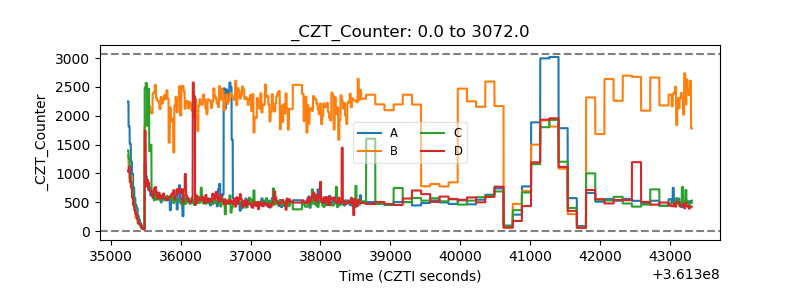

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
