| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T49_9000004462_30879cztM0_level2.evt | modeM0/AS1A10_071T49_9000004462_30879cztM0_level2_quad_clean.evt |
| Size (bytes) | 905,993,280 | 75,386,880 |
| Size | 864.0 MB | 71.9 MB |
| Events in quadrant A | 3,823,724 | 509,582 |
| Events in quadrant B | 15,101,880 | 301,371 |
| Events in quadrant C | 3,791,055 | 484,836 |
| Events in quadrant D | 4,228,329 | 478,714 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15896 | 2 |
| B | 0 | 49859 | 2 |
| C | 0 | 15531 | 2 |
| D | 0 | 16994 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7275 | 301 | 4.137457% |
| B | 7276 | 6163 | 84.703134% |
| C | 7276 | 284 | 3.903244% |
| D | 7276 | 206 | 2.831226% |

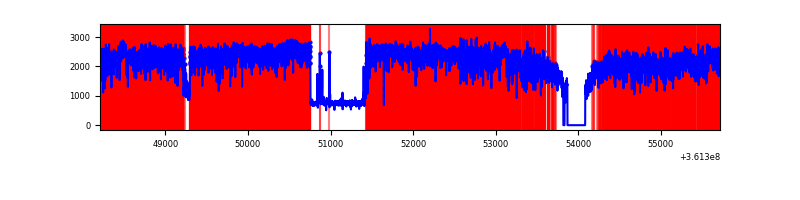

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7505 | 7275 | 27 | 27 | 0.36% | 0.37% |  |
| B | 7505 | 7275 | 4913 | 4913 | 65.46% | 67.53% |  |
| C | 7506 | 7276 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7506 | 7276 | 14 | 14 | 0.19% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 280874 | 1508.31 | 918 | 899 | 185.6 |
| A | 13 | 254 | 13270 | 66.65 | 918 | 899 | 185.6 |
| A | 3 | 137 | 9604 | 46.9 | 918 | 899 | 185.6 |
| B | 6 | 36 | 11120165 | 92443.0 | 616 | 600 | 120.3 |
| B | 6 | 159 | 1409860 | 11715.95 | 616 | 600 | 120.3 |
| B | 0 | 190 | 42491 | 348.26 | 616 | 600 | 120.3 |
| C | 3 | 233 | 161405 | 781.2 | 876 | 884 | 205.5 |
| C | 14 | 238 | 143112 | 692.18 | 876 | 884 | 205.5 |
| C | 0 | 10 | 31791 | 150.41 | 876 | 884 | 205.5 |
| D | 8 | 195 | 562631 | 2669.99 | 885 | 863 | 210.4 |
| D | 12 | 233 | 187483 | 886.97 | 885 | 863 | 210.4 |
| D | 2 | 250 | 63932 | 299.76 | 885 | 863 | 210.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

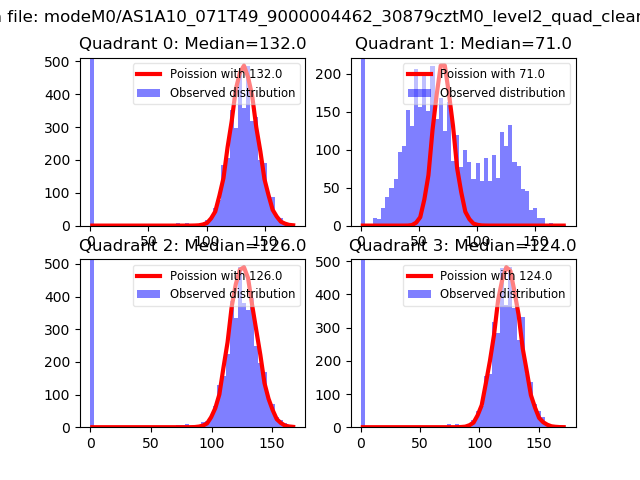

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

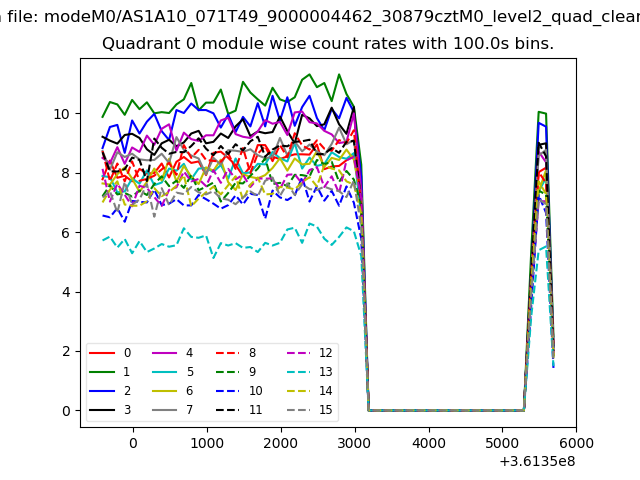

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

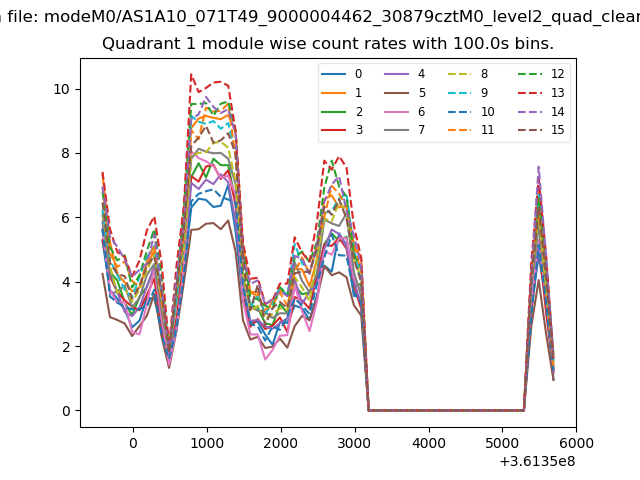

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

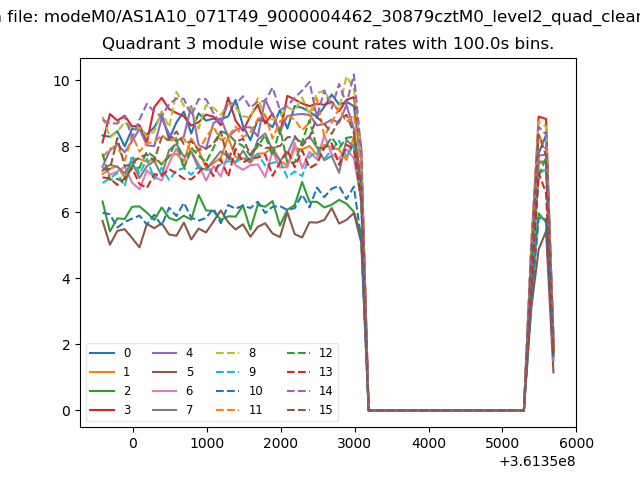

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

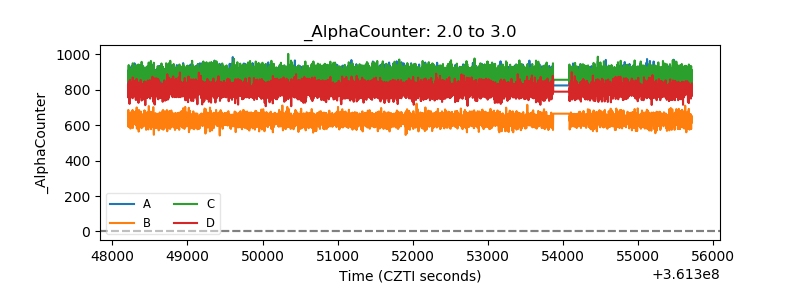

| Alpha Counter |  |
| _CPM_Rate |  |

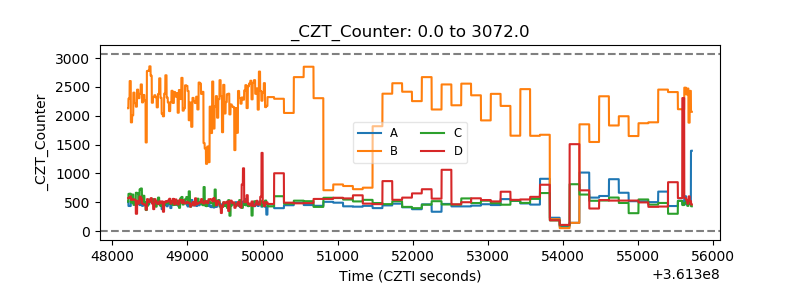

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

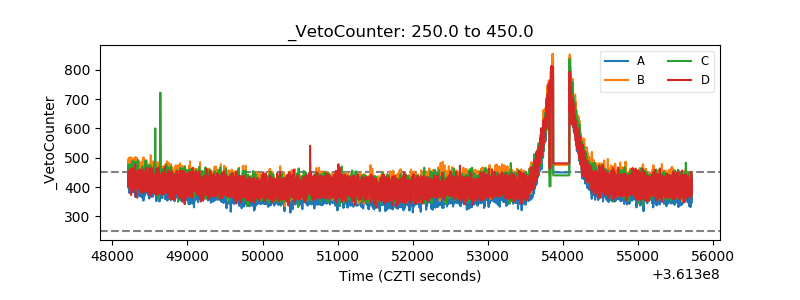

| Veto Counter |  |
