| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T28_9000004464_30881cztM0_level2.evt | modeM0/AS1A10_071T28_9000004464_30881cztM0_level2_quad_clean.evt |
| Size (bytes) | 270,138,240 | 28,198,080 |
| Size | 257.6 MB | 26.9 MB |
| Events in quadrant A | 1,643,539 | 162,296 |
| Events in quadrant B | 2,598,045 | 162,121 |
| Events in quadrant C | 1,703,309 | 153,479 |
| Events in quadrant D | 2,021,807 | 152,363 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6679 | 2 |
| B | 0 | 9817 | 2 |
| C | 0 | 6818 | 2 |
| D | 0 | 8037 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 66 | 0 |
| B | 0 | 66 | 0 |
| C | 0 | 66 | 0 |
| D | 0 | 66 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3130 | 145 | 4.632588% |
| B | 3130 | 239 | 7.635783% |
| C | 3130 | 183 | 5.846645% |
| D | 3130 | 160 | 5.111821% |

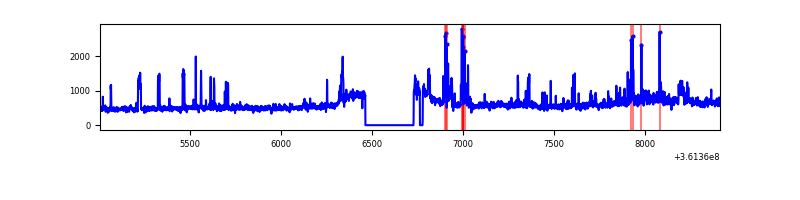

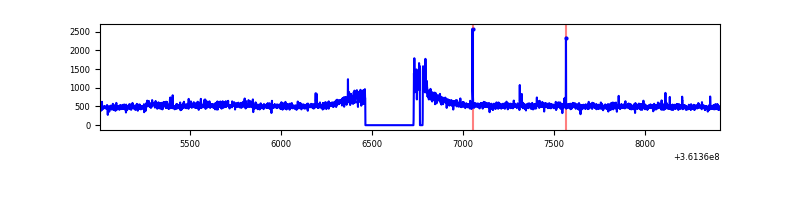

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3410 | 3131 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3410 | 3130 | 1 | 1 | 0.03% | 0.03% |  |
| C | 3410 | 3130 | 2 | 2 | 0.06% | 0.06% |  |
| D | 3410 | 3130 | 14 | 14 | 0.41% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 31 | 23867 | 267.88 | 418 | 408 | 87.6 |
| A | 13 | 254 | 5510 | 58.26 | 418 | 408 | 87.6 |
| A | 3 | 137 | 4588 | 47.73 | 418 | 408 | 87.6 |
| B | 6 | 159 | 848656 | 10202.97 | 410 | 398 | 83.1 |
| B | 6 | 36 | 69208 | 827.66 | 410 | 398 | 83.1 |
| B | 0 | 190 | 31930 | 379.27 | 410 | 398 | 83.1 |
| C | 14 | 238 | 62178 | 642.06 | 398 | 399 | 96.2 |
| C | 0 | 10 | 36161 | 371.67 | 398 | 399 | 96.2 |
| C | 3 | 233 | 25991 | 265.97 | 398 | 399 | 96.2 |
| D | 8 | 195 | 236680 | 2408.15 | 404 | 393 | 98.1 |
| D | 1 | 52 | 138955 | 1412.17 | 404 | 393 | 98.1 |
| D | 12 | 233 | 73771 | 747.84 | 404 | 393 | 98.1 |

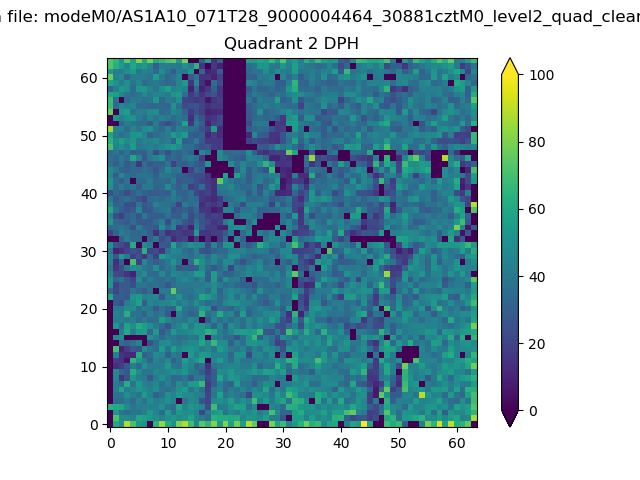

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

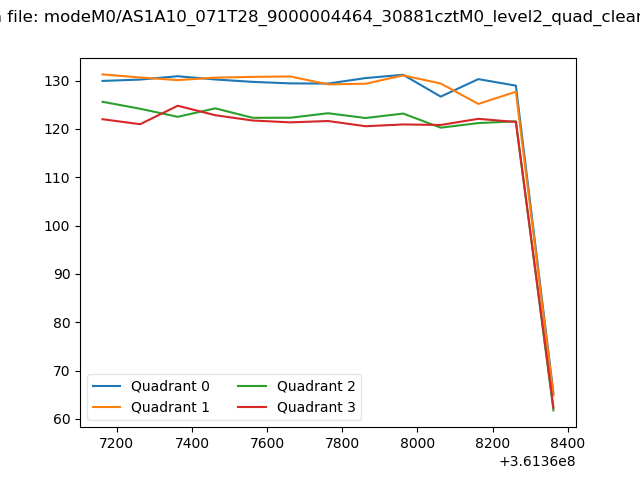

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

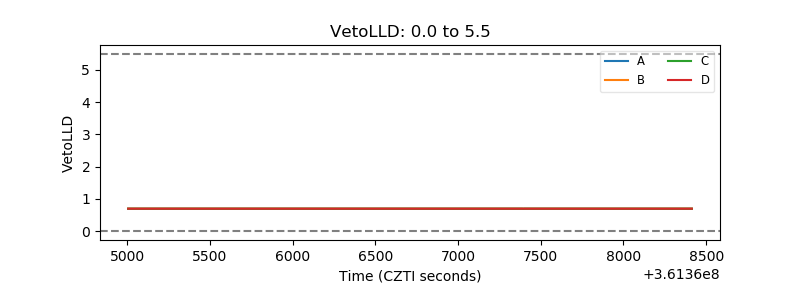

| Veto LLD |  |
| Alpha Counter |  |

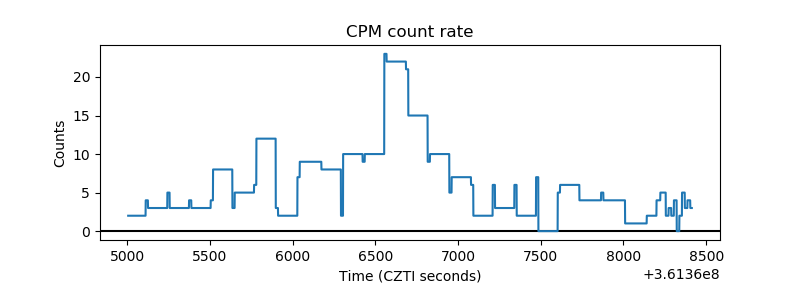

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

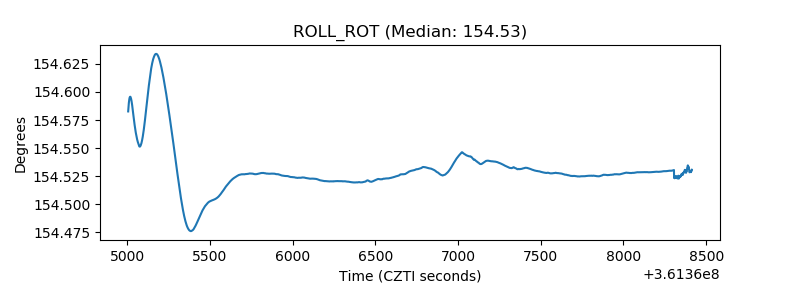

| _ROLL_ROT |  |
