| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T28_9000004464_30890cztM0_level2.evt | modeM0/AS1A10_071T28_9000004464_30890cztM0_level2_quad_clean.evt |
| Size (bytes) | 584,763,840 | 80,196,480 |
| Size | 557.7 MB | 76.5 MB |
| Events in quadrant A | 3,389,488 | 522,612 |
| Events in quadrant B | 6,139,686 | 518,469 |
| Events in quadrant C | 3,633,171 | 478,109 |
| Events in quadrant D | 4,122,106 | 470,233 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13595 | 2 |
| B | 0 | 22172 | 2 |
| C | 0 | 14385 | 3 |
| D | 0 | 16280 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6286 | 59 | 0.938594% |
| B | 6286 | 290 | 4.613427% |
| C | 6285 | 274 | 4.359586% |
| D | 6285 | 122 | 1.941130% |

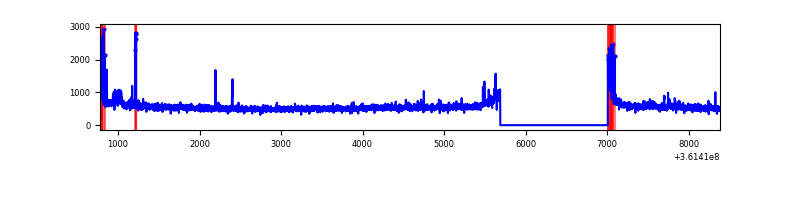

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

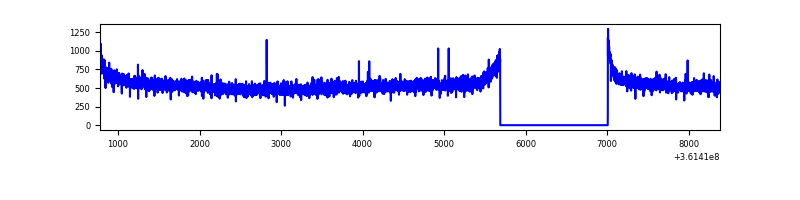

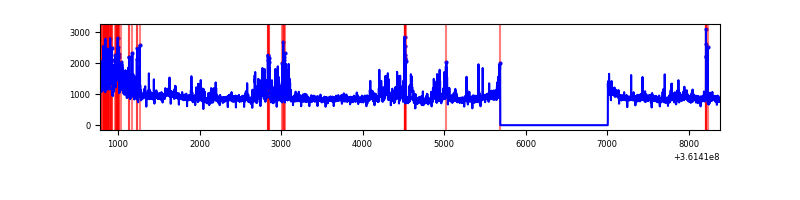

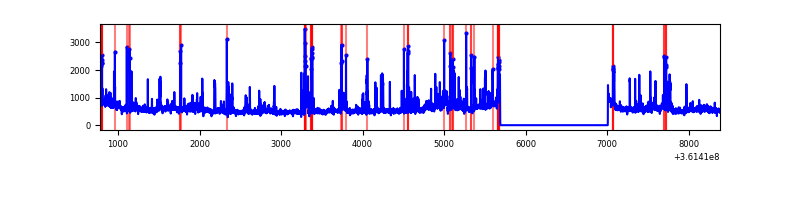

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7606 | 6286 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7606 | 6286 | 79 | 79 | 1.04% | 1.26% |  |
| C | 7605 | 6285 | 33 | 33 | 0.43% | 0.53% |  |
| D | 7605 | 6286 | 75 | 75 | 0.99% | 1.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10745 | 56.9 | 879 | 867 | 173.6 |
| A | 3 | 137 | 8186 | 42.16 | 879 | 867 | 173.6 |
| A | 0 | 226 | 7453 | 37.93 | 879 | 867 | 173.6 |
| B | 6 | 159 | 1800009 | 11117.18 | 866 | 848 | 161.8 |
| B | 6 | 36 | 755574 | 4663.52 | 866 | 848 | 161.8 |
| B | 0 | 190 | 65387 | 398.79 | 866 | 848 | 161.8 |
| C | 14 | 238 | 161207 | 843.46 | 816 | 824 | 190.1 |
| C | 0 | 10 | 157242 | 822.61 | 816 | 824 | 190.1 |
| C | 1 | 16 | 37898 | 194.97 | 816 | 824 | 190.1 |
| D | 8 | 195 | 491762 | 2577.42 | 813 | 795 | 190.5 |
| D | 12 | 218 | 263555 | 1379.41 | 813 | 795 | 190.5 |
| D | 13 | 174 | 72037 | 374.0 | 813 | 795 | 190.5 |

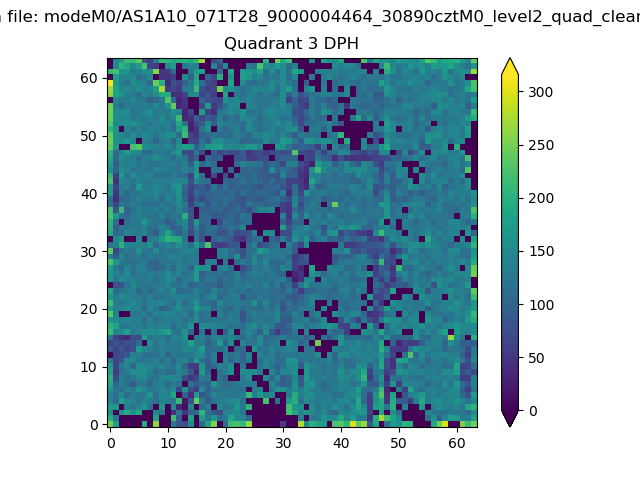

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

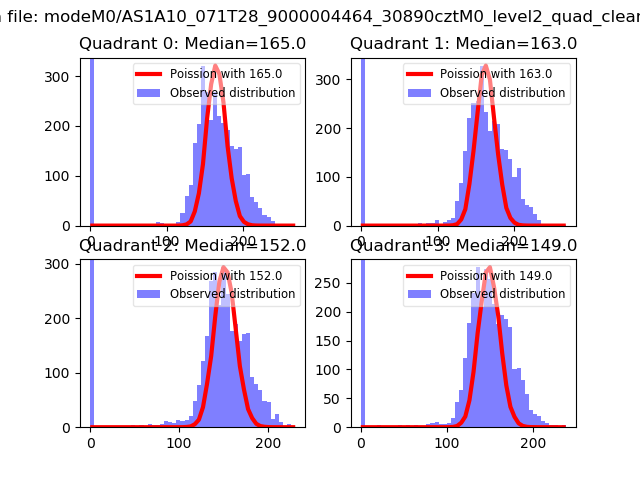

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

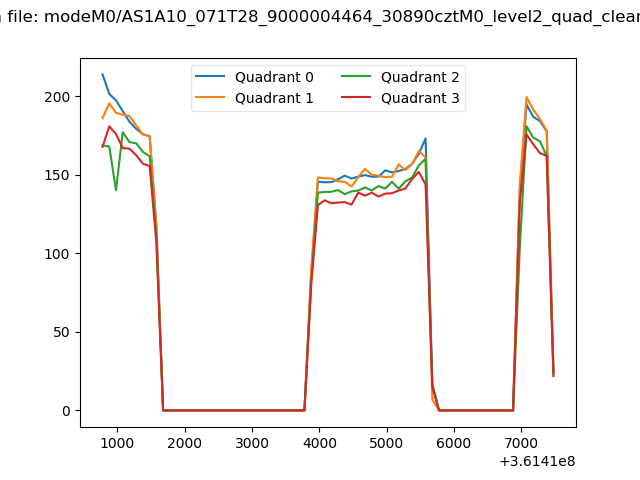

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

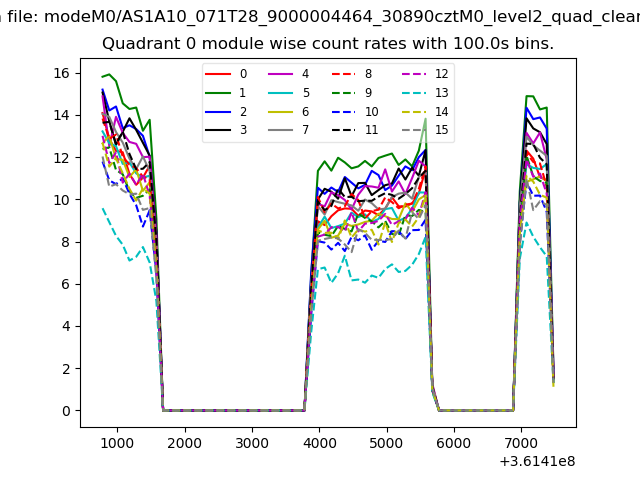

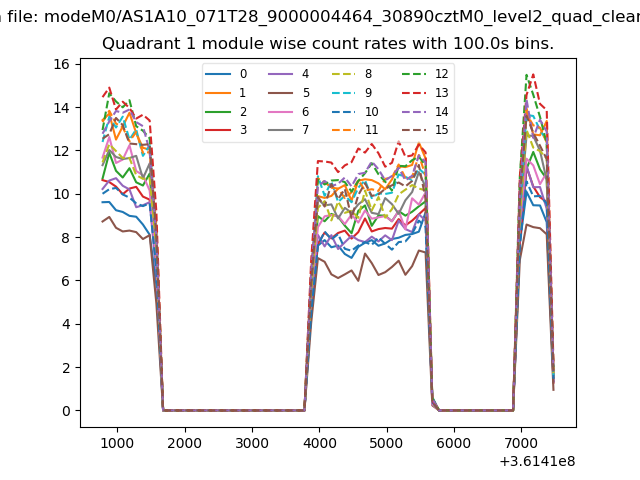

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

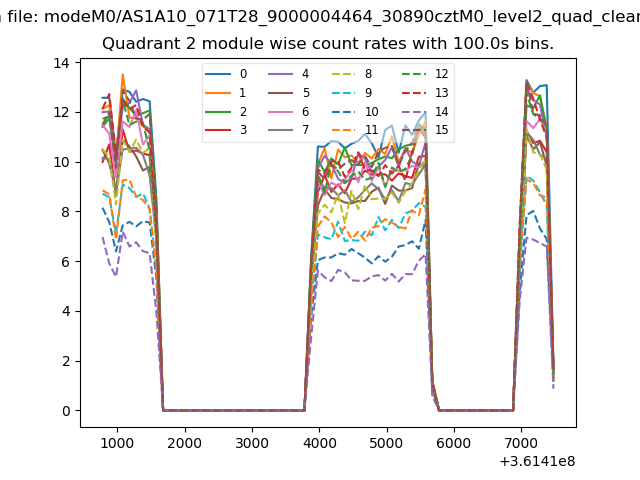

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

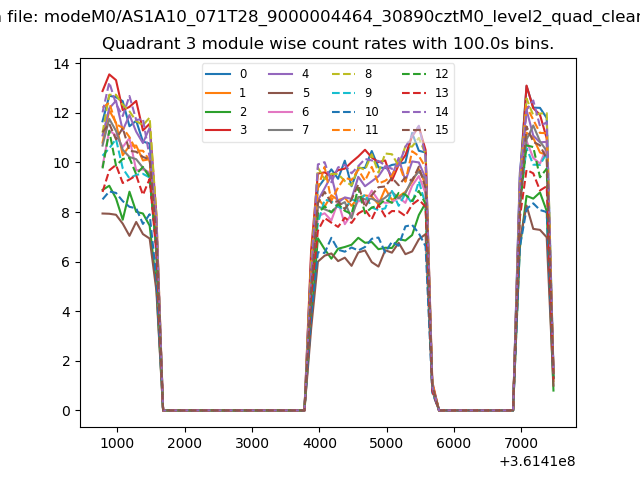

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

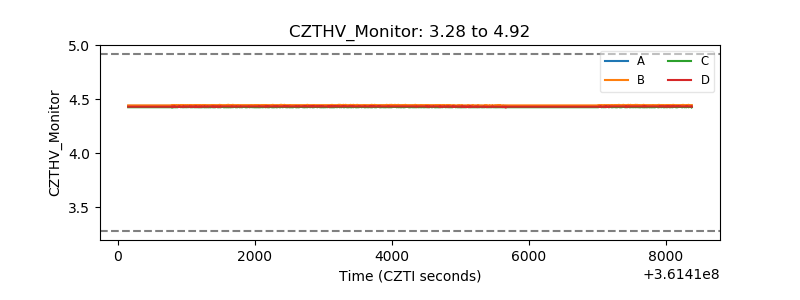

| CZT HV Monitor |  |
| D_VDD |  |

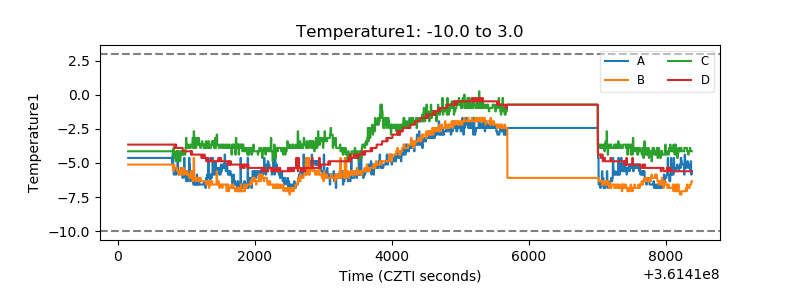

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

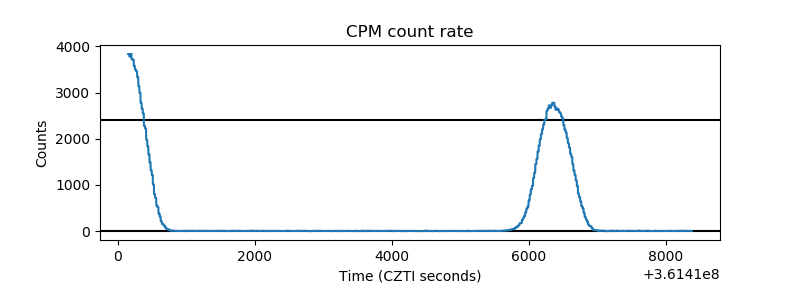

| _CPM_Rate |  |

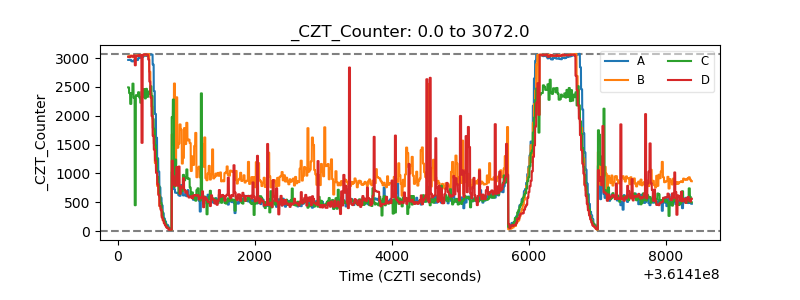

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

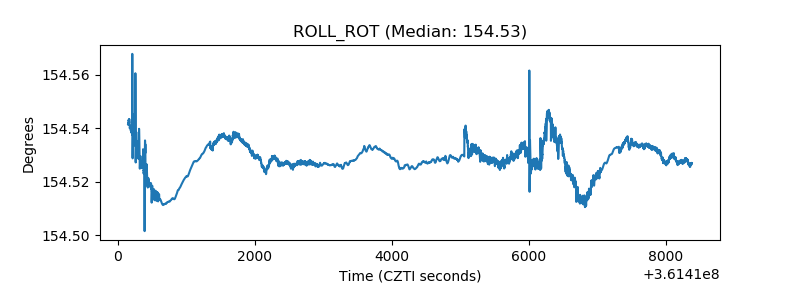

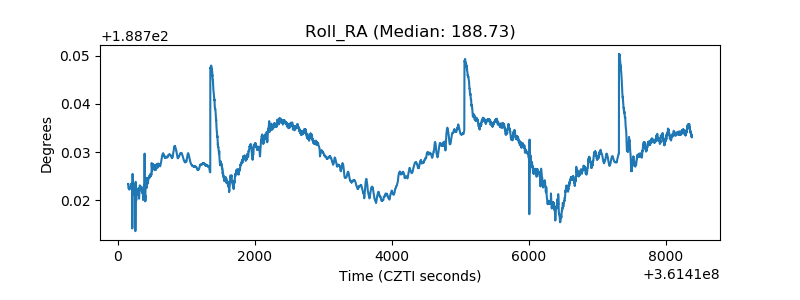

| _ROLL_ROT |  |

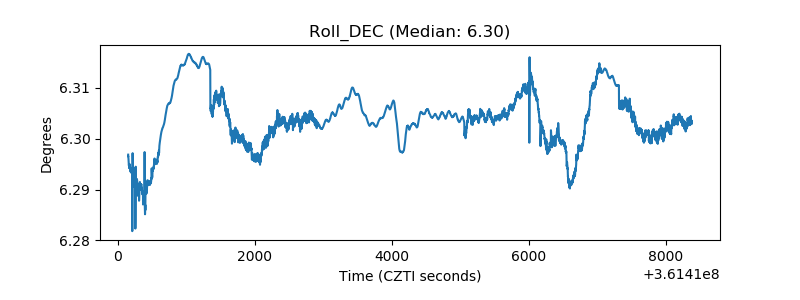

| _Roll_DEC |  |
| _Roll_RA |  |

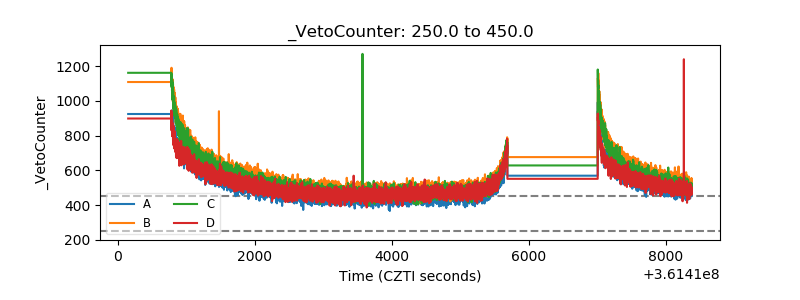

| Veto Counter |  |
