| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T28_9000004464_30891cztM0_level2.evt | modeM0/AS1A10_071T28_9000004464_30891cztM0_level2_quad_clean.evt |
| Size (bytes) | 558,302,400 | 68,832,000 |
| Size | 532.4 MB | 65.6 MB |
| Events in quadrant A | 3,282,657 | 429,328 |
| Events in quadrant B | 5,410,418 | 427,708 |
| Events in quadrant C | 3,552,905 | 400,456 |
| Events in quadrant D | 4,242,765 | 393,858 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13128 | 2 |
| B | 0 | 19974 | 1 |
| C | 0 | 14116 | 1 |
| D | 0 | 16605 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6200 | 48 | 0.774194% |
| B | 6200 | 165 | 2.661290% |
| C | 6200 | 145 | 2.338710% |
| D | 6200 | 96 | 1.548387% |

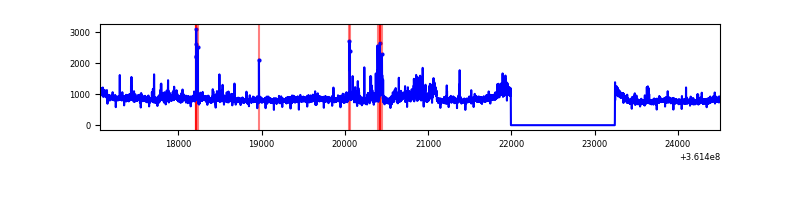

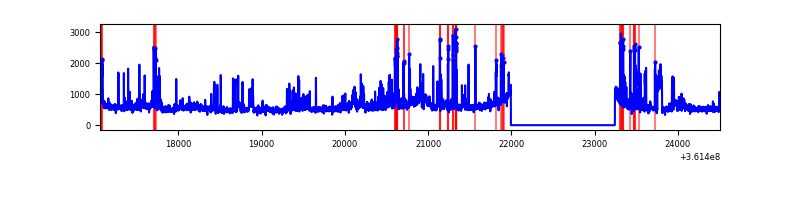

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

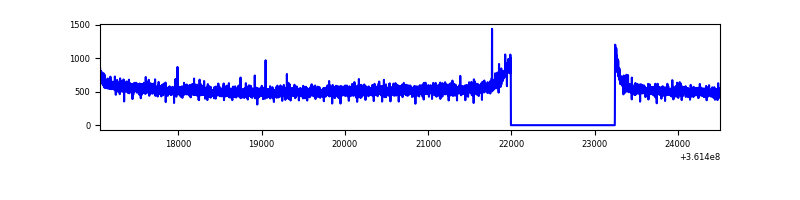

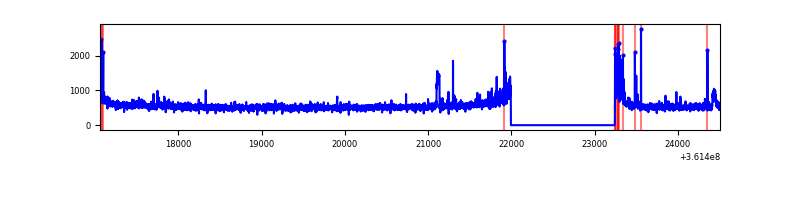

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7450 | 6201 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7450 | 6200 | 14 | 14 | 0.19% | 0.23% |  |
| C | 7450 | 6200 | 16 | 16 | 0.21% | 0.26% |  |
| D | 7450 | 6201 | 65 | 65 | 0.87% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10111 | 55.45 | 849 | 835 | 167.3 |
| A | 3 | 137 | 8003 | 42.85 | 849 | 835 | 167.3 |
| A | 0 | 226 | 7192 | 38.0 | 849 | 835 | 167.3 |
| B | 6 | 159 | 1703078 | 10799.43 | 837 | 819 | 157.6 |
| B | 6 | 36 | 305304 | 1931.71 | 837 | 819 | 157.6 |
| B | 0 | 190 | 55656 | 347.9 | 837 | 819 | 157.6 |
| C | 0 | 10 | 209324 | 1131.18 | 791 | 799 | 184.3 |
| C | 14 | 238 | 130827 | 705.36 | 791 | 799 | 184.3 |
| C | 1 | 16 | 55213 | 295.18 | 791 | 799 | 184.3 |
| D | 8 | 195 | 662866 | 3521.34 | 793 | 776 | 188.0 |
| D | 12 | 218 | 376511 | 1998.35 | 793 | 776 | 188.0 |
| D | 2 | 250 | 100711 | 531.51 | 793 | 776 | 188.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

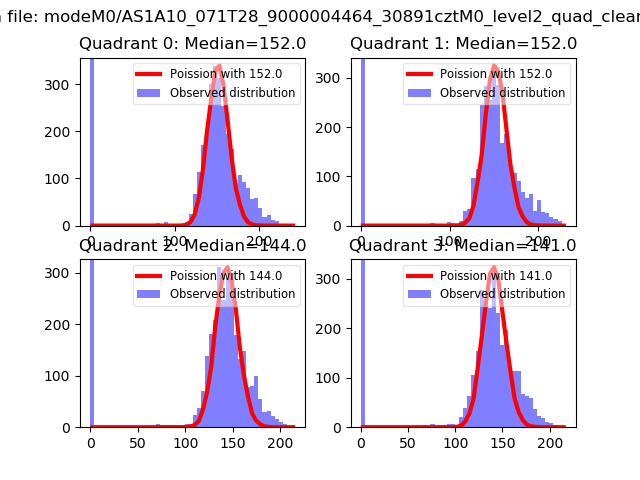

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

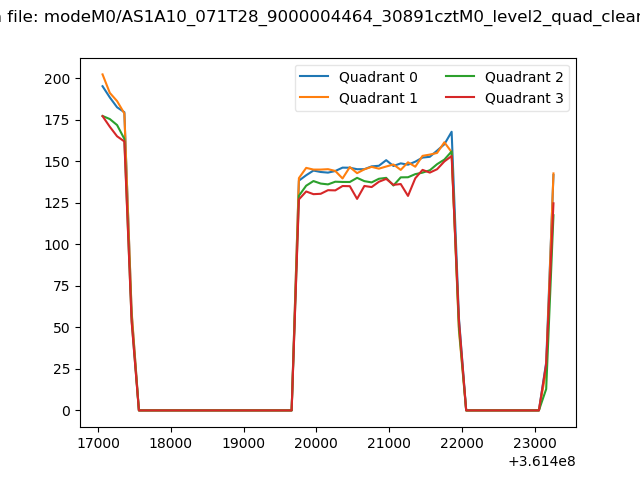

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

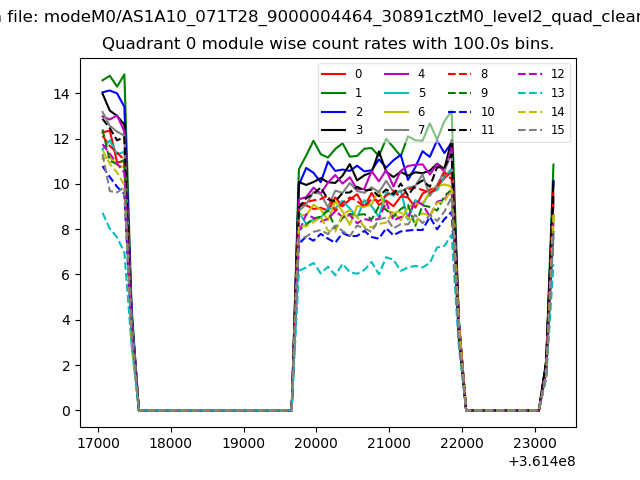

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

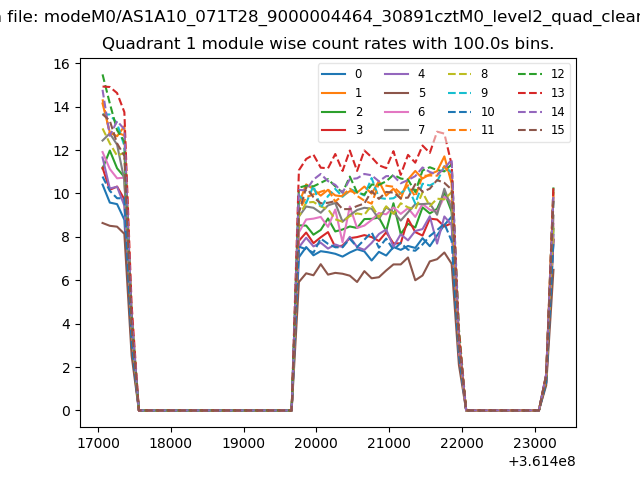

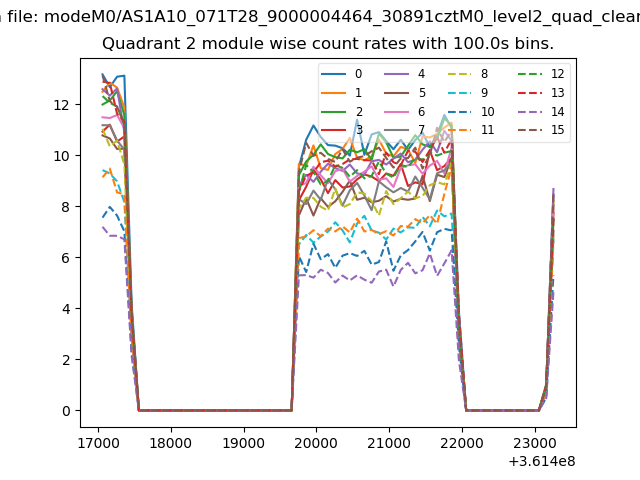

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

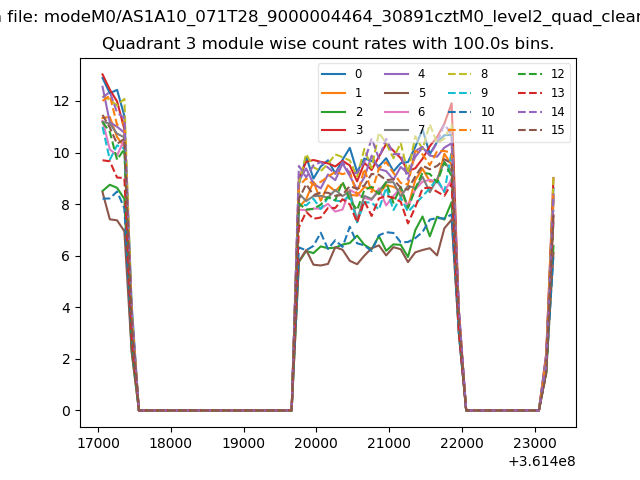

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

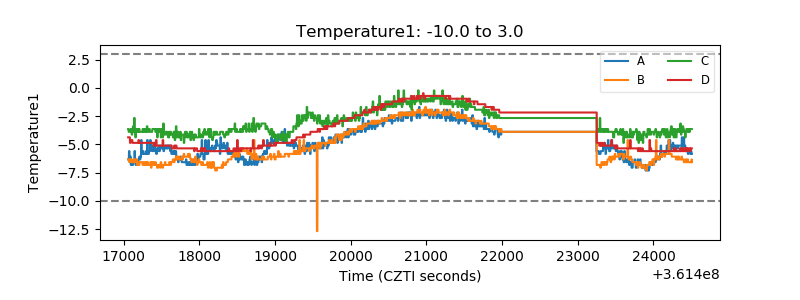

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

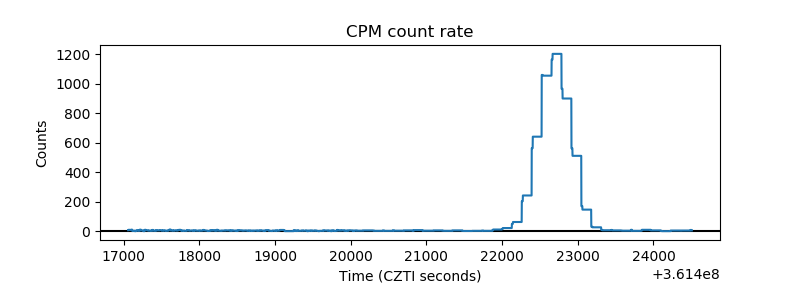

| _CPM_Rate |  |

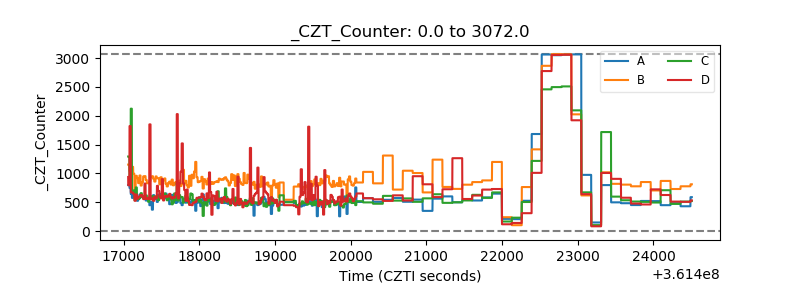

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

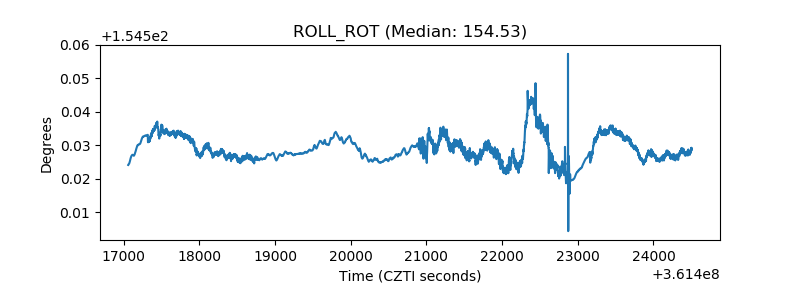

| _ROLL_ROT |  |
| _Roll_DEC |  |

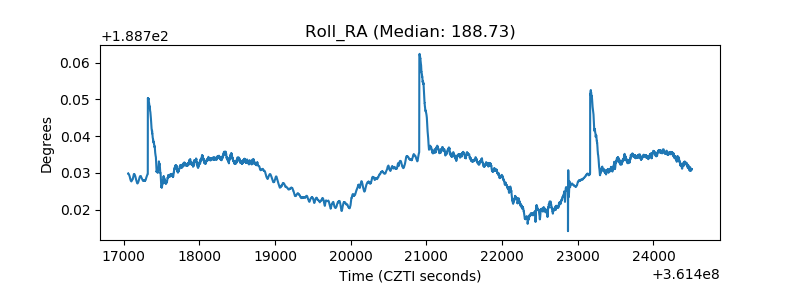

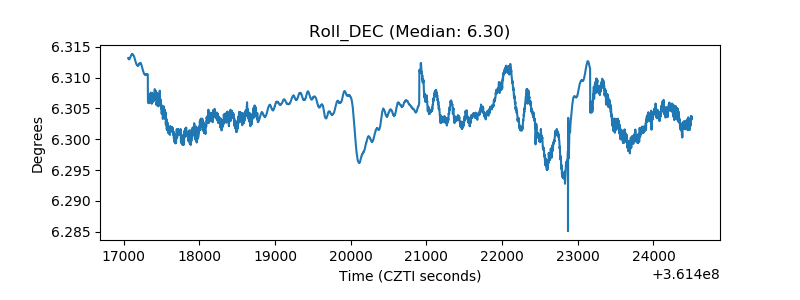

| _Roll_RA |  |

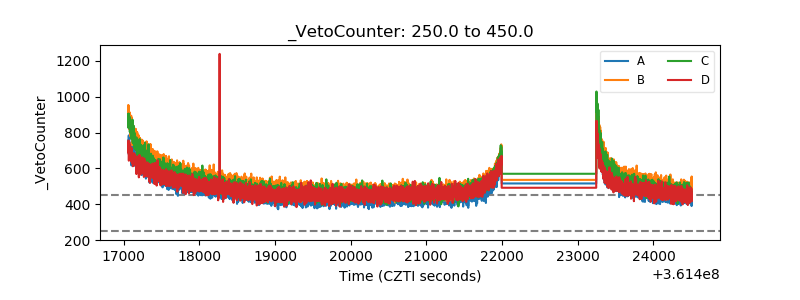

| Veto Counter |  |
