| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_007T01_9000004470_30912cztM0_level2.evt | modeM0/AS1C06_007T01_9000004470_30912cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,134,728,640 | 170,484,480 |
| Size | 1.1 GB | 162.6 MB |
| Events in quadrant A | 6,198,618 | 1,122,065 |
| Events in quadrant B | 10,071,491 | 1,111,769 |
| Events in quadrant C | 7,498,689 | 1,002,261 |
| Events in quadrant D | 9,731,821 | 1,041,375 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26923 | 2 |
| B | 0 | 39105 | 2 |
| C | 0 | 30465 | 2 |
| D | 0 | 37281 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 262 | 0 |
| B | 0 | 262 | 0 |
| C | 0 | 262 | 0 |
| D | 0 | 262 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12804 | 172 | 1.343330% |
| B | 12805 | 228 | 1.780554% |
| C | 12805 | 1770 | 13.822725% |
| D | 12805 | 718 | 5.607185% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14039 | 12804 | 42 | 42 | 0.30% | 0.33% |  |
| B | 14040 | 12805 | 6 | 6 | 0.04% | 0.05% |  |
| C | 14040 | 12805 | 65 | 65 | 0.46% | 0.51% |  |
| D | 14040 | 12805 | 552 | 552 | 3.93% | 4.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 232409 | 745.0 | 1538 | 1503 | 309.9 |
| A | 11 | 29 | 27333 | 83.34 | 1538 | 1503 | 309.9 |
| A | 13 | 254 | 24579 | 74.45 | 1538 | 1503 | 309.9 |
| B | 6 | 159 | 3740062 | 12801.46 | 1517 | 1472 | 292.0 |
| B | 0 | 190 | 82267 | 276.65 | 1517 | 1472 | 292.0 |
| B | 6 | 36 | 82171 | 276.32 | 1517 | 1472 | 292.0 |
| C | 14 | 238 | 653286 | 2007.83 | 1386 | 1394 | 324.7 |
| C | 14 | 254 | 608890 | 1871.09 | 1386 | 1394 | 324.7 |
| C | 3 | 233 | 417901 | 1282.84 | 1386 | 1394 | 324.7 |
| D | 8 | 195 | 1524243 | 4254.9 | 1469 | 1430 | 357.9 |
| D | 12 | 233 | 1413512 | 3945.5 | 1469 | 1430 | 357.9 |
| D | 2 | 250 | 386290 | 1075.34 | 1469 | 1430 | 357.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

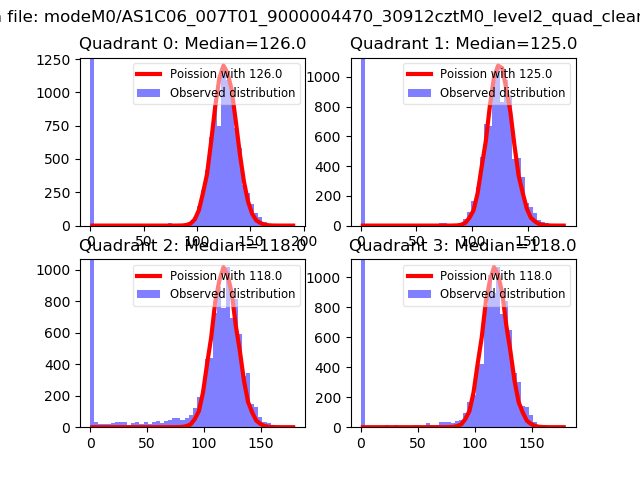

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

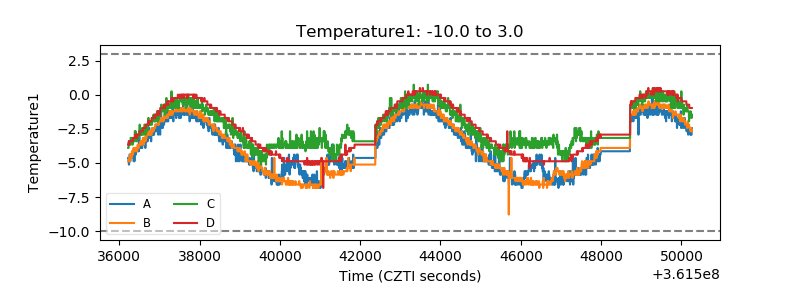

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

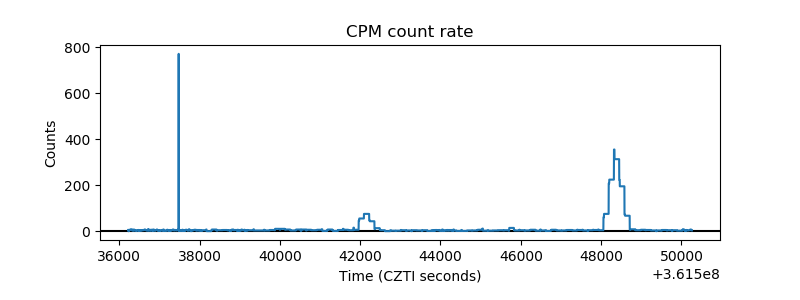

| _CPM_Rate |  |

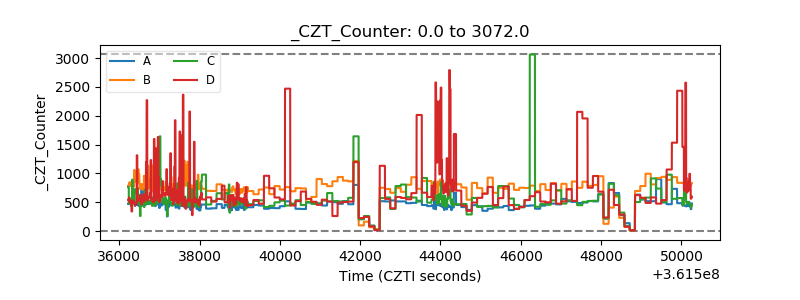

| CZT Counter |  |
