| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_007T01_9000004470_30924cztM0_level2.evt | modeM0/AS1C06_007T01_9000004470_30924cztM0_level2_quad_clean.evt |
| Size (bytes) | 697,665,600 | 93,435,840 |
| Size | 665.3 MB | 89.1 MB |
| Events in quadrant A | 3,768,015 | 597,105 |
| Events in quadrant B | 6,367,842 | 593,285 |
| Events in quadrant C | 4,590,228 | 544,078 |
| Events in quadrant D | 5,872,481 | 550,119 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16274 | 2 |
| B | 0 | 24491 | 2 |
| C | 0 | 18441 | 2 |
| D | 0 | 22484 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7833 | 252 | 3.217158% |
| B | 7834 | 428 | 5.463365% |
| C | 7834 | 1146 | 14.628542% |
| D | 7833 | 587 | 7.493936% |

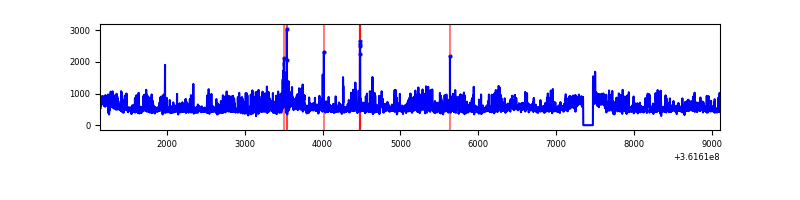

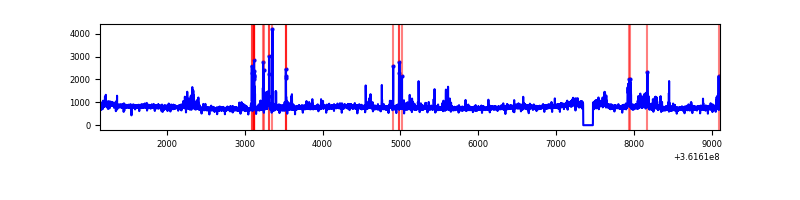

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7958 | 7833 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7959 | 7834 | 24 | 24 | 0.30% | 0.31% |  |
| C | 7959 | 7834 | 9 | 9 | 0.11% | 0.11% |  |
| D | 7958 | 7833 | 349 | 349 | 4.39% | 4.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 15708 | 74.8 | 974 | 950 | 197.3 |
| A | 3 | 137 | 9785 | 44.78 | 974 | 950 | 197.3 |
| A | 0 | 226 | 8125 | 36.37 | 974 | 950 | 197.3 |
| B | 6 | 159 | 2213876 | 12042.59 | 955 | 930 | 183.8 |
| B | 0 | 190 | 148038 | 800.54 | 955 | 930 | 183.8 |
| B | 5 | 255 | 82394 | 443.32 | 955 | 930 | 183.8 |
| C | 14 | 238 | 392383 | 1876.45 | 880 | 883 | 208.6 |
| C | 14 | 254 | 354831 | 1696.47 | 880 | 883 | 208.6 |
| C | 3 | 233 | 312069 | 1491.51 | 880 | 883 | 208.6 |
| D | 13 | 174 | 712902 | 3216.6 | 921 | 894 | 221.4 |
| D | 8 | 195 | 472142 | 2128.93 | 921 | 894 | 221.4 |
| D | 12 | 218 | 377325 | 1700.58 | 921 | 894 | 221.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

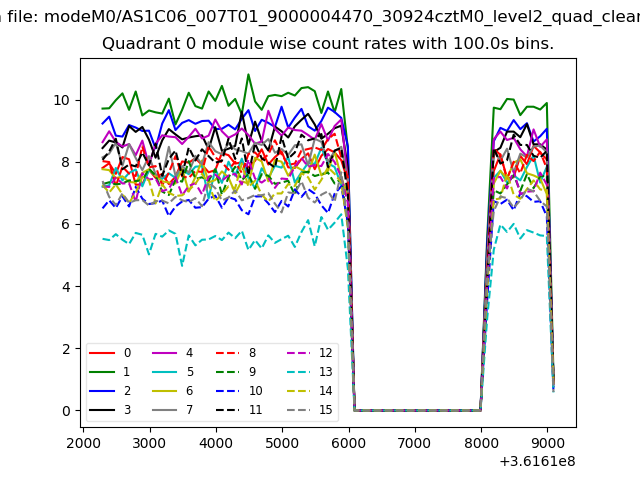

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

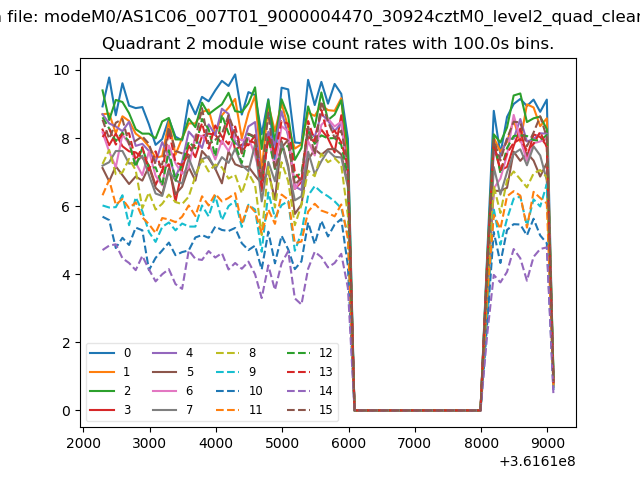

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

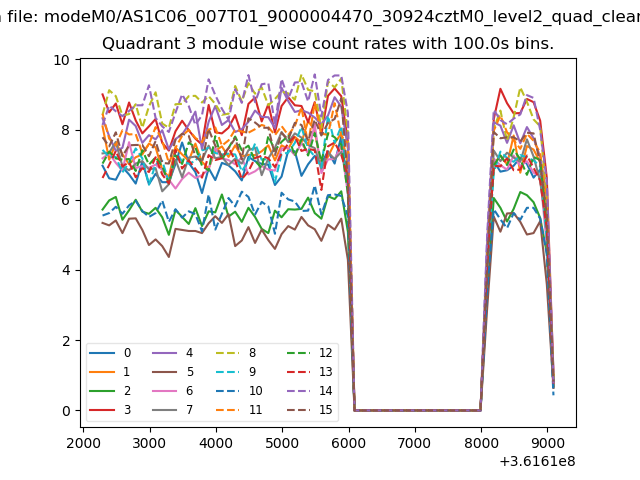

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

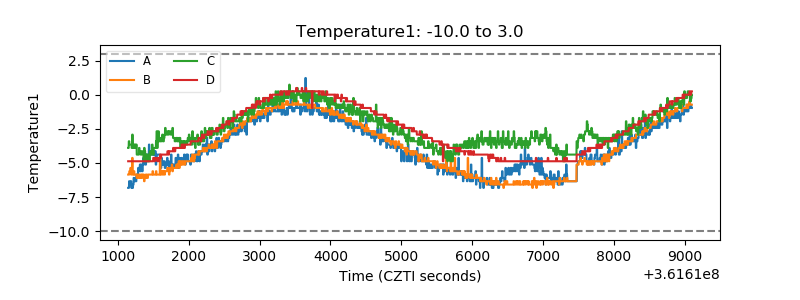

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

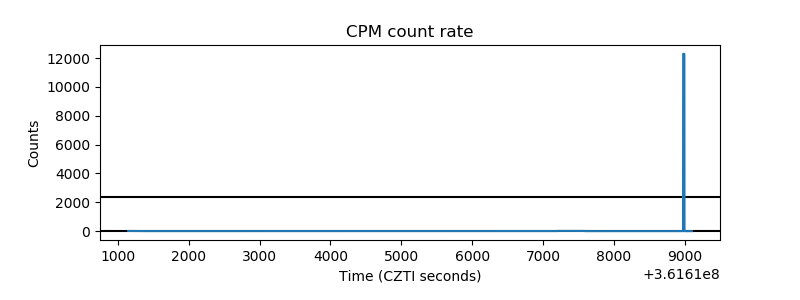

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

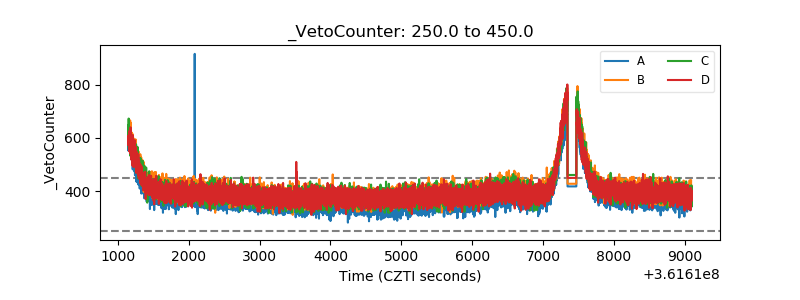

| Veto Counter |  |
