| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_007T01_9000004470_30930cztM0_level2.evt | modeM0/AS1C06_007T01_9000004470_30930cztM0_level2_quad_clean.evt |
| Size (bytes) | 594,046,080 | 94,181,760 |
| Size | 566.5 MB | 89.8 MB |
| Events in quadrant A | 3,102,190 | 628,627 |
| Events in quadrant B | 5,597,364 | 627,221 |
| Events in quadrant C | 4,068,293 | 587,038 |
| Events in quadrant D | 4,786,277 | 558,808 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13443 | 2 |
| B | 0 | 21225 | 4 |
| C | 0 | 16480 | 2 |
| D | 0 | 18464 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6451 | 41 | 0.635560% |
| B | 6450 | 140 | 2.170543% |
| C | 6450 | 383 | 5.937984% |
| D | 6450 | 442 | 6.852713% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7586 | 6451 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7585 | 6450 | 16 | 16 | 0.21% | 0.25% |  |
| C | 7585 | 6450 | 13 | 13 | 0.17% | 0.20% |  |
| D | 7585 | 6450 | 330 | 330 | 4.35% | 5.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12810 | 74.58 | 802 | 786 | 161.2 |
| A | 3 | 137 | 7548 | 41.94 | 802 | 786 | 161.2 |
| A | 0 | 226 | 6879 | 37.79 | 802 | 786 | 161.2 |
| B | 6 | 159 | 2137386 | 14265.02 | 795 | 775 | 149.8 |
| B | 0 | 190 | 160134 | 1063.96 | 795 | 775 | 149.8 |
| B | 0 | 183 | 53620 | 352.82 | 795 | 775 | 149.8 |
| C | 3 | 233 | 683636 | 3862.01 | 758 | 764 | 176.8 |
| C | 14 | 238 | 198084 | 1115.95 | 758 | 764 | 176.8 |
| C | 14 | 254 | 112342 | 631.03 | 758 | 764 | 176.8 |
| D | 8 | 195 | 368288 | 2052.9 | 755 | 737 | 179.0 |
| D | 12 | 233 | 297886 | 1659.68 | 755 | 737 | 179.0 |
| D | 6 | 239 | 295029 | 1643.72 | 755 | 737 | 179.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

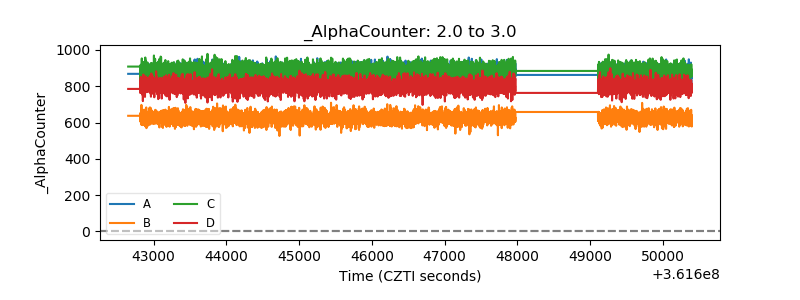

| Alpha Counter |  |

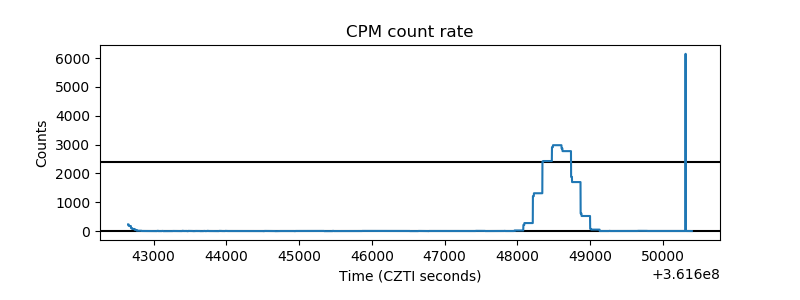

| _CPM_Rate |  |

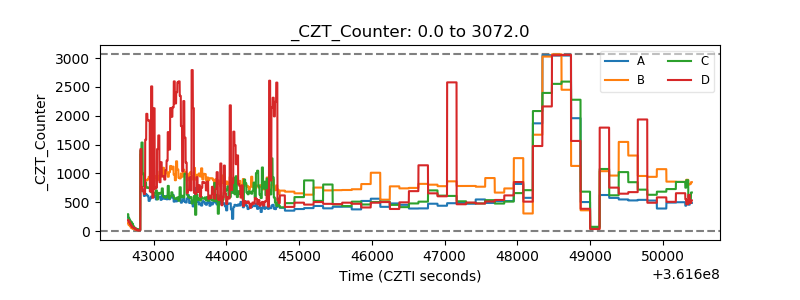

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

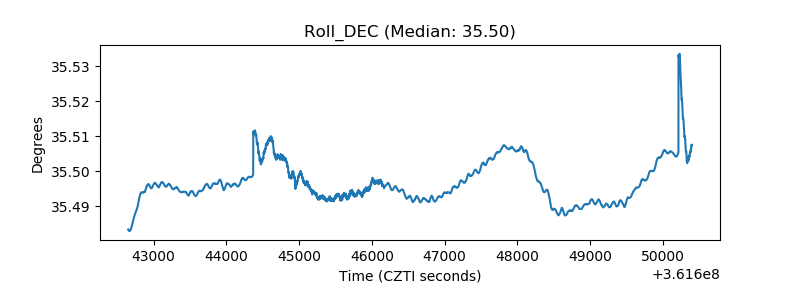

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
