| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_007T01_9000004470_30932cztM0_level2.evt | modeM0/AS1C06_007T01_9000004470_30932cztM0_level2_quad_clean.evt |
| Size (bytes) | 355,322,880 | 51,151,680 |
| Size | 338.9 MB | 48.8 MB |
| Events in quadrant A | 1,999,172 | 329,072 |
| Events in quadrant B | 3,600,551 | 331,251 |
| Events in quadrant C | 2,286,813 | 306,252 |
| Events in quadrant D | 2,593,448 | 291,044 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8527 | 1 |
| B | 0 | 13564 | 1 |
| C | 0 | 9406 | 1 |
| D | 0 | 10553 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4123 | 6 | 0.145525% |
| B | 4123 | 61 | 1.479505% |
| C | 4123 | 162 | 3.929178% |
| D | 4123 | 133 | 3.225806% |

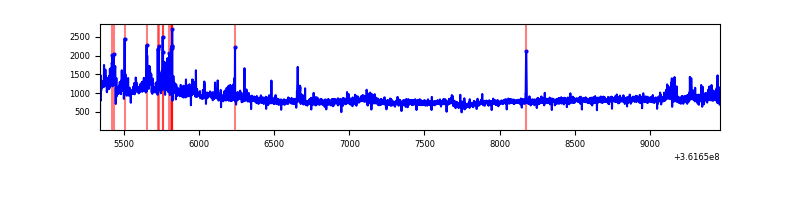

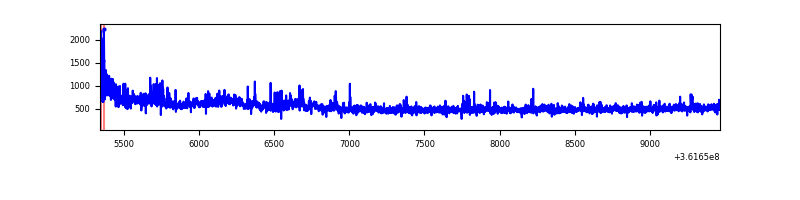

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4123 | 4123 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4123 | 4123 | 16 | 16 | 0.39% | 0.39% |  |
| C | 4123 | 4123 | 3 | 3 | 0.07% | 0.07% |  |
| D | 4123 | 4123 | 120 | 120 | 2.91% | 2.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8567 | 76.61 | 518 | 509 | 105.2 |
| A | 3 | 137 | 4629 | 39.17 | 518 | 509 | 105.2 |
| A | 0 | 226 | 4511 | 38.05 | 518 | 509 | 105.2 |
| B | 6 | 159 | 1281821 | 13196.47 | 522 | 510 | 97.1 |
| B | 0 | 190 | 109299 | 1120.44 | 522 | 510 | 97.1 |
| B | 0 | 183 | 65086 | 665.08 | 522 | 510 | 97.1 |
| C | 3 | 233 | 149441 | 1291.38 | 493 | 498 | 115.3 |
| C | 14 | 238 | 113971 | 983.85 | 493 | 498 | 115.3 |
| C | 14 | 254 | 50630 | 434.66 | 493 | 498 | 115.3 |
| D | 13 | 249 | 298603 | 2534.07 | 491 | 478 | 117.6 |
| D | 8 | 195 | 271697 | 2305.37 | 491 | 478 | 117.6 |
| D | 2 | 250 | 43974 | 369.72 | 491 | 478 | 117.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

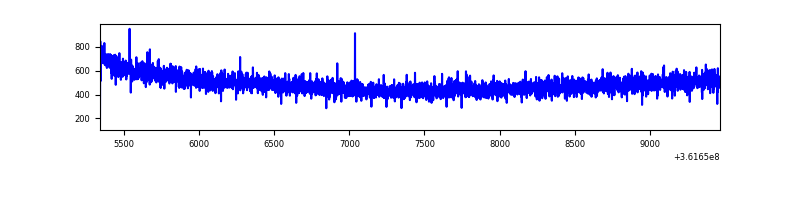

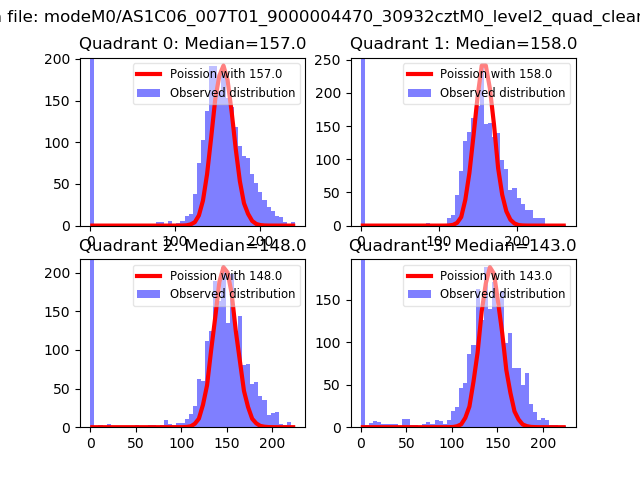

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

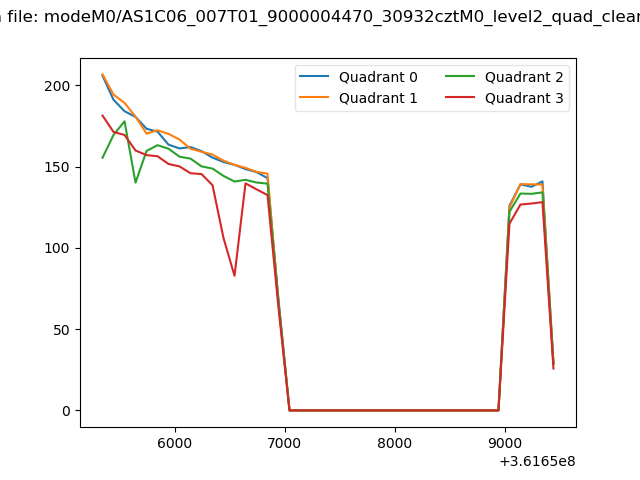

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

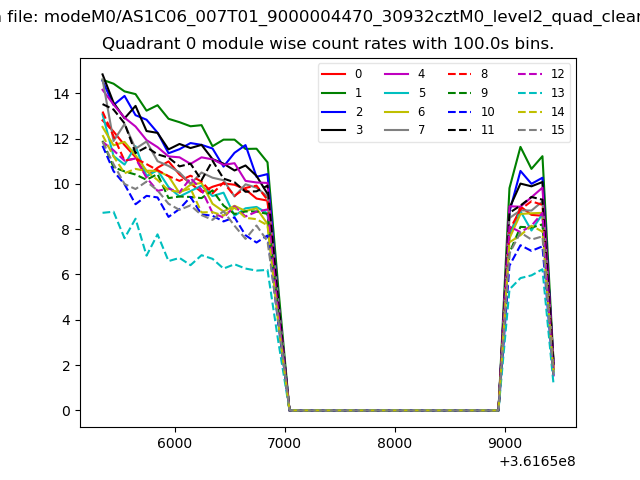

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

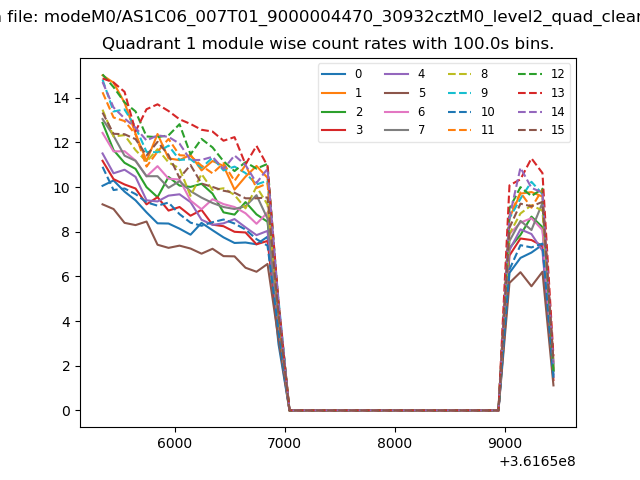

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

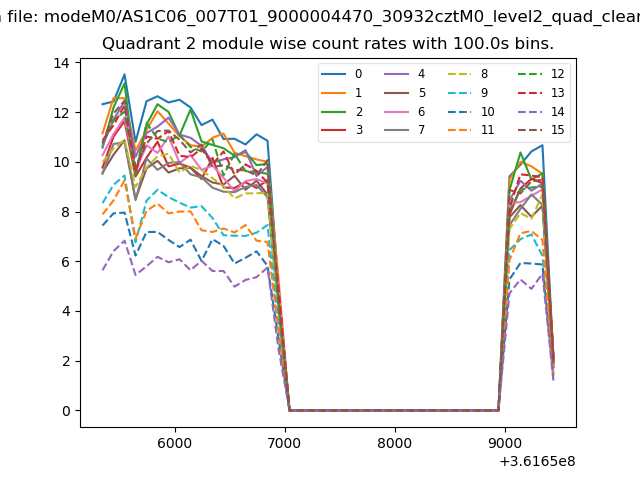

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

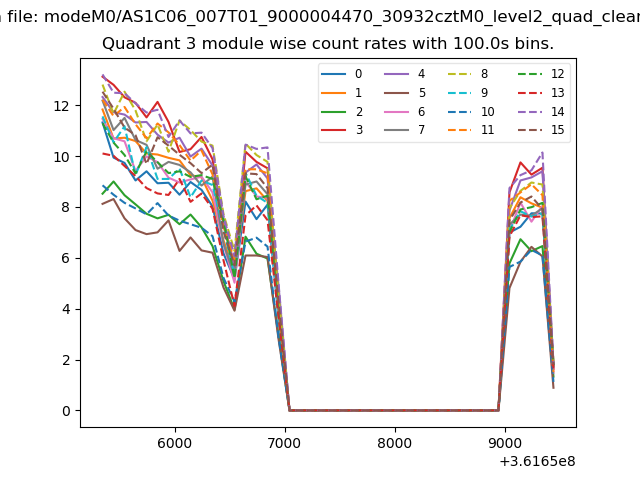

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

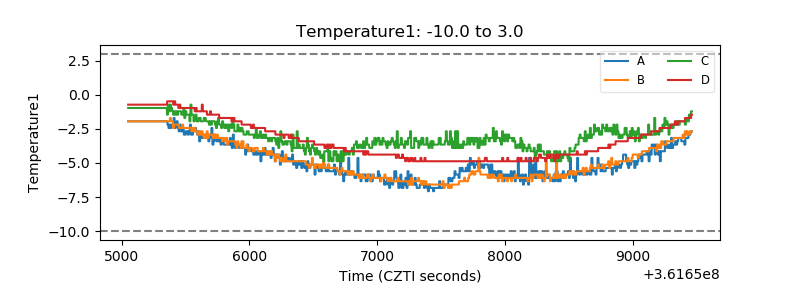

| Temperature 1 |  |
| Veto HV Monitor |  |

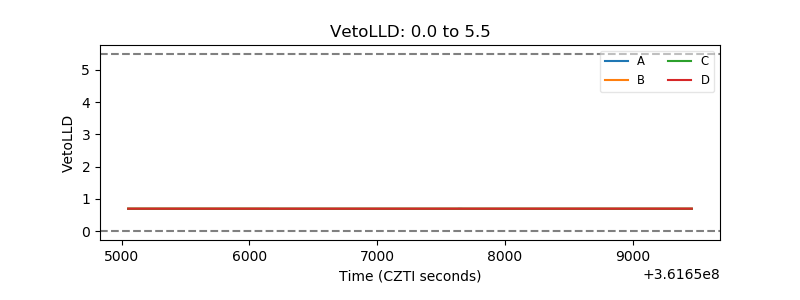

| Veto LLD |  |

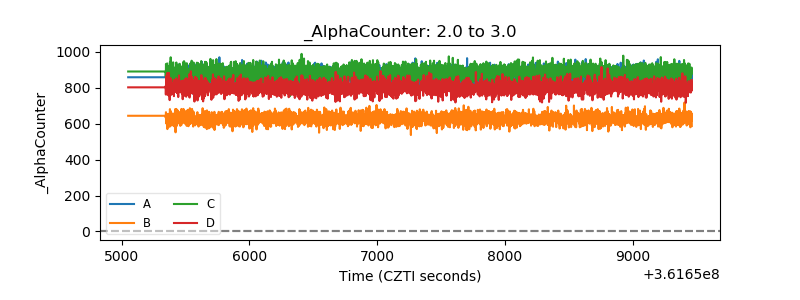

| Alpha Counter |  |

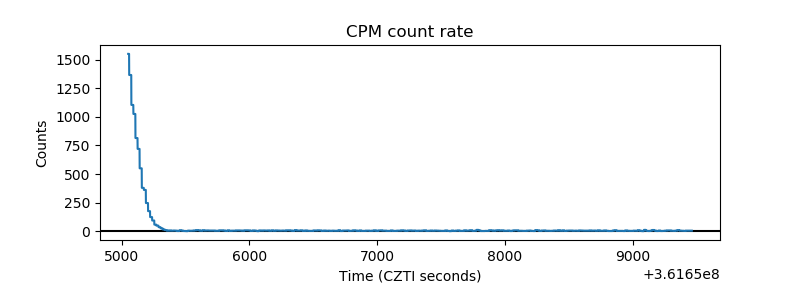

| _CPM_Rate |  |

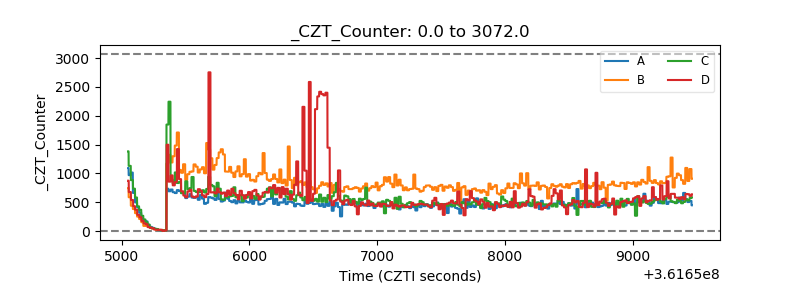

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

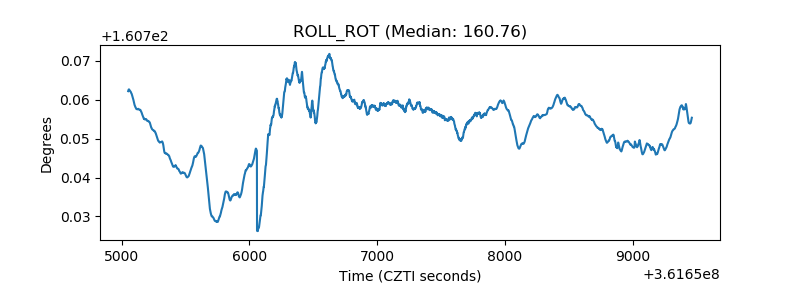

| _ROLL_ROT |  |

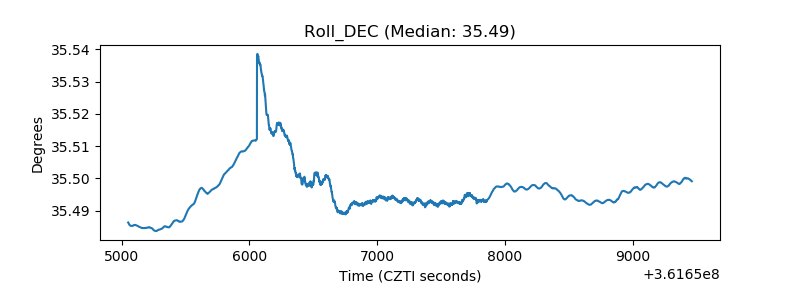

| _Roll_DEC |  |

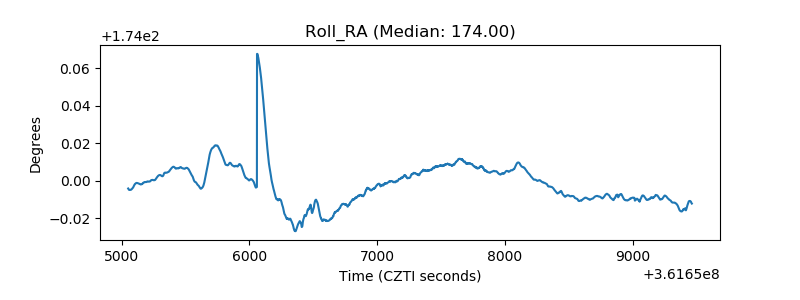

| _Roll_RA |  |

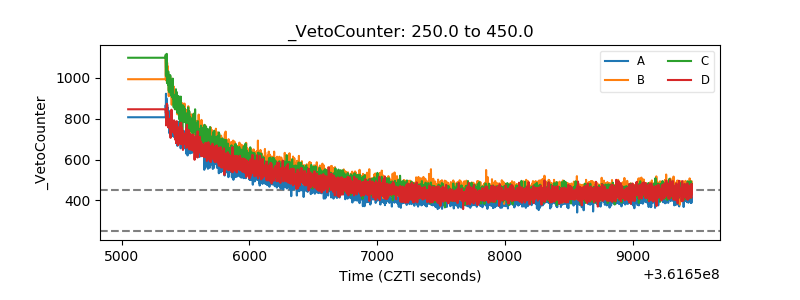

| Veto Counter |  |
