| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T10_9000004472_30937cztM0_level2.evt | modeM0/AS1A10_058T10_9000004472_30937cztM0_level2_quad_clean.evt |
| Size (bytes) | 579,890,880 | 102,265,920 |
| Size | 553.0 MB | 97.5 MB |
| Events in quadrant A | 3,518,082 | 661,489 |
| Events in quadrant B | 5,838,374 | 654,668 |
| Events in quadrant C | 3,801,734 | 637,669 |
| Events in quadrant D | 3,904,628 | 630,500 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15211 | 1 |
| B | 0 | 22863 | 1 |
| C | 0 | 15795 | 2 |
| D | 0 | 16203 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7359 | 240 | 3.261313% |
| B | 7359 | 378 | 5.136567% |
| C | 7358 | 332 | 4.512096% |
| D | 7359 | 193 | 2.622639% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7464 | 7359 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7464 | 7359 | 50 | 50 | 0.67% | 0.68% |  |
| C | 7463 | 7358 | 13 | 13 | 0.17% | 0.18% |  |
| D | 7464 | 7359 | 12 | 12 | 0.16% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13822 | 70.35 | 909 | 888 | 183.9 |
| A | 3 | 137 | 9372 | 46.14 | 909 | 888 | 183.9 |
| A | 3 | 243 | 8925 | 43.71 | 909 | 888 | 183.9 |
| B | 6 | 159 | 2018914 | 11728.18 | 887 | 862 | 172.1 |
| B | 5 | 172 | 158394 | 915.52 | 887 | 862 | 172.1 |
| B | 0 | 190 | 113895 | 656.91 | 887 | 862 | 172.1 |
| C | 14 | 238 | 167310 | 807.84 | 867 | 869 | 206.0 |
| C | 0 | 10 | 126108 | 607.86 | 867 | 869 | 206.0 |
| C | 14 | 254 | 41820 | 198.76 | 867 | 869 | 206.0 |
| D | 8 | 195 | 340099 | 1607.26 | 885 | 861 | 211.1 |
| D | 12 | 227 | 92085 | 432.21 | 885 | 861 | 211.1 |
| D | 2 | 250 | 45382 | 210.93 | 885 | 861 | 211.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

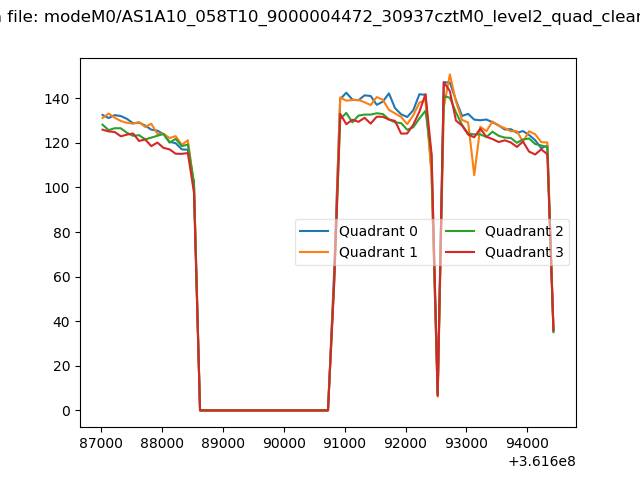

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

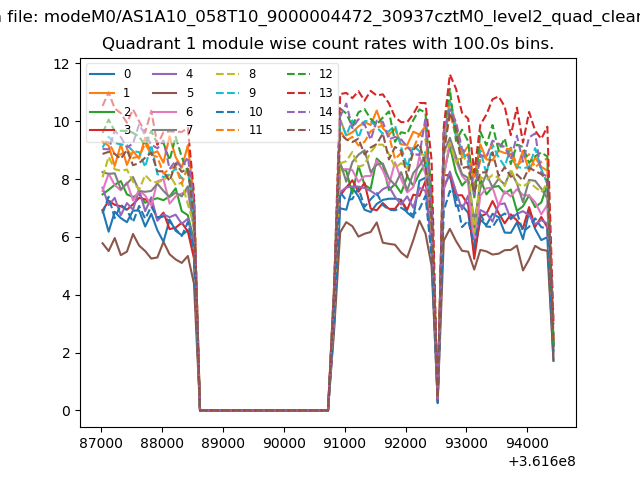

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

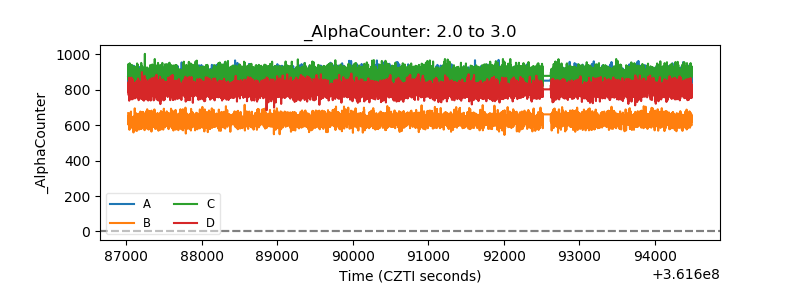

| Alpha Counter |  |

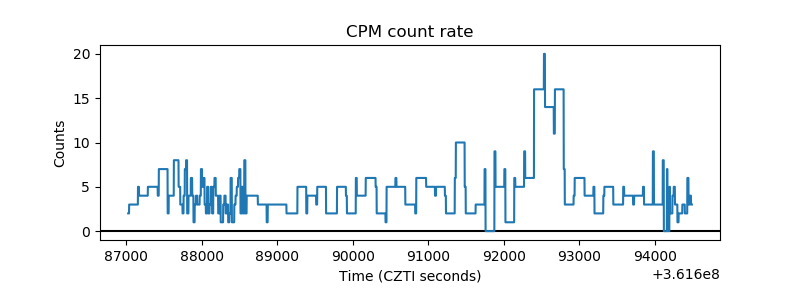

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

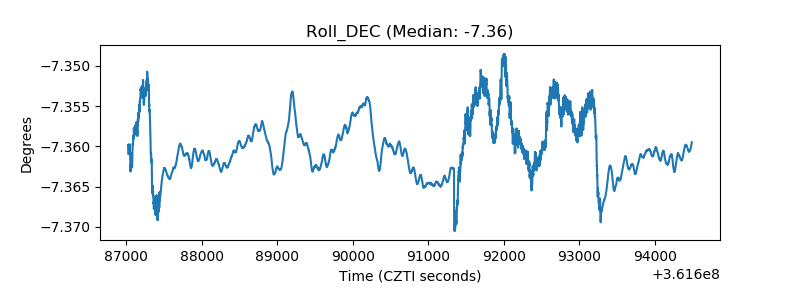

| _Roll_DEC |  |
| _Roll_RA |  |

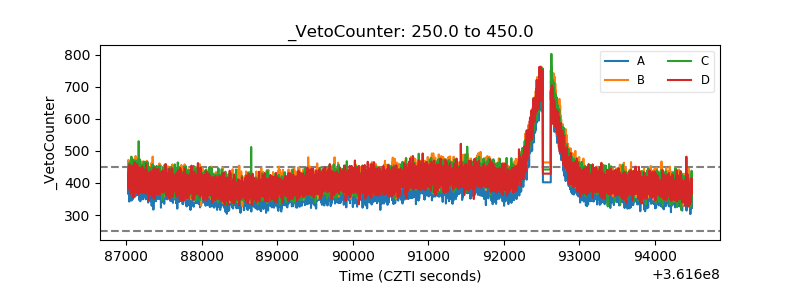

| Veto Counter |  |
