| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T10_9000004472_30939cztM0_level2.evt | modeM0/AS1A10_058T10_9000004472_30939cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,213,251,840 | 178,986,240 |
| Size | 1.1 GB | 170.7 MB |
| Events in quadrant A | 7,286,021 | 1,118,295 |
| Events in quadrant B | 11,776,681 | 1,111,532 |
| Events in quadrant C | 7,988,170 | 1,074,514 |
| Events in quadrant D | 8,661,347 | 1,061,909 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31321 | 2 |
| B | 0 | 46830 | 3 |
| C | 0 | 33257 | 2 |
| D | 0 | 35404 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 310 | 0 |
| B | 0 | 310 | 0 |
| C | 0 | 310 | 0 |
| D | 0 | 310 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15274 | 184 | 1.204662% |
| B | 15275 | 355 | 2.324059% |
| C | 15275 | 713 | 4.667758% |
| D | 15275 | 241 | 1.577741% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25819 | 15275 | 0 | 0 | 0.00% | 0.00% |  |
| B | 25819 | 15276 | 42 | 42 | 0.16% | 0.27% |  |
| C | 25819 | 15276 | 43 | 43 | 0.17% | 0.28% |  |
| D | 25819 | 15277 | 82 | 82 | 0.32% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 80752 | 211.3 | 1866 | 1826 | 373.5 |
| A | 13 | 254 | 27104 | 67.67 | 1866 | 1826 | 373.5 |
| A | 3 | 137 | 19011 | 46.01 | 1866 | 1826 | 373.5 |
| B | 6 | 159 | 4139429 | 11725.17 | 1829 | 1779 | 352.9 |
| B | 5 | 172 | 225436 | 633.79 | 1829 | 1779 | 352.9 |
| B | 0 | 190 | 106000 | 295.34 | 1829 | 1779 | 352.9 |
| C | 14 | 238 | 429114 | 1036.97 | 1754 | 1763 | 412.1 |
| C | 0 | 10 | 292716 | 706.0 | 1754 | 1763 | 412.1 |
| C | 14 | 254 | 212128 | 510.45 | 1754 | 1763 | 412.1 |
| D | 8 | 195 | 926957 | 2163.99 | 1809 | 1767 | 427.5 |
| D | 2 | 250 | 259636 | 603.15 | 1809 | 1767 | 427.5 |
| D | 13 | 174 | 184202 | 426.71 | 1809 | 1767 | 427.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

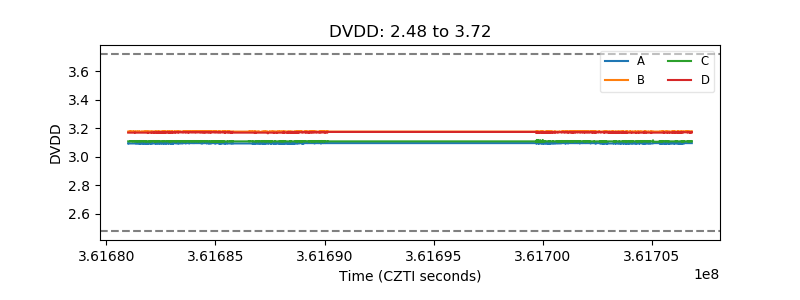

| D_VDD |  |

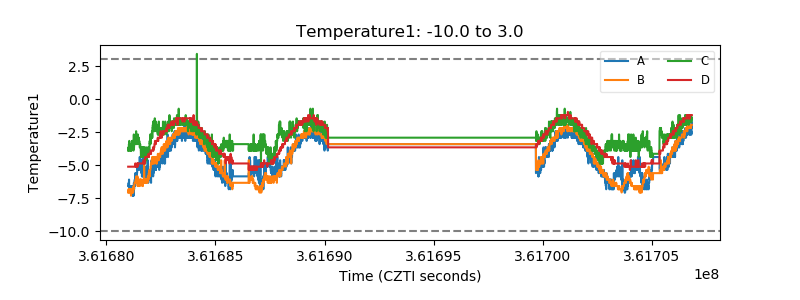

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

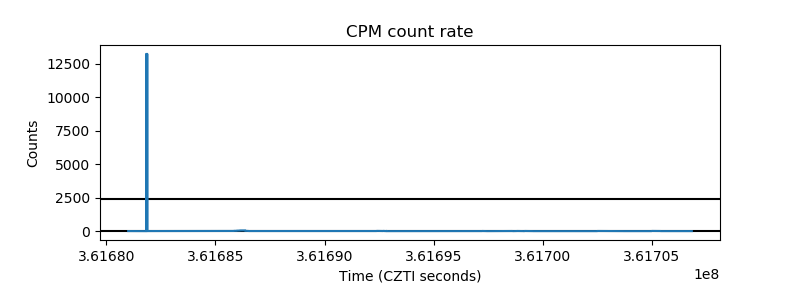

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

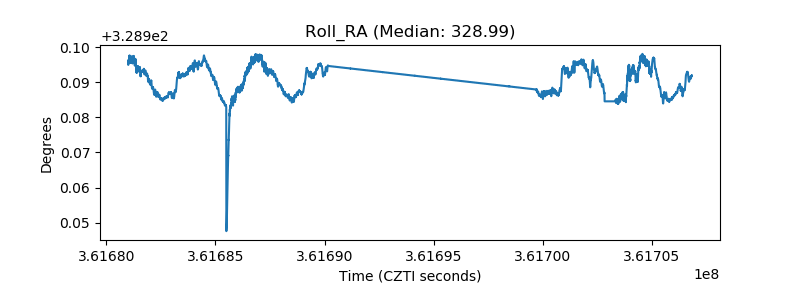

| _Roll_RA |  |
| Veto Counter |  |
