| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T10_9000004472_30942cztM0_level2.evt | modeM0/AS1A10_058T10_9000004472_30942cztM0_level2_quad_clean.evt |
| Size (bytes) | 553,060,800 | 70,312,320 |
| Size | 527.4 MB | 67.1 MB |
| Events in quadrant A | 3,320,714 | 427,017 |
| Events in quadrant B | 5,507,299 | 419,057 |
| Events in quadrant C | 3,550,039 | 403,239 |
| Events in quadrant D | 3,908,669 | 403,616 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14104 | 2 |
| B | 0 | 21250 | 2 |
| C | 0 | 14601 | 2 |
| D | 0 | 16023 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6826 | 53 | 0.776443% |
| B | 6826 | 192 | 2.812775% |
| C | 6826 | 137 | 2.007032% |
| D | 6826 | 83 | 1.215939% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7756 | 6826 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7756 | 6826 | 50 | 50 | 0.64% | 0.73% |  |
| C | 7756 | 6826 | 19 | 19 | 0.24% | 0.28% |  |
| D | 7756 | 6826 | 41 | 41 | 0.53% | 0.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12479 | 67.67 | 857 | 839 | 172.0 |
| A | 3 | 137 | 8809 | 46.33 | 857 | 839 | 172.0 |
| A | 3 | 243 | 7276 | 37.42 | 857 | 839 | 172.0 |
| B | 6 | 159 | 1895935 | 11722.07 | 839 | 817 | 161.7 |
| B | 5 | 172 | 203377 | 1252.92 | 839 | 817 | 161.7 |
| B | 0 | 230 | 41033 | 248.75 | 839 | 817 | 161.7 |
| C | 14 | 238 | 137865 | 717.44 | 814 | 818 | 191.0 |
| C | 0 | 10 | 130643 | 679.63 | 814 | 818 | 191.0 |
| C | 3 | 233 | 80218 | 415.66 | 814 | 818 | 191.0 |
| D | 8 | 195 | 456730 | 2326.53 | 826 | 804 | 196.0 |
| D | 12 | 233 | 235492 | 1197.58 | 826 | 804 | 196.0 |
| D | 2 | 250 | 39068 | 195.26 | 826 | 804 | 196.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

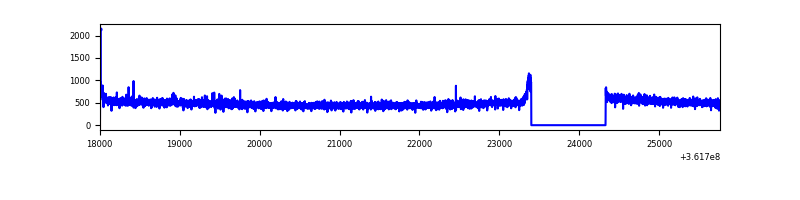

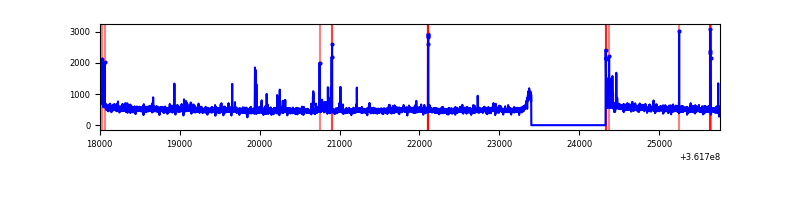

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

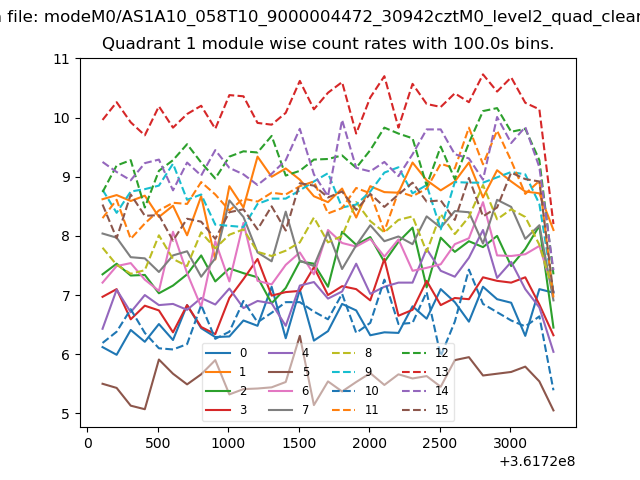

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

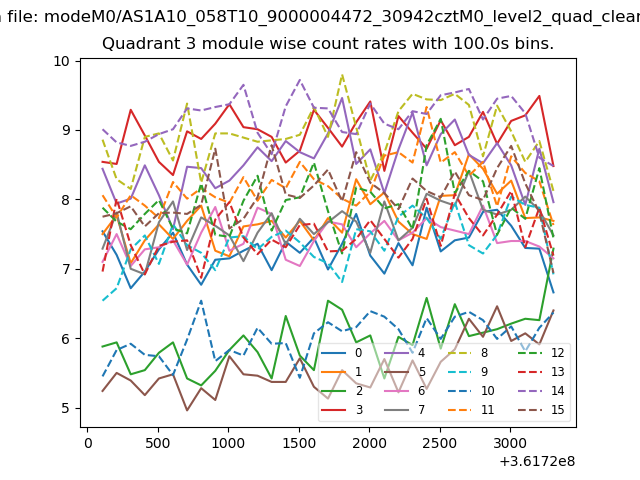

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

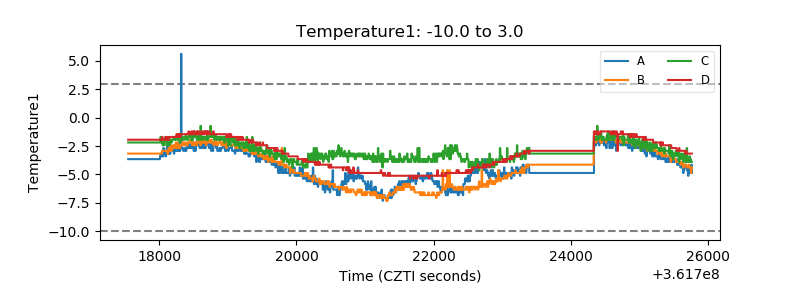

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

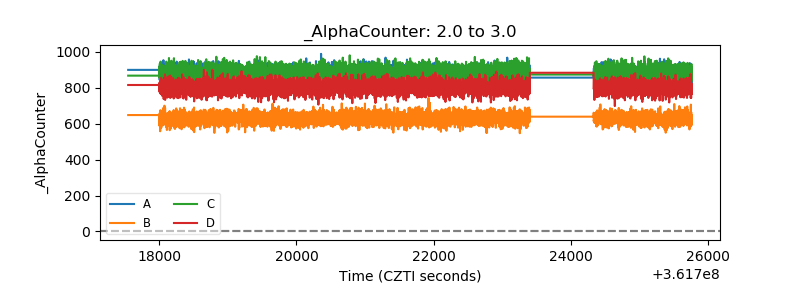

| Alpha Counter |  |
| _CPM_Rate |  |

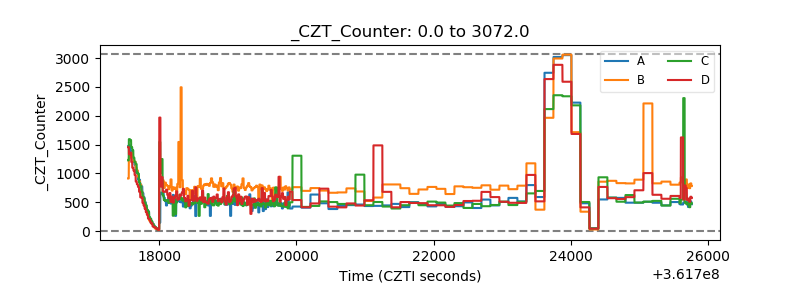

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

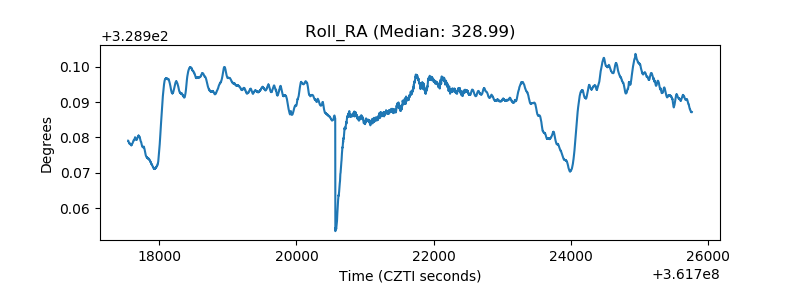

| _Roll_RA |  |
| Veto Counter |  |
