| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T11_9000004474_30964cztM0_level2.evt | modeM0/AS1A10_058T11_9000004474_30964cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,851,200 | 98,164,800 |
| Size | 517.7 MB | 93.6 MB |
| Events in quadrant A | 3,230,107 | 641,286 |
| Events in quadrant B | 5,104,676 | 647,397 |
| Events in quadrant C | 3,642,014 | 619,708 |
| Events in quadrant D | 4,029,095 | 617,013 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13553 | 2 |
| B | 0 | 19749 | 2 |
| C | 0 | 14734 | 2 |
| D | 0 | 16046 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6407 | 29 | 0.452630% |
| B | 6408 | 158 | 2.465668% |
| C | 6407 | 225 | 3.511784% |
| D | 6407 | 89 | 1.389106% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7522 | 6408 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7523 | 6409 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7522 | 6408 | 59 | 59 | 0.78% | 0.92% |  |
| D | 7522 | 6408 | 45 | 45 | 0.60% | 0.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10863 | 60.02 | 837 | 821 | 167.3 |
| A | 3 | 137 | 8034 | 43.11 | 837 | 821 | 167.3 |
| A | 0 | 226 | 6932 | 36.53 | 837 | 821 | 167.3 |
| B | 6 | 159 | 1738476 | 10962.49 | 832 | 813 | 158.5 |
| B | 15 | 201 | 32516 | 200.01 | 832 | 813 | 158.5 |
| B | 0 | 190 | 31957 | 196.48 | 832 | 813 | 158.5 |
| C | 0 | 10 | 329965 | 1735.33 | 808 | 817 | 189.7 |
| C | 14 | 238 | 130311 | 682.72 | 808 | 817 | 189.7 |
| C | 2 | 114 | 14760 | 73.51 | 808 | 817 | 189.7 |
| D | 13 | 174 | 384463 | 1966.65 | 819 | 800 | 195.1 |
| D | 8 | 195 | 266786 | 1363.44 | 819 | 800 | 195.1 |
| D | 2 | 250 | 226578 | 1157.33 | 819 | 800 | 195.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

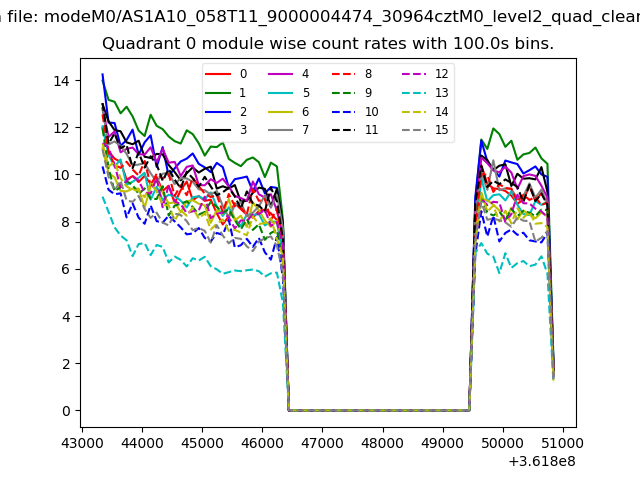

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

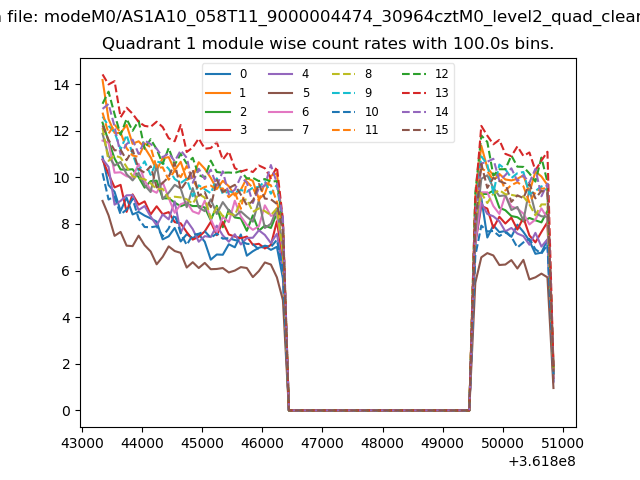

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

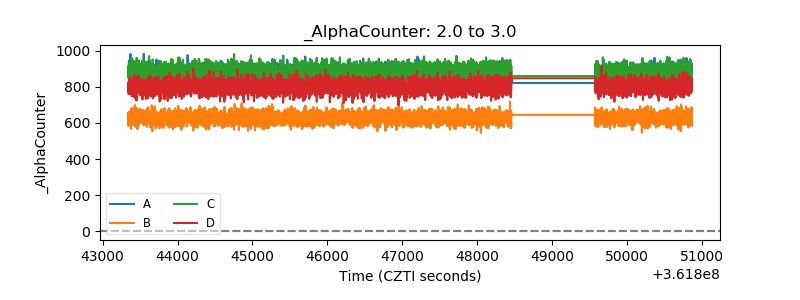

| Alpha Counter |  |
| _CPM_Rate |  |

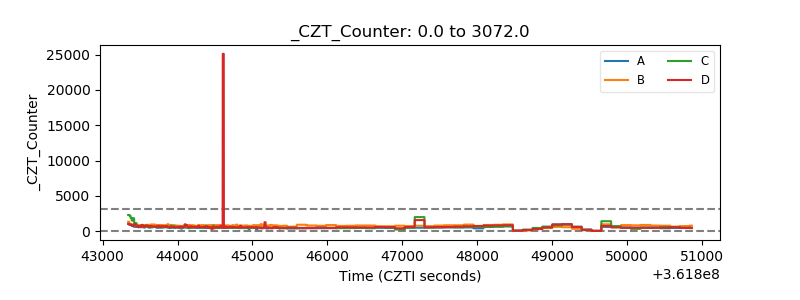

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

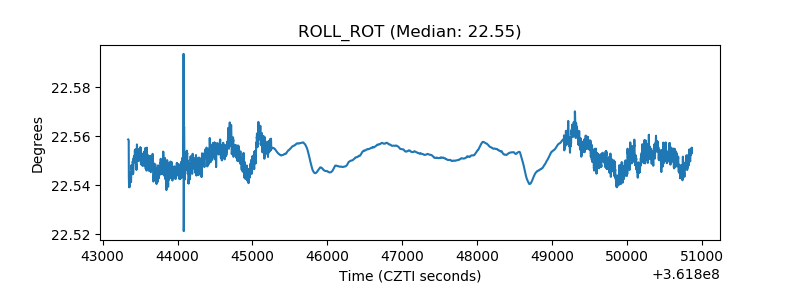

| _ROLL_ROT |  |

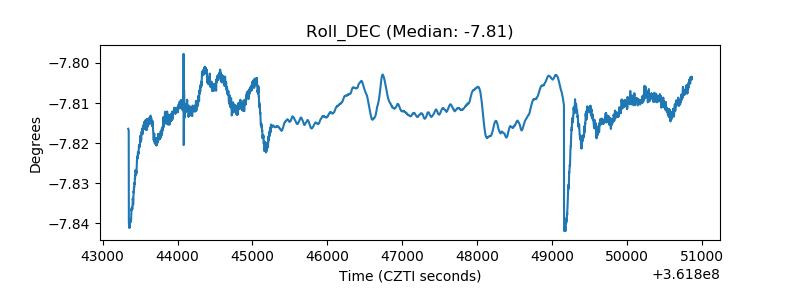

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
