| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T42_9000004476_30972cztM0_level2.evt | modeM0/AS1A10_071T42_9000004476_30972cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,571,840 | 84,398,400 |
| Size | 465.9 MB | 80.5 MB |
| Events in quadrant A | 2,912,460 | 548,977 |
| Events in quadrant B | 4,911,247 | 544,870 |
| Events in quadrant C | 3,184,355 | 522,412 |
| Events in quadrant D | 3,376,982 | 515,791 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12600 | 1 |
| B | 0 | 18646 | 1 |
| C | 0 | 13293 | 1 |
| D | 0 | 13855 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6065 | 43 | 0.708986% |
| B | 6065 | 97 | 1.599340% |
| C | 6066 | 147 | 2.423343% |
| D | 6066 | 52 | 0.857237% |

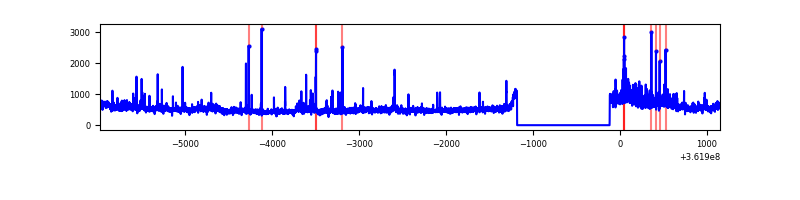

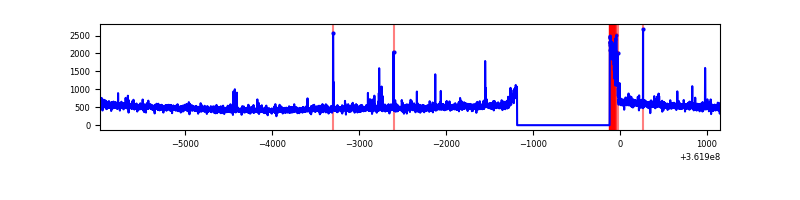

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7130 | 6065 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7130 | 6065 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7131 | 6066 | 44 | 44 | 0.62% | 0.73% |  |
| D | 7131 | 6066 | 12 | 12 | 0.17% | 0.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10069 | 61.3 | 755 | 740 | 152.2 |
| A | 3 | 137 | 7513 | 44.5 | 755 | 740 | 152.2 |
| A | 0 | 226 | 6467 | 37.63 | 755 | 740 | 152.2 |
| B | 6 | 159 | 1772391 | 12385.83 | 745 | 726 | 143.0 |
| B | 4 | 171 | 73419 | 508.2 | 745 | 726 | 143.0 |
| B | 0 | 190 | 32793 | 224.18 | 745 | 726 | 143.0 |
| C | 0 | 10 | 216154 | 1278.45 | 719 | 724 | 168.5 |
| C | 14 | 238 | 115388 | 680.46 | 719 | 724 | 168.5 |
| C | 15 | 208 | 16250 | 92.14 | 719 | 724 | 168.5 |
| D | 8 | 195 | 447447 | 2521.47 | 734 | 714 | 177.2 |
| D | 2 | 250 | 77752 | 434.82 | 734 | 714 | 177.2 |
| D | 2 | 234 | 33772 | 186.59 | 734 | 714 | 177.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

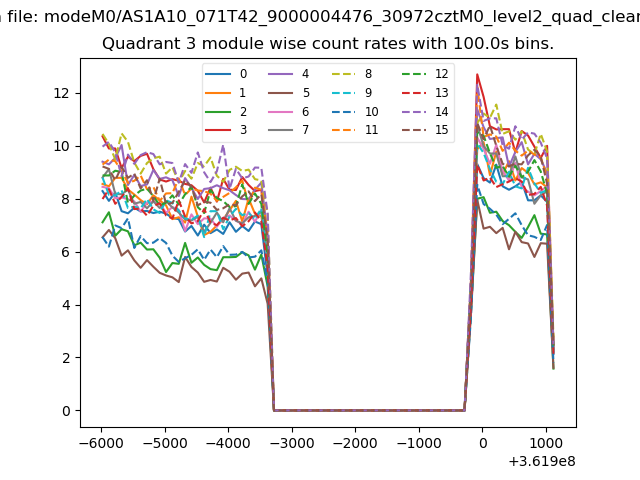

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

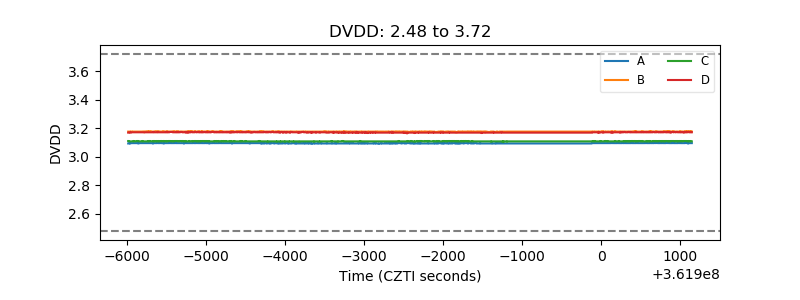

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

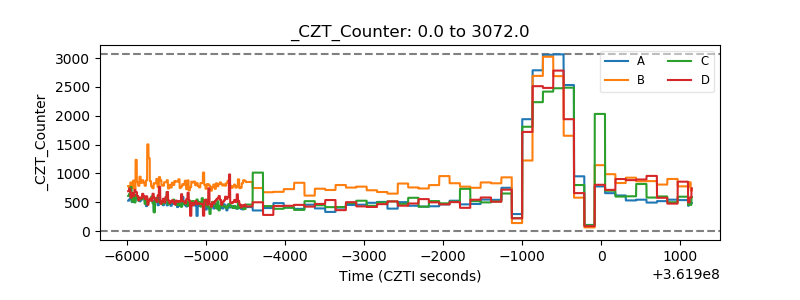

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

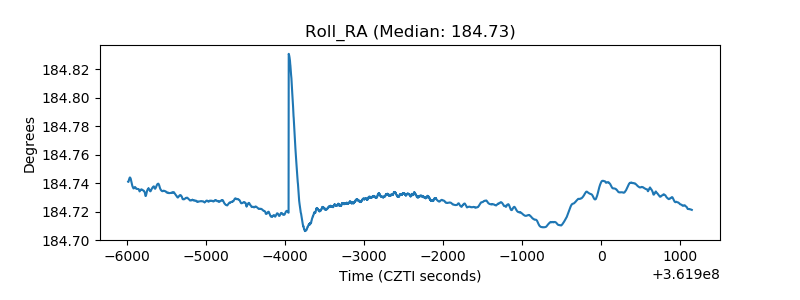

| _Roll_RA |  |

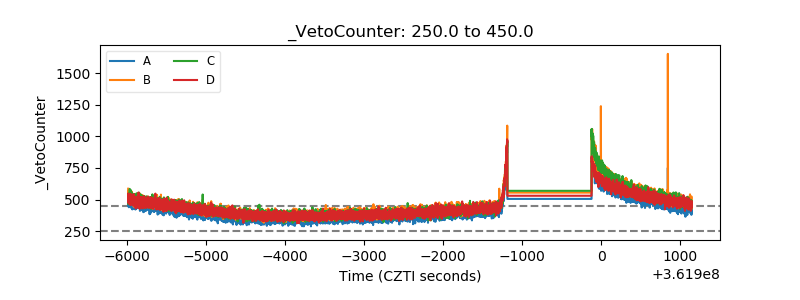

| Veto Counter |  |
