| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T42_9000004476_30977cztM0_level2.evt | modeM0/AS1A10_071T42_9000004476_30977cztM0_level2_quad_clean.evt |
| Size (bytes) | 544,703,040 | 90,878,400 |
| Size | 519.5 MB | 86.7 MB |
| Events in quadrant A | 3,251,287 | 604,274 |
| Events in quadrant B | 5,174,728 | 612,461 |
| Events in quadrant C | 3,925,760 | 555,754 |
| Events in quadrant D | 3,725,948 | 547,797 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13238 | 2 |
| B | 0 | 19138 | 2 |
| C | 0 | 15468 | 2 |
| D | 0 | 15031 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6185 | 17 | 0.274859% |
| B | 6185 | 83 | 1.341956% |
| C | 6185 | 251 | 4.058205% |
| D | 6185 | 84 | 1.358124% |

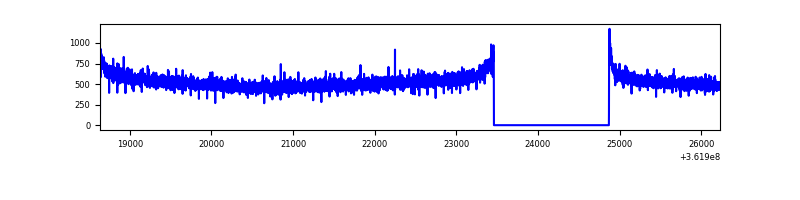

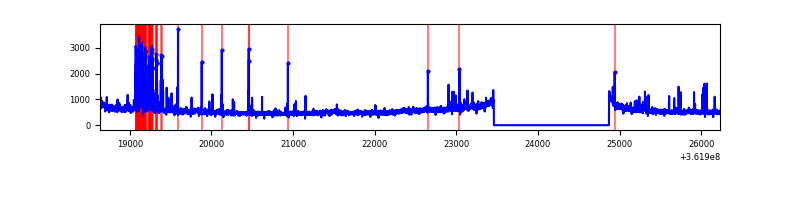

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7595 | 6186 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7595 | 6186 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7595 | 6186 | 148 | 148 | 1.95% | 2.39% |  |
| D | 7595 | 6186 | 80 | 80 | 1.05% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11650 | 64.69 | 842 | 828 | 167.3 |
| A | 3 | 137 | 7726 | 41.24 | 842 | 828 | 167.3 |
| A | 0 | 226 | 7147 | 37.77 | 842 | 828 | 167.3 |
| B | 6 | 159 | 1791935 | 11274.58 | 842 | 821 | 158.9 |
| B | 0 | 190 | 26448 | 161.31 | 842 | 821 | 158.9 |
| B | 4 | 80 | 22525 | 136.62 | 842 | 821 | 158.9 |
| C | 0 | 10 | 695843 | 3809.52 | 785 | 792 | 182.5 |
| C | 14 | 238 | 131065 | 714.02 | 785 | 792 | 182.5 |
| C | 2 | 114 | 14136 | 73.14 | 785 | 792 | 182.5 |
| D | 8 | 195 | 355077 | 1910.3 | 792 | 774 | 185.5 |
| D | 13 | 249 | 245012 | 1316.86 | 792 | 774 | 185.5 |
| D | 2 | 250 | 56847 | 302.33 | 792 | 774 | 185.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

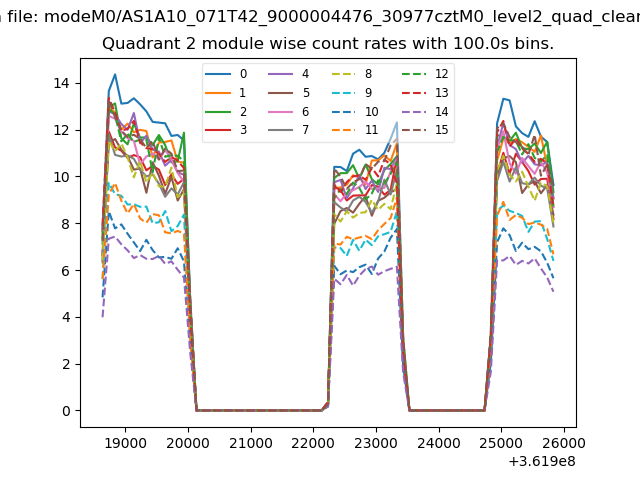

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

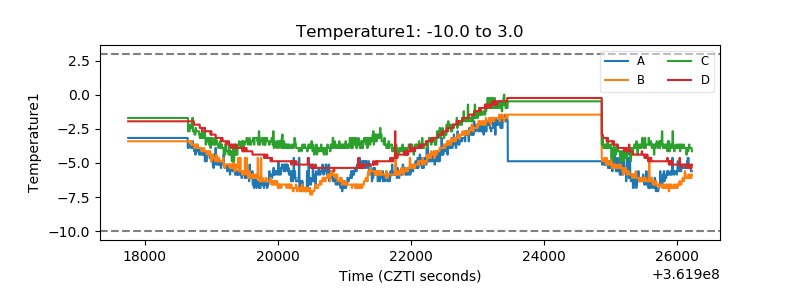

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

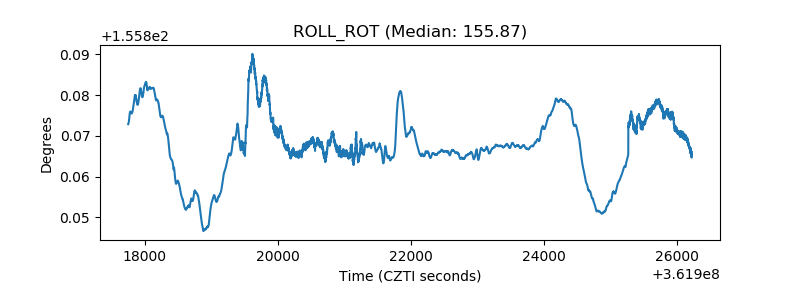

| _ROLL_ROT |  |

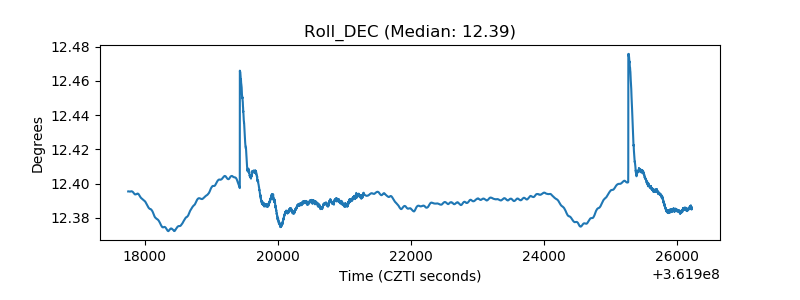

| _Roll_DEC |  |

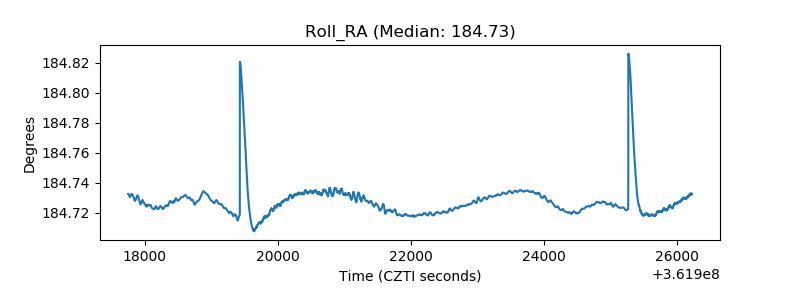

| _Roll_RA |  |

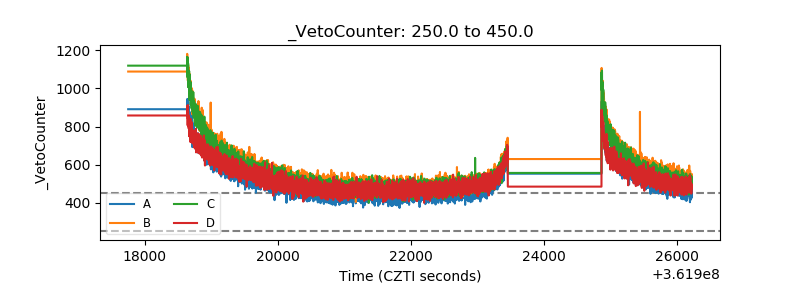

| Veto Counter |  |
