| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T48_9000004478_31004cztM0_level2.evt | modeM0/AS1A10_071T48_9000004478_31004cztM0_level2_quad_clean.evt |
| Size (bytes) | 120,792,960 | 30,265,920 |
| Size | 115.2 MB | 28.9 MB |
| Events in quadrant A | 698,461 | 211,777 |
| Events in quadrant B | 1,179,406 | 213,059 |
| Events in quadrant C | 813,221 | 202,260 |
| Events in quadrant D | 877,825 | 193,285 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2876 | 0 |
| B | 0 | 4398 | 0 |
| C | 0 | 3299 | 0 |
| D | 0 | 3459 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1272 | 0 | 0.000000% |
| B | 1273 | 11 | 0.864101% |
| C | 1273 | 14 | 1.099764% |
| D | 1273 | 44 | 3.456402% |

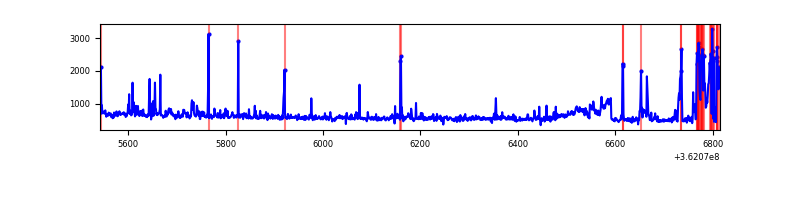

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1272 | 1272 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1273 | 1273 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1273 | 1273 | 1 | 1 | 0.08% | 0.08% |  |
| D | 1273 | 1273 | 33 | 33 | 2.59% | 2.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 2564 | 63.41 | 180 | 177 | 37.6 |
| A | 0 | 226 | 1612 | 38.12 | 180 | 177 | 37.6 |
| A | 3 | 137 | 1480 | 34.61 | 180 | 177 | 37.6 |
| B | 6 | 159 | 410327 | 11783.22 | 178 | 174 | 34.8 |
| B | 0 | 190 | 18598 | 529.3 | 178 | 174 | 34.8 |
| B | 0 | 155 | 17759 | 505.2 | 178 | 174 | 34.8 |
| C | 0 | 10 | 96801 | 2334.27 | 173 | 174 | 41.4 |
| C | 14 | 238 | 28172 | 676.36 | 173 | 174 | 41.4 |
| C | 2 | 114 | 3345 | 76.6 | 173 | 174 | 41.4 |
| D | 13 | 249 | 97099 | 2314.35 | 172 | 167 | 41.9 |
| D | 2 | 250 | 67918 | 1617.62 | 172 | 167 | 41.9 |
| D | 8 | 195 | 45185 | 1074.85 | 172 | 167 | 41.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

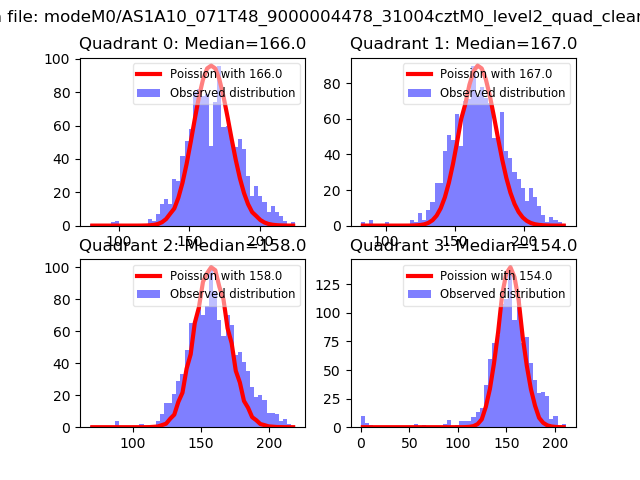

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

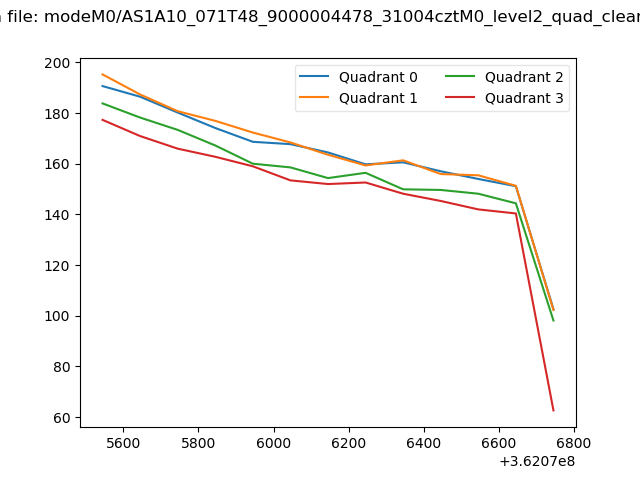

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

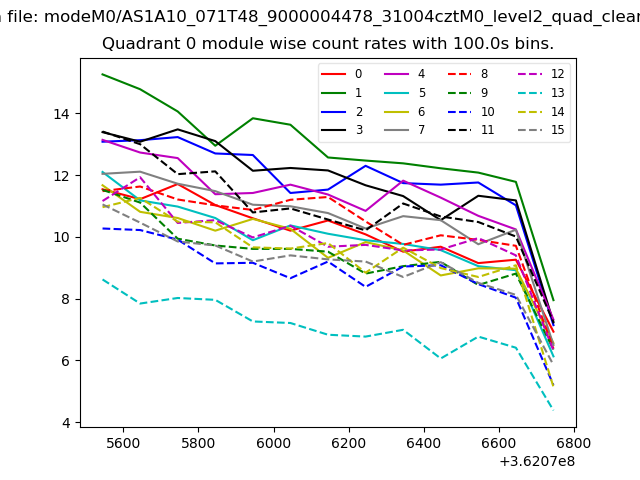

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

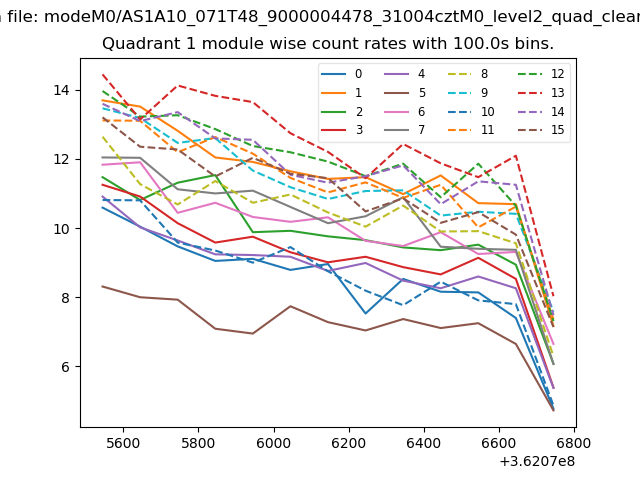

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

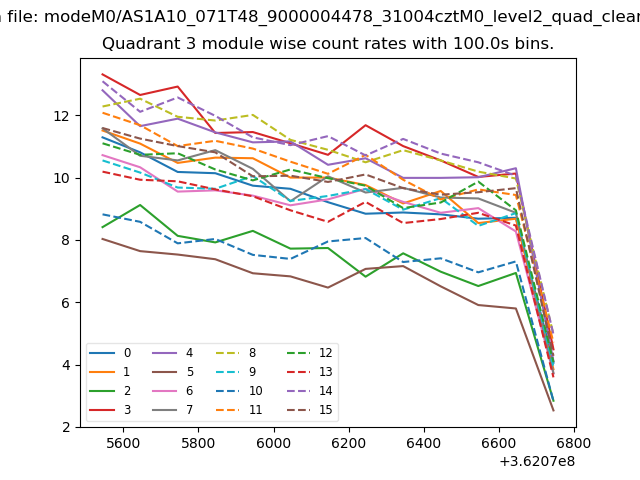

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

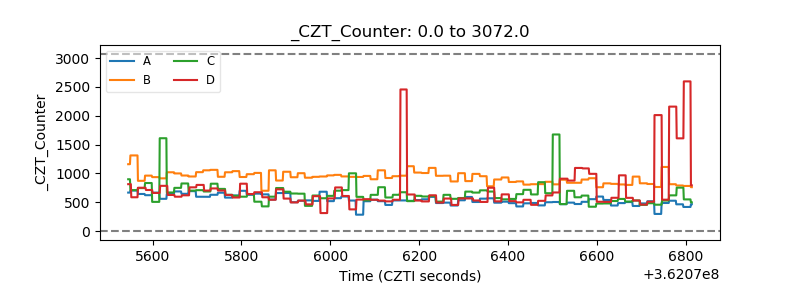

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

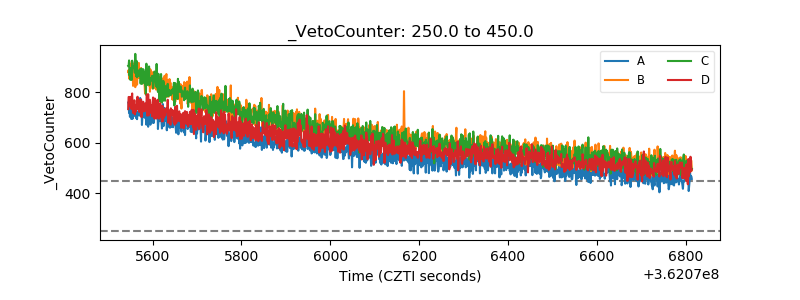

| Veto Counter |  |
