| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T52_9000004480_31006cztM0_level2.evt | modeM0/AS1A10_071T52_9000004480_31006cztM0_level2_quad_clean.evt |
| Size (bytes) | 565,367,040 | 94,374,720 |
| Size | 539.2 MB | 90.0 MB |
| Events in quadrant A | 3,227,729 | 633,435 |
| Events in quadrant B | 5,163,984 | 642,025 |
| Events in quadrant C | 4,044,120 | 578,403 |
| Events in quadrant D | 4,268,065 | 572,383 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13218 | 3 |
| B | 0 | 19245 | 2 |
| C | 0 | 15939 | 2 |
| D | 0 | 16710 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6184 | 21 | 0.339586% |
| B | 6184 | 96 | 1.552393% |
| C | 6184 | 290 | 4.689521% |
| D | 6184 | 201 | 3.250323% |

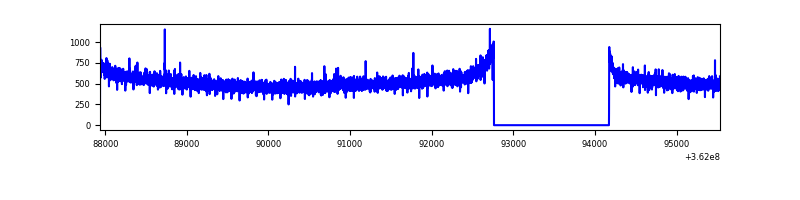

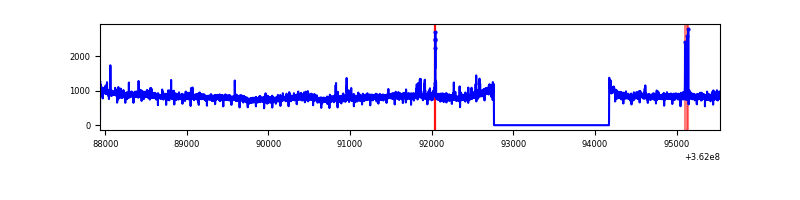

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7594 | 6185 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7594 | 6184 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7594 | 6185 | 196 | 196 | 2.58% | 3.17% |  |
| D | 7594 | 6185 | 169 | 169 | 2.23% | 2.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11718 | 65.72 | 836 | 822 | 165.8 |
| A | 3 | 137 | 7724 | 41.63 | 836 | 822 | 165.8 |
| A | 0 | 226 | 7115 | 37.96 | 836 | 822 | 165.8 |
| B | 6 | 159 | 1765806 | 11263.18 | 836 | 818 | 156.7 |
| B | 0 | 190 | 39461 | 246.6 | 836 | 818 | 156.7 |
| B | 0 | 230 | 30933 | 192.17 | 836 | 818 | 156.7 |
| C | 0 | 10 | 752552 | 4168.93 | 780 | 787 | 180.3 |
| C | 14 | 238 | 129323 | 712.8 | 780 | 787 | 180.3 |
| C | 3 | 233 | 79629 | 437.22 | 780 | 787 | 180.3 |
| D | 8 | 195 | 618140 | 3308.23 | 785 | 765 | 186.6 |
| D | 13 | 174 | 455204 | 2435.13 | 785 | 765 | 186.6 |
| D | 2 | 250 | 126392 | 673.18 | 785 | 765 | 186.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

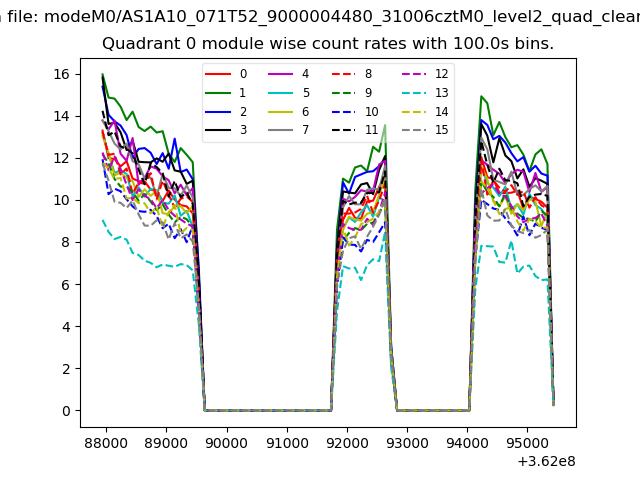

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

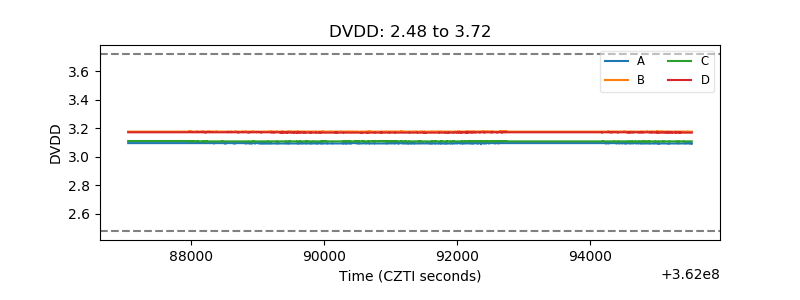

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

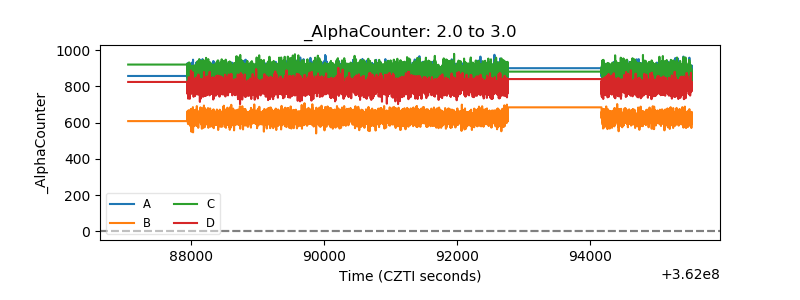

| Alpha Counter |  |

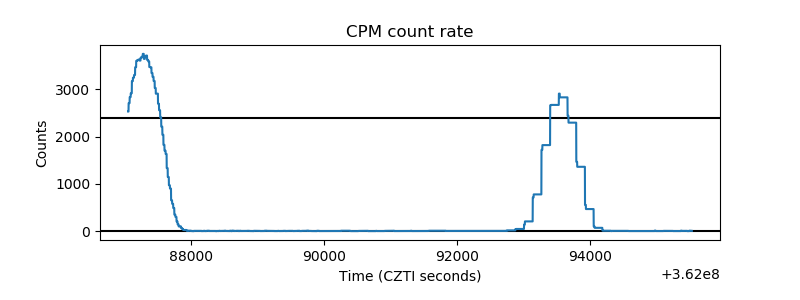

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

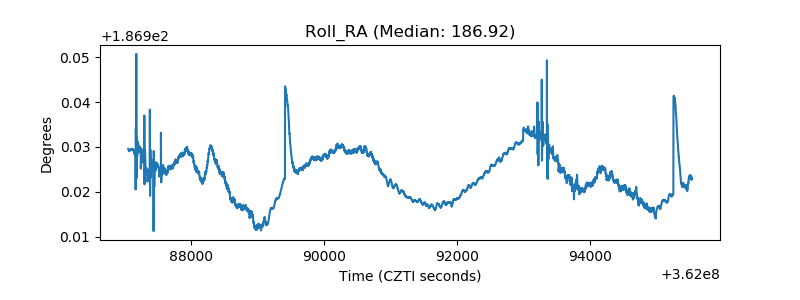

| _Roll_RA |  |

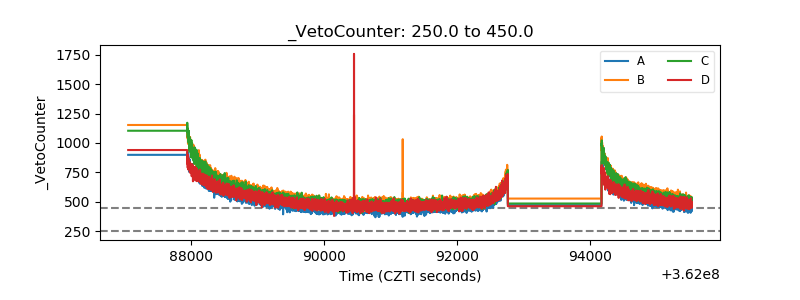

| Veto Counter |  |
