| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T52_9000004480_31019cztM0_level2.evt | modeM0/AS1A10_071T52_9000004480_31019cztM0_level2_quad_clean.evt |
| Size (bytes) | 175,671,360 | 40,032,000 |
| Size | 167.5 MB | 38.2 MB |
| Events in quadrant A | 926,202 | 286,279 |
| Events in quadrant B | 1,521,421 | 287,589 |
| Events in quadrant C | 1,302,812 | 255,022 |
| Events in quadrant D | 1,453,784 | 259,463 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3811 | 1 |
| B | 0 | 5636 | 1 |
| C | 0 | 4974 | 1 |
| D | 0 | 5525 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1680 | 2 | 0.119048% |
| B | 1680 | 12 | 0.714286% |
| C | 1680 | 113 | 6.726190% |
| D | 1680 | 15 | 0.892857% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

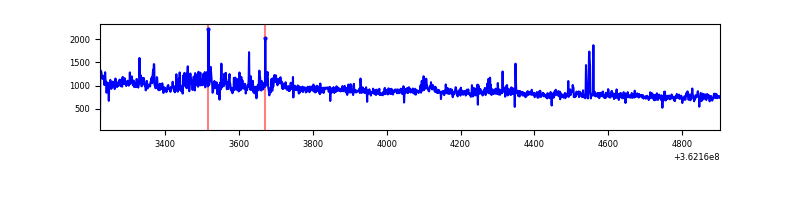

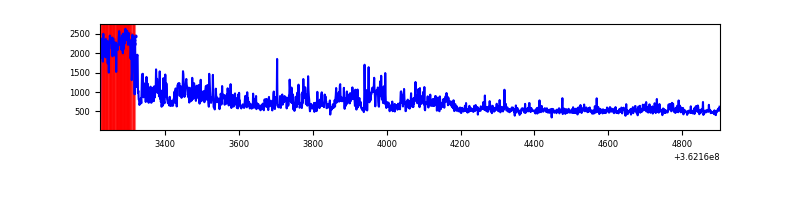

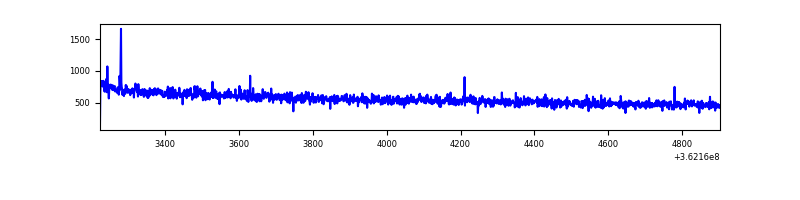

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1680 | 1680 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1680 | 1680 | 2 | 2 | 0.12% | 0.12% |  |
| C | 1680 | 1680 | 81 | 81 | 4.82% | 4.82% |  |
| D | 1680 | 1680 | 10 | 10 | 0.60% | 0.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 3483 | 67.16 | 239 | 234 | 48.4 |
| A | 5 | 168 | 2768 | 52.38 | 239 | 234 | 48.4 |
| A | 0 | 226 | 2146 | 39.52 | 239 | 234 | 48.4 |
| B | 6 | 159 | 497129 | 11030.3 | 237 | 232 | 45.0 |
| B | 0 | 155 | 51135 | 1129.96 | 237 | 232 | 45.0 |
| B | 0 | 190 | 14963 | 327.0 | 237 | 232 | 45.0 |
| C | 0 | 10 | 415277 | 8140.17 | 215 | 217 | 51.0 |
| C | 14 | 238 | 34885 | 679.91 | 215 | 217 | 51.0 |
| C | 4 | 175 | 6808 | 129.26 | 215 | 217 | 51.0 |
| D | 8 | 195 | 408003 | 7415.05 | 229 | 223 | 55.0 |
| D | 13 | 174 | 103623 | 1880.22 | 229 | 223 | 55.0 |
| D | 1 | 52 | 45069 | 815.48 | 229 | 223 | 55.0 |

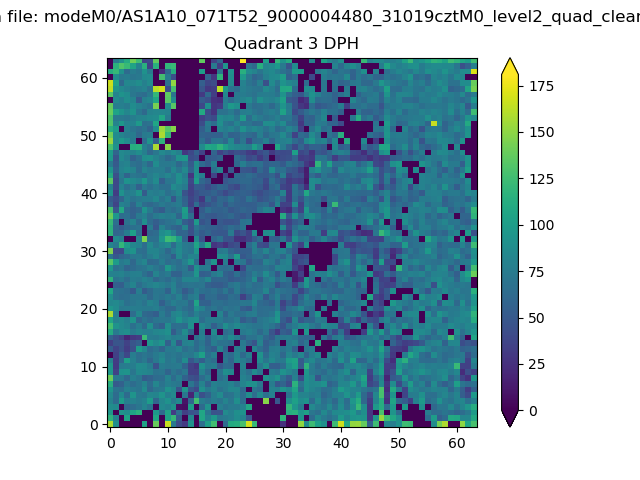

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

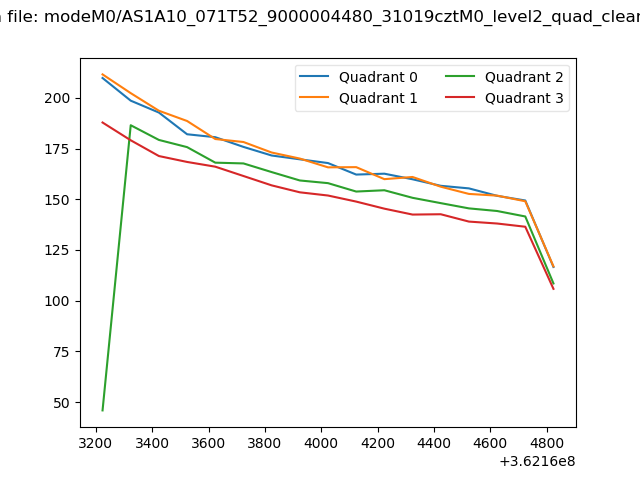

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

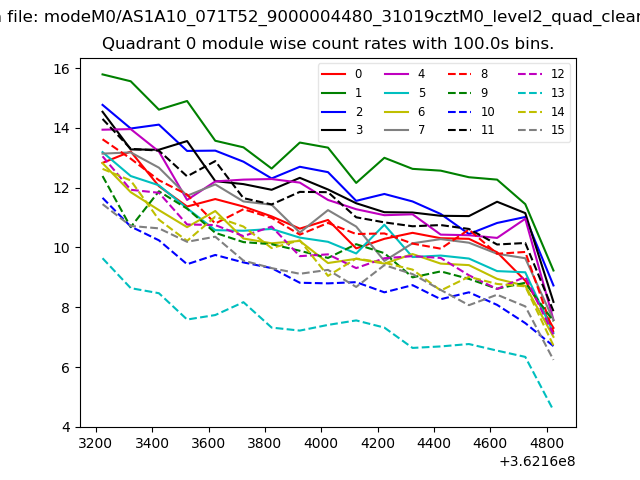

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

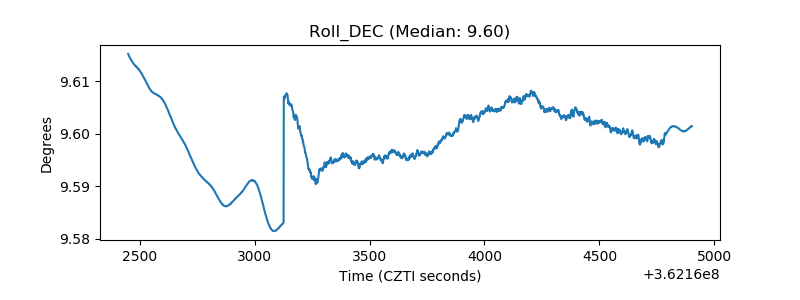

| _Roll_DEC |  |

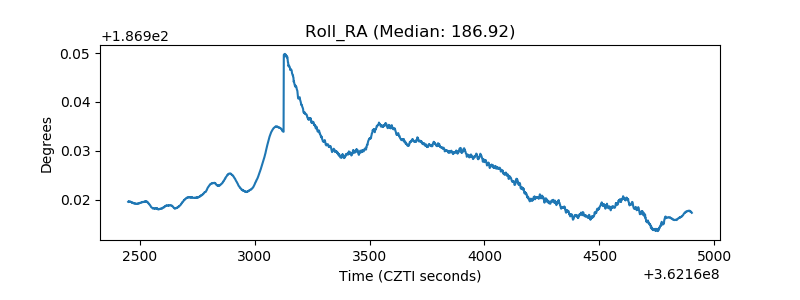

| _Roll_RA |  |
| Veto Counter |  |
