| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T54_9000004482_31020cztM0_level2.evt | modeM0/AS1A10_071T54_9000004482_31020cztM0_level2_quad_clean.evt |
| Size (bytes) | 612,835,200 | 93,997,440 |
| Size | 584.4 MB | 89.6 MB |
| Events in quadrant A | 3,211,651 | 640,843 |
| Events in quadrant B | 5,157,982 | 652,028 |
| Events in quadrant C | 3,778,603 | 581,912 |
| Events in quadrant D | 6,000,738 | 547,377 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13189 | 2 |
| B | 0 | 19160 | 2 |
| C | 0 | 14798 | 2 |
| D | 0 | 22123 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6079 | 40 | 0.658003% |
| B | 6079 | 117 | 1.924659% |
| C | 6079 | 287 | 4.721171% |
| D | 6078 | 1130 | 18.591642% |

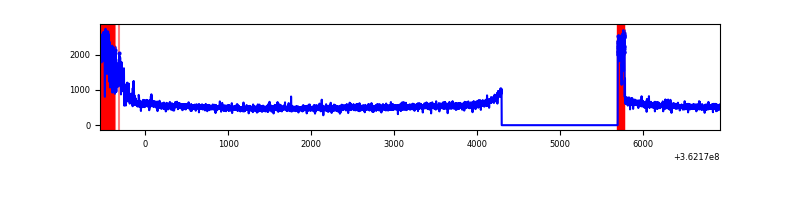

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7479 | 6080 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7479 | 6079 | 7 | 7 | 0.09% | 0.12% |  |
| C | 7479 | 6079 | 184 | 184 | 2.46% | 3.03% |  |
| D | 7478 | 6079 | 403 | 403 | 5.39% | 6.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11862 | 66.88 | 832 | 821 | 165.1 |
| A | 3 | 137 | 7823 | 42.42 | 832 | 821 | 165.1 |
| A | 0 | 226 | 7029 | 37.61 | 832 | 821 | 165.1 |
| B | 6 | 159 | 1735406 | 11138.13 | 831 | 814 | 155.7 |
| B | 0 | 190 | 68692 | 435.86 | 831 | 814 | 155.7 |
| B | 0 | 183 | 41126 | 258.85 | 831 | 814 | 155.7 |
| C | 0 | 10 | 608832 | 3387.33 | 770 | 775 | 179.5 |
| C | 14 | 238 | 125432 | 694.43 | 770 | 775 | 179.5 |
| C | 4 | 175 | 24510 | 132.22 | 770 | 775 | 179.5 |
| D | 13 | 174 | 2439505 | 13998.62 | 739 | 722 | 174.2 |
| D | 8 | 195 | 505393 | 2896.81 | 739 | 722 | 174.2 |
| D | 13 | 249 | 116876 | 666.72 | 739 | 722 | 174.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

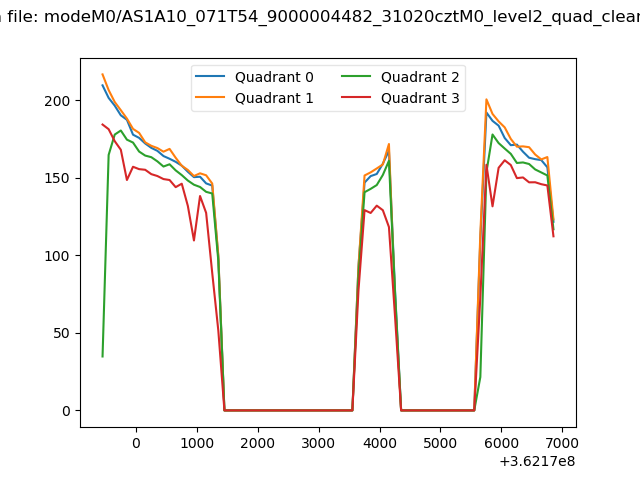

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

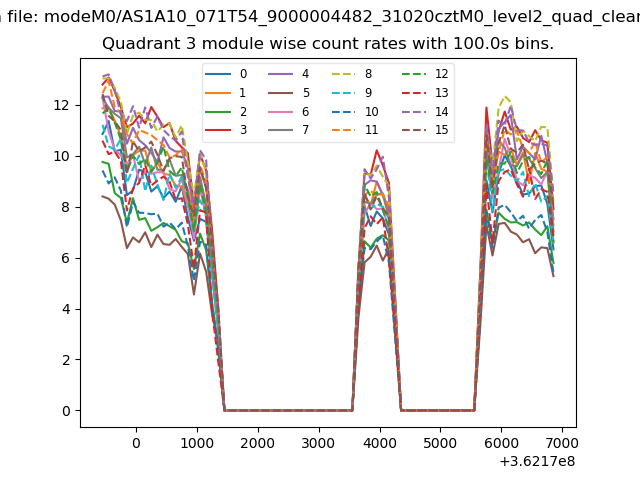

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

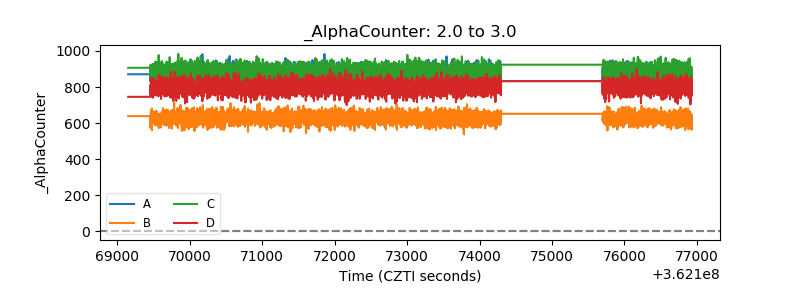

| Alpha Counter |  |

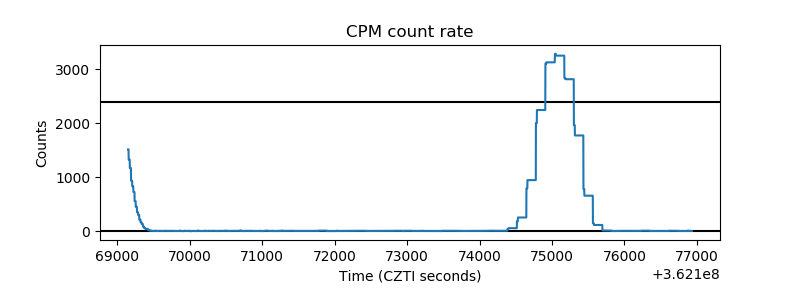

| _CPM_Rate |  |

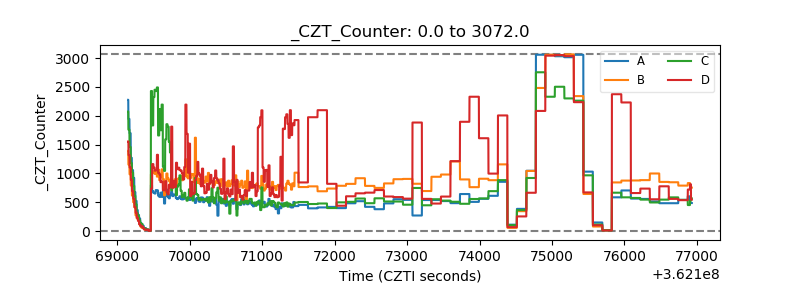

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

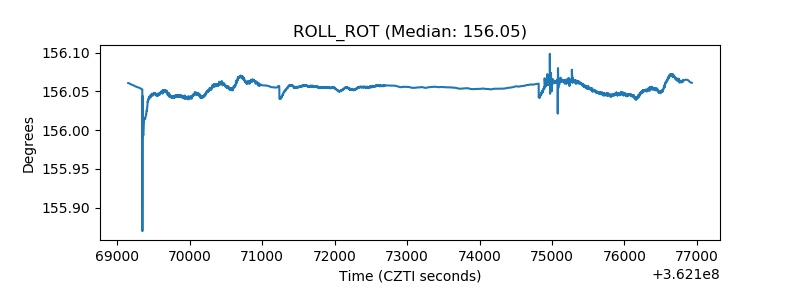

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

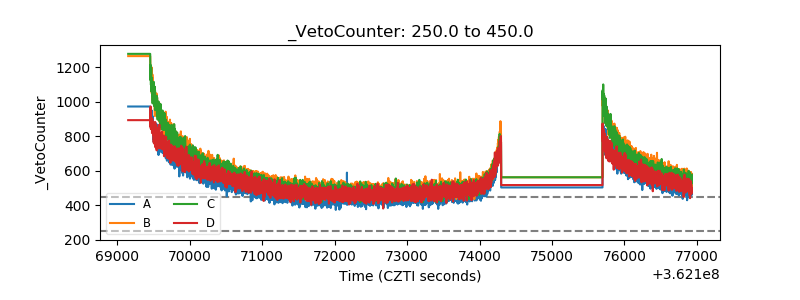

| Veto Counter |  |
