| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T56_9000004484_31036cztM0_level2.evt | modeM0/AS1A10_071T56_9000004484_31036cztM0_level2_quad_clean.evt |
| Size (bytes) | 551,548,800 | 89,887,680 |
| Size | 526.0 MB | 85.7 MB |
| Events in quadrant A | 3,238,145 | 592,720 |
| Events in quadrant B | 5,258,121 | 590,150 |
| Events in quadrant C | 3,509,949 | 557,720 |
| Events in quadrant D | 4,269,325 | 540,020 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13406 | 2 |
| B | 0 | 19789 | 2 |
| C | 0 | 14154 | 2 |
| D | 0 | 16808 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6334 | 46 | 0.726239% |
| B | 6334 | 184 | 2.904957% |
| C | 6334 | 182 | 2.873382% |
| D | 6334 | 79 | 1.247237% |

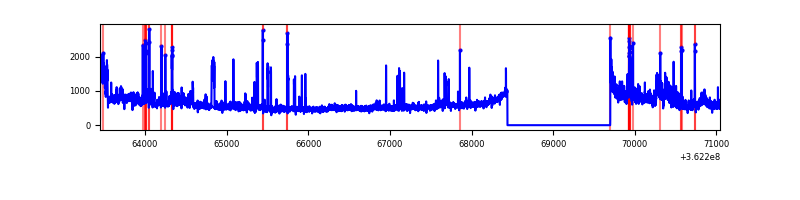

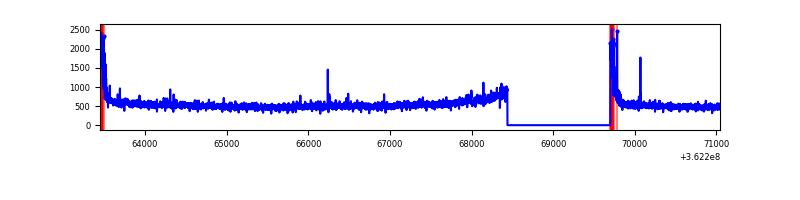

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7594 | 6334 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7594 | 6334 | 40 | 40 | 0.53% | 0.63% |  |
| C | 7594 | 6334 | 31 | 31 | 0.41% | 0.49% |  |
| D | 7594 | 6335 | 39 | 39 | 0.51% | 0.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11713 | 64.91 | 839 | 824 | 167.8 |
| A | 3 | 137 | 8052 | 43.09 | 839 | 824 | 167.8 |
| A | 0 | 226 | 7067 | 37.22 | 839 | 824 | 167.8 |
| B | 6 | 159 | 1781019 | 11283.79 | 829 | 808 | 157.8 |
| B | 5 | 172 | 101085 | 635.6 | 829 | 808 | 157.8 |
| B | 0 | 190 | 60758 | 379.99 | 829 | 808 | 157.8 |
| C | 0 | 10 | 159192 | 856.17 | 793 | 799 | 185.0 |
| C | 14 | 238 | 129318 | 694.69 | 793 | 799 | 185.0 |
| C | 3 | 233 | 96020 | 514.7 | 793 | 799 | 185.0 |
| D | 8 | 195 | 664192 | 3474.9 | 794 | 774 | 190.9 |
| D | 13 | 174 | 506797 | 2650.48 | 794 | 774 | 190.9 |
| D | 13 | 249 | 55071 | 284.4 | 794 | 774 | 190.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

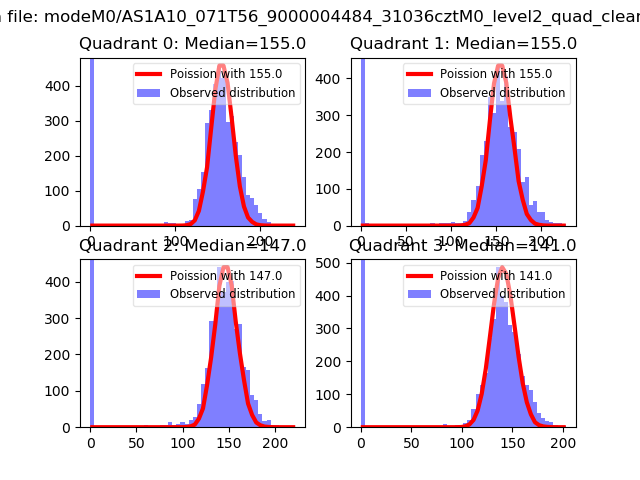

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

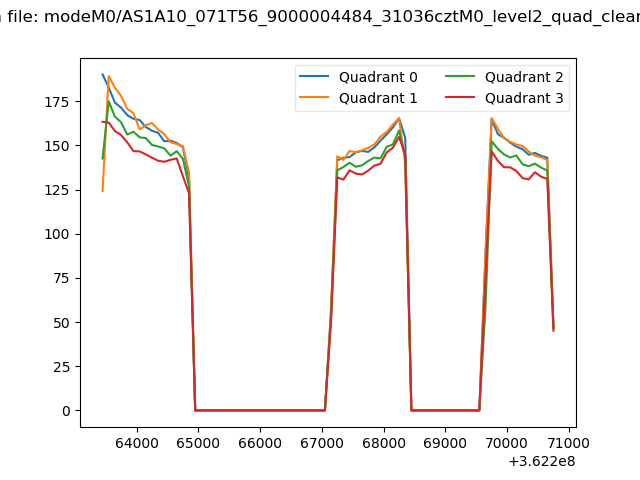

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

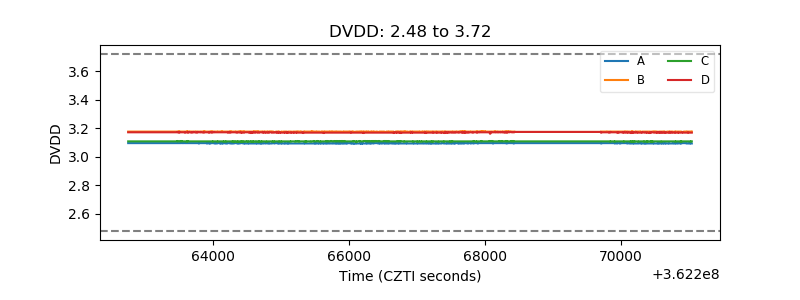

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

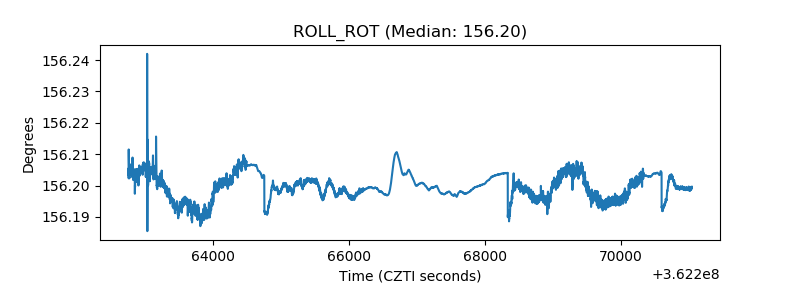

| _ROLL_ROT |  |
| _Roll_DEC |  |

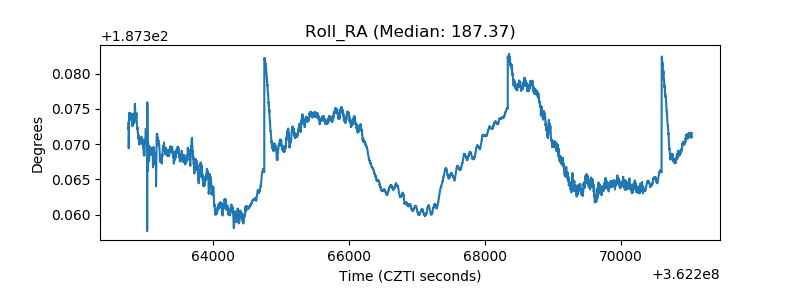

| _Roll_RA |  |

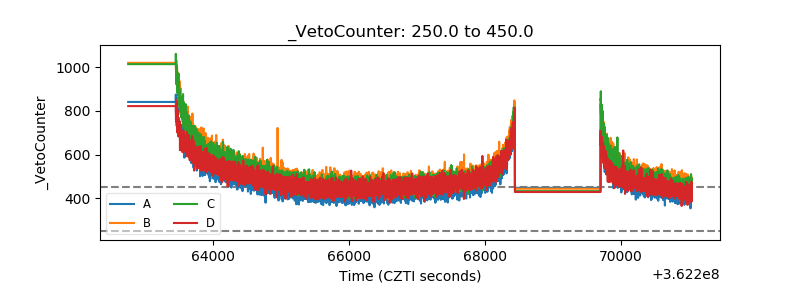

| Veto Counter |  |
