| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T56_9000004484_31037cztM0_level2.evt | modeM0/AS1A10_071T56_9000004484_31037cztM0_level2_quad_clean.evt |
| Size (bytes) | 276,632,640 | 28,998,720 |
| Size | 263.8 MB | 27.7 MB |
| Events in quadrant A | 1,582,098 | 166,111 |
| Events in quadrant B | 2,650,224 | 166,843 |
| Events in quadrant C | 1,699,647 | 154,619 |
| Events in quadrant D | 2,215,582 | 150,550 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6843 | 1 |
| B | 0 | 10199 | 1 |
| C | 0 | 7068 | 1 |
| D | 0 | 8702 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68 | 0 |
| B | 0 | 68 | 0 |
| C | 0 | 68 | 0 |
| D | 0 | 68 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3370 | 3 | 0.089021% |
| B | 3370 | 21 | 0.623145% |
| C | 3370 | 46 | 1.364985% |
| D | 3370 | 25 | 0.741840% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3370 | 3370 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3370 | 3370 | 1 | 1 | 0.03% | 0.03% |  |
| C | 3370 | 3370 | 16 | 16 | 0.47% | 0.47% |  |
| D | 3370 | 3370 | 41 | 41 | 1.22% | 1.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 6098 | 67.83 | 410 | 402 | 84.0 |
| A | 3 | 137 | 4022 | 43.11 | 410 | 402 | 84.0 |
| A | 0 | 226 | 3370 | 35.34 | 410 | 402 | 84.0 |
| B | 6 | 159 | 997576 | 12619.2 | 410 | 400 | 79.0 |
| B | 0 | 183 | 21212 | 263.37 | 410 | 400 | 79.0 |
| B | 12 | 111 | 9486 | 114.98 | 410 | 400 | 79.0 |
| C | 0 | 10 | 69346 | 740.19 | 390 | 394 | 93.2 |
| C | 14 | 238 | 62975 | 671.8 | 390 | 394 | 93.2 |
| C | 3 | 233 | 20388 | 214.63 | 390 | 394 | 93.2 |
| D | 8 | 195 | 409476 | 4337.95 | 388 | 378 | 94.3 |
| D | 13 | 174 | 294423 | 3117.97 | 388 | 378 | 94.3 |
| D | 13 | 249 | 33000 | 345.91 | 388 | 378 | 94.3 |

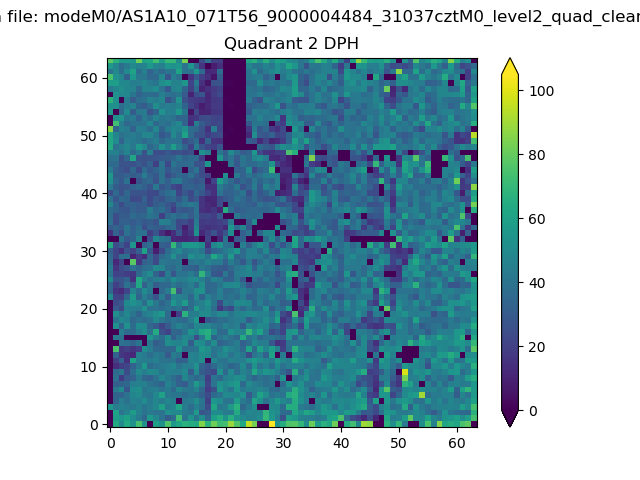

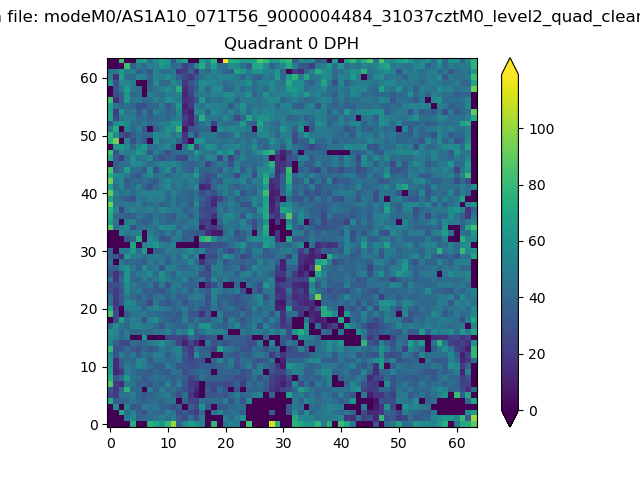

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

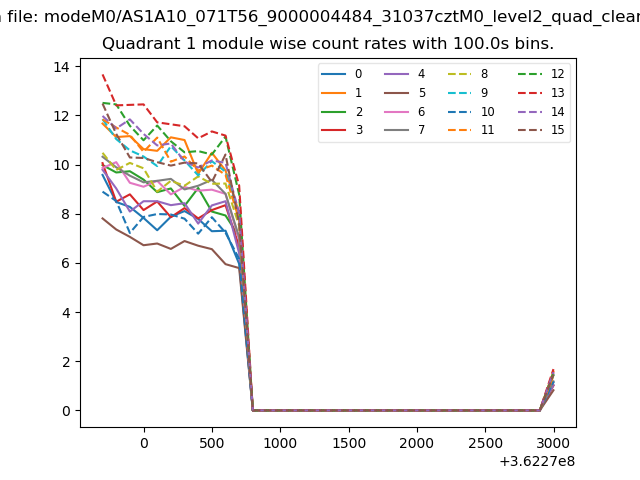

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

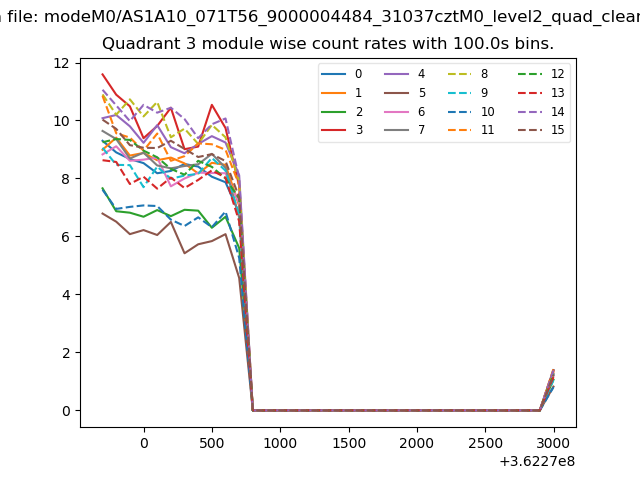

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

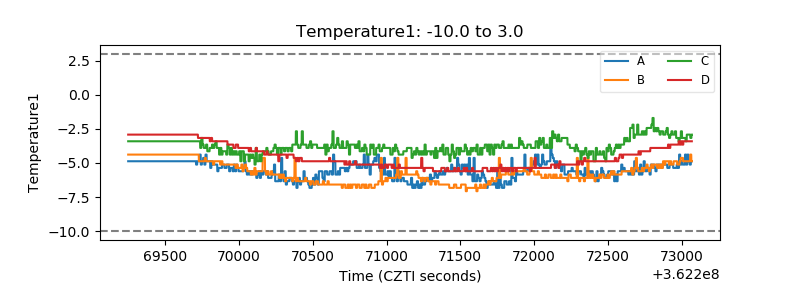

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
