| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T01_9000004490_31055cztM0_level2.evt | modeM0/AS1C06_002T01_9000004490_31055cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,104,320 | 57,853,440 |
| Size | 454.0 MB | 55.2 MB |
| Events in quadrant A | 1,863,752 | 421,867 |
| Events in quadrant B | 3,194,980 | 411,783 |
| Events in quadrant C | 1,987,114 | 410,076 |
| Events in quadrant D | 7,104,203 | 227,969 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8089 | 1 |
| B | 0 | 12328 | 1 |
| C | 0 | 8260 | 1 |
| D | 0 | 23900 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 82 | 0 |
| B | 0 | 82 | 0 |
| C | 0 | 82 | 0 |
| D | 0 | 82 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3951 | 86 | 2.176664% |
| B | 3951 | 206 | 5.213870% |
| C | 3950 | 123 | 3.113924% |
| D | 3951 | 2238 | 56.643888% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4251 | 3952 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4251 | 3952 | 24 | 24 | 0.56% | 0.61% |  |
| C | 4250 | 3951 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4251 | 3952 | 2009 | 2009 | 47.26% | 50.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7246 | 68.9 | 481 | 468 | 98.4 |
| A | 3 | 137 | 5093 | 47.01 | 481 | 468 | 98.4 |
| A | 0 | 226 | 4024 | 36.15 | 481 | 468 | 98.4 |
| B | 6 | 159 | 1098576 | 11836.95 | 476 | 460 | 92.8 |
| B | 5 | 172 | 112980 | 1212.89 | 476 | 460 | 92.8 |
| B | 0 | 155 | 56086 | 599.61 | 476 | 460 | 92.8 |
| C | 14 | 238 | 75952 | 685.01 | 468 | 469 | 110.2 |
| C | 3 | 233 | 32594 | 291.53 | 468 | 469 | 110.2 |
| C | 1 | 16 | 18676 | 165.23 | 468 | 469 | 110.2 |
| D | 13 | 174 | 5209496 | 73021.37 | 297 | 289 | 71.3 |
| D | 8 | 195 | 656358 | 9196.61 | 297 | 289 | 71.3 |
| D | 2 | 250 | 48147 | 670.86 | 297 | 289 | 71.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

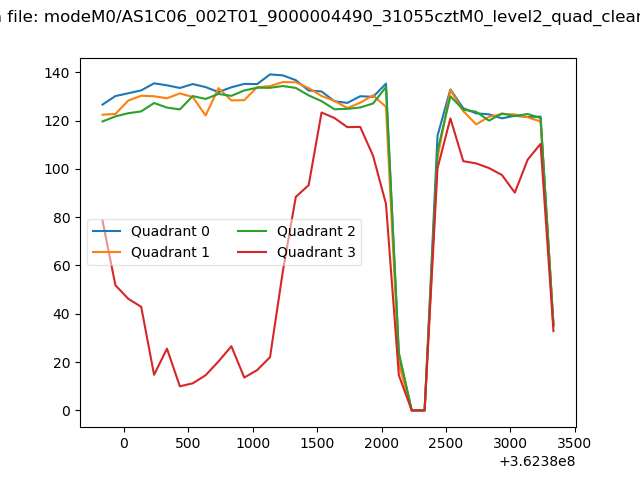

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

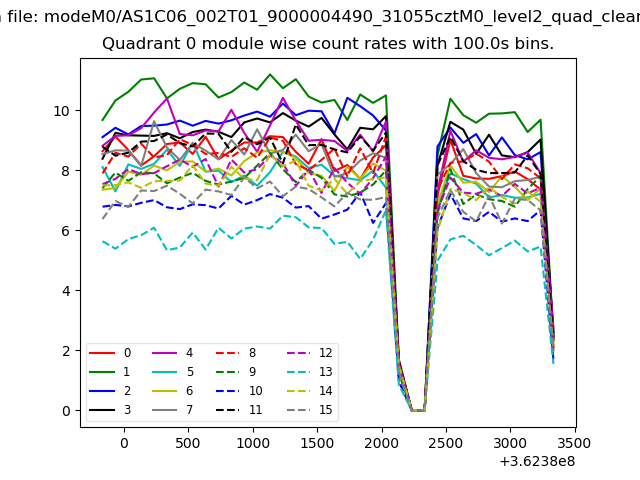

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

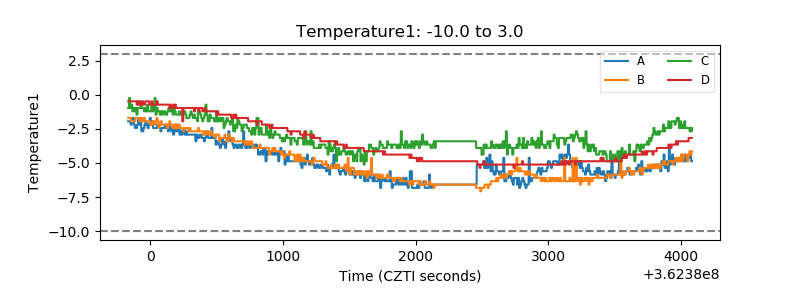

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

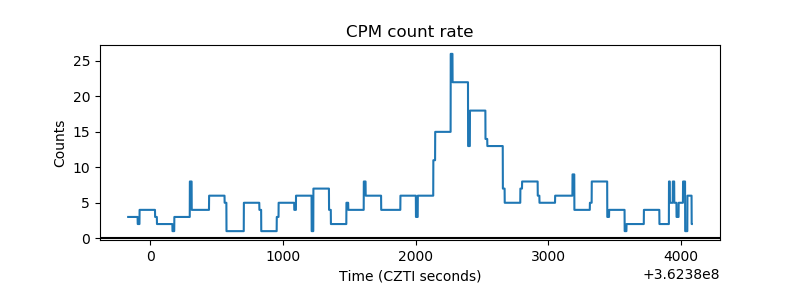

| _CPM_Rate |  |

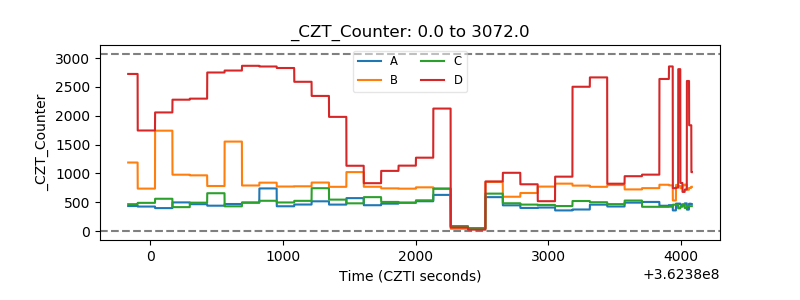

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

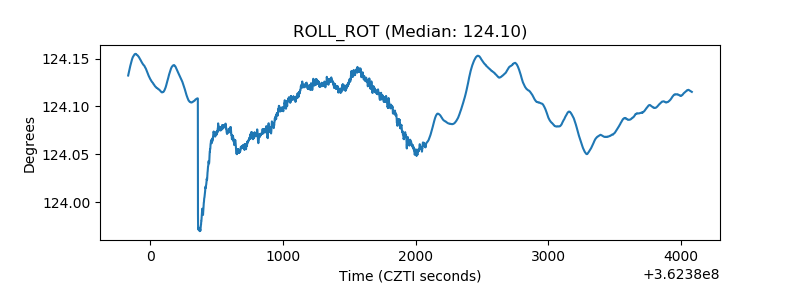

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

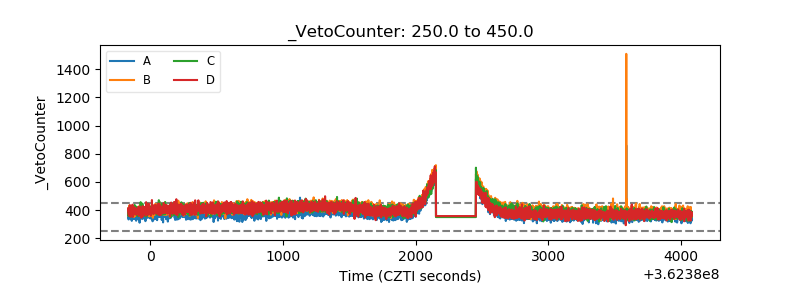

| Veto Counter |  |
