| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T01_9000004490_31063cztM0_level2.evt | modeM0/AS1C06_002T01_9000004490_31063cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,071,040 | 120,870,720 |
| Size | 546.5 MB | 115.3 MB |
| Events in quadrant A | 3,121,975 | 826,570 |
| Events in quadrant B | 5,338,435 | 820,325 |
| Events in quadrant C | 3,506,656 | 820,842 |
| Events in quadrant D | 4,981,803 | 773,041 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13219 | 1 |
| B | 0 | 20334 | 1 |
| C | 0 | 14429 | 1 |
| D | 0 | 18881 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6016 | 47 | 0.781250% |
| B | 6017 | 143 | 2.376600% |
| C | 6017 | 166 | 2.758850% |
| D | 6016 | 199 | 3.307846% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7356 | 6017 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7357 | 6018 | 9 | 9 | 0.12% | 0.15% |  |
| C | 7357 | 6018 | 13 | 13 | 0.18% | 0.22% |  |
| D | 7356 | 6017 | 112 | 112 | 1.52% | 1.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14189 | 85.03 | 807 | 793 | 157.5 |
| A | 0 | 226 | 7051 | 39.72 | 807 | 793 | 157.5 |
| A | 3 | 137 | 6941 | 39.02 | 807 | 793 | 157.5 |
| B | 6 | 159 | 1958792 | 13409.13 | 802 | 784 | 146.0 |
| B | 0 | 183 | 80057 | 542.89 | 802 | 784 | 146.0 |
| B | 5 | 172 | 40087 | 269.16 | 802 | 784 | 146.0 |
| C | 14 | 238 | 128096 | 696.22 | 797 | 805 | 182.8 |
| C | 3 | 233 | 94972 | 515.05 | 797 | 805 | 182.8 |
| C | 0 | 10 | 92554 | 501.83 | 797 | 805 | 182.8 |
| D | 8 | 195 | 1523742 | 8218.85 | 789 | 772 | 185.3 |
| D | 13 | 249 | 117966 | 632.45 | 789 | 772 | 185.3 |
| D | 12 | 6 | 109670 | 587.68 | 789 | 772 | 185.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

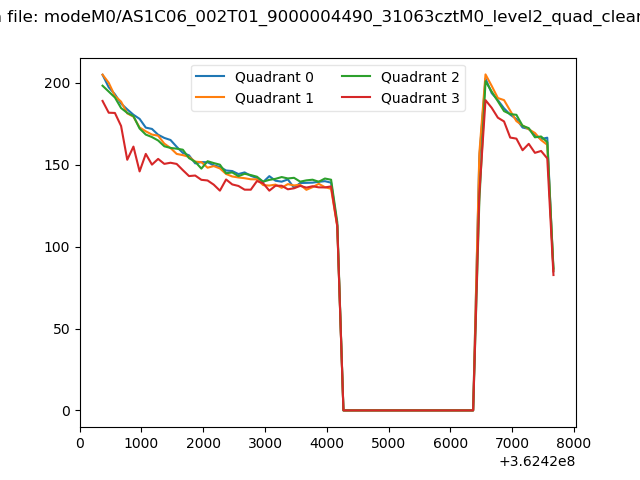

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

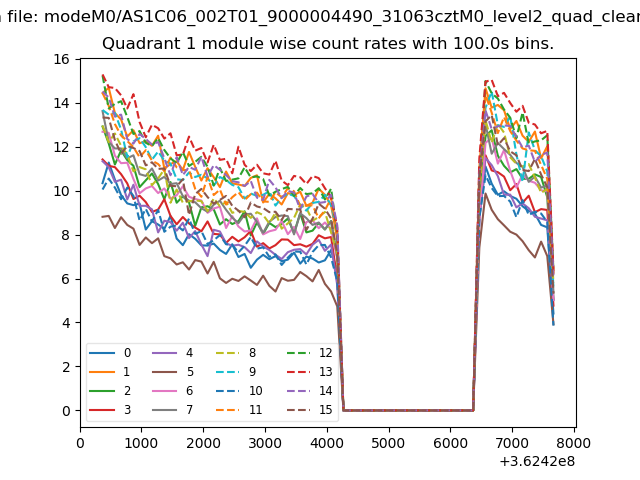

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

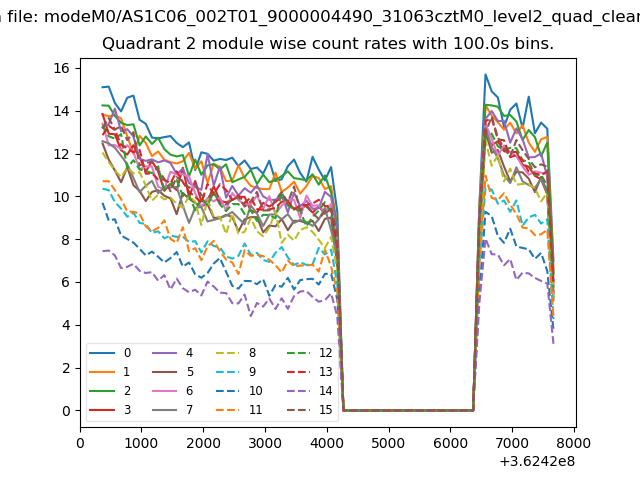

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

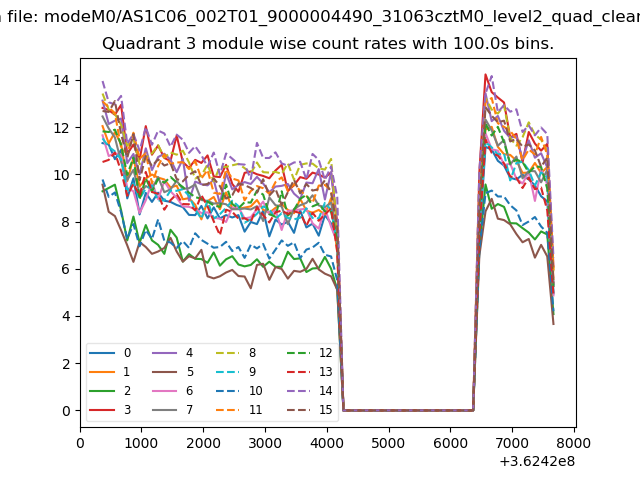

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
