| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T01_9000004490_31069cztM0_level2.evt | modeM0/AS1C06_002T01_9000004490_31069cztM0_level2_quad_clean.evt |
| Size (bytes) | 625,944,960 | 116,729,280 |
| Size | 596.9 MB | 111.3 MB |
| Events in quadrant A | 3,462,581 | 771,453 |
| Events in quadrant B | 6,282,954 | 752,787 |
| Events in quadrant C | 3,691,783 | 754,850 |
| Events in quadrant D | 5,002,488 | 724,905 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15532 | 1 |
| B | 0 | 24295 | 1 |
| C | 0 | 16019 | 1 |
| D | 0 | 20118 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7626 | 189 | 2.478363% |
| B | 7627 | 445 | 5.834535% |
| C | 7626 | 254 | 3.330711% |
| D | 7626 | 404 | 5.297666% |

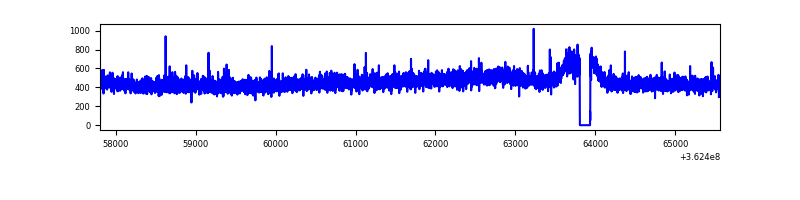

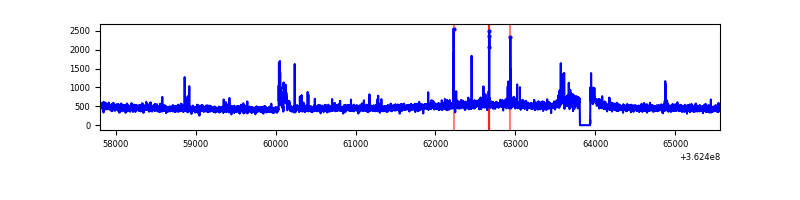

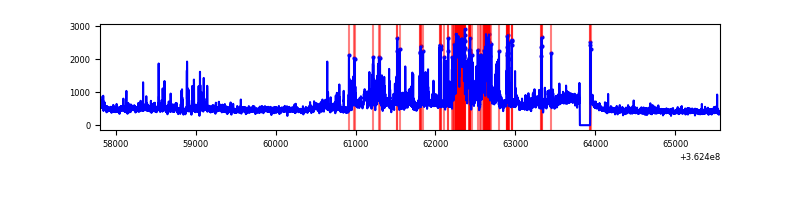

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7756 | 7627 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7757 | 7628 | 132 | 132 | 1.70% | 1.73% |  |
| C | 7756 | 7627 | 5 | 5 | 0.06% | 0.07% |  |
| D | 7756 | 7627 | 199 | 199 | 2.57% | 2.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13811 | 71.67 | 896 | 877 | 180.5 |
| A | 3 | 137 | 9209 | 46.17 | 896 | 877 | 180.5 |
| A | 0 | 226 | 7511 | 36.76 | 896 | 877 | 180.5 |
| B | 6 | 159 | 2187809 | 13089.52 | 880 | 856 | 167.1 |
| B | 5 | 172 | 399103 | 2383.62 | 880 | 856 | 167.1 |
| B | 0 | 190 | 146638 | 872.55 | 880 | 856 | 167.1 |
| C | 14 | 238 | 138559 | 674.34 | 866 | 869 | 204.2 |
| C | 0 | 10 | 98446 | 477.88 | 866 | 869 | 204.2 |
| C | 12 | 175 | 42730 | 205.01 | 866 | 869 | 204.2 |
| D | 8 | 195 | 671743 | 3277.97 | 859 | 835 | 204.7 |
| D | 13 | 174 | 489665 | 2388.36 | 859 | 835 | 204.7 |
| D | 13 | 249 | 440001 | 2145.71 | 859 | 835 | 204.7 |

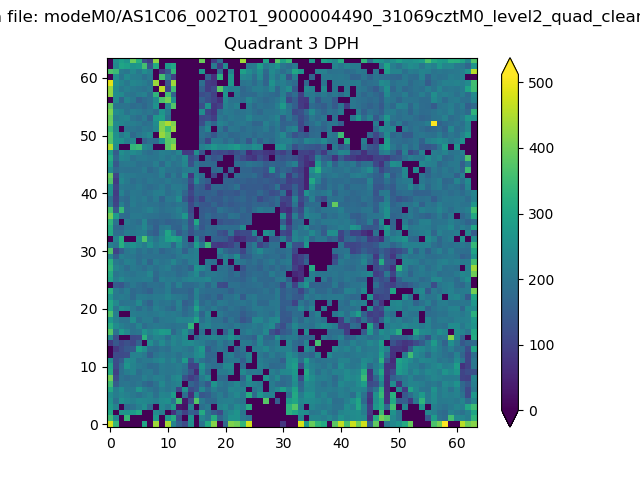

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

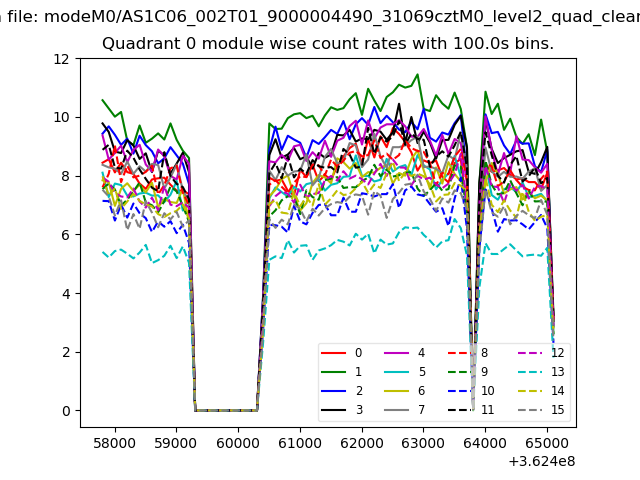

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

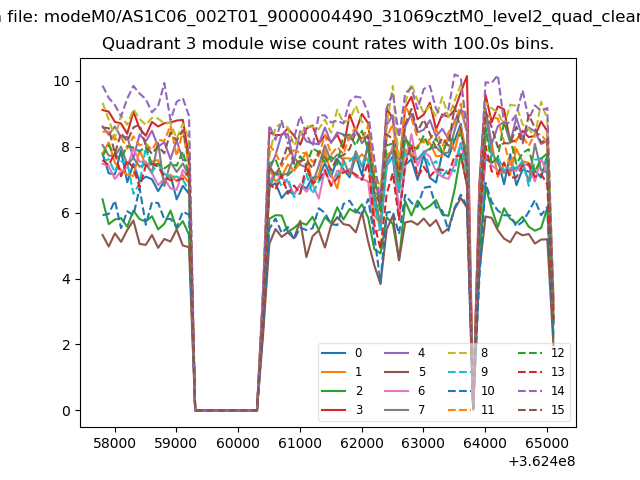

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

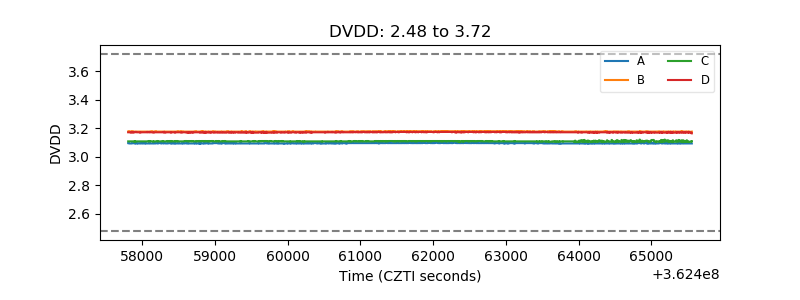

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

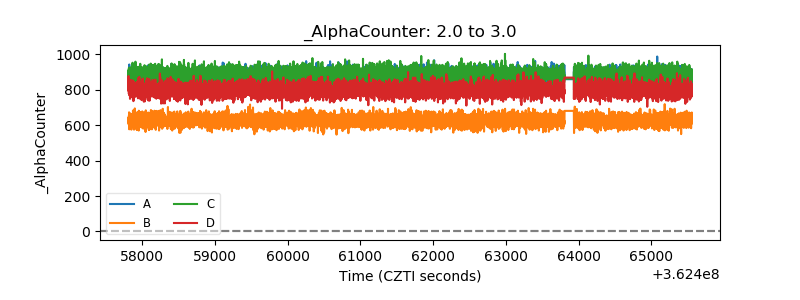

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
