| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_109T01_9000004492_31080cztM0_level2.evt | modeM0/AS1A10_109T01_9000004492_31080cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,209,600 | 111,862,080 |
| Size | 533.3 MB | 106.7 MB |
| Events in quadrant A | 3,269,433 | 747,269 |
| Events in quadrant B | 5,246,916 | 752,217 |
| Events in quadrant C | 3,836,015 | 722,944 |
| Events in quadrant D | 4,144,559 | 713,333 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13741 | 3 |
| B | 0 | 19933 | 2 |
| C | 0 | 15376 | 2 |
| D | 0 | 16621 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6481 | 23 | 0.354884% |
| B | 6481 | 119 | 1.836136% |
| C | 6481 | 226 | 3.487116% |
| D | 6481 | 66 | 1.018361% |

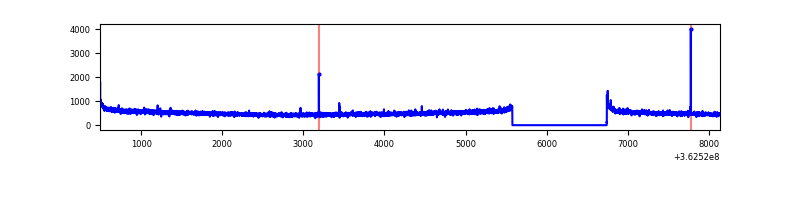

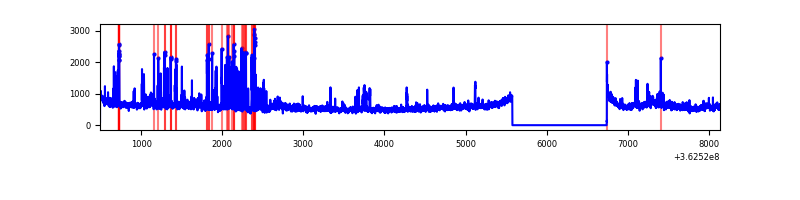

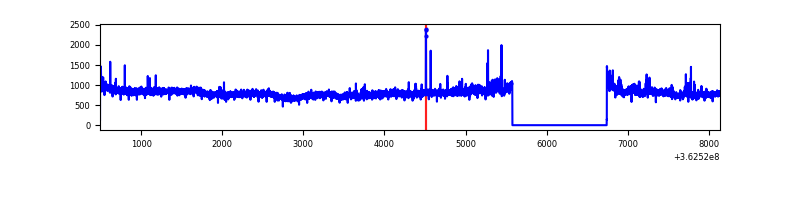

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7646 | 6482 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7646 | 6482 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7646 | 6482 | 48 | 48 | 0.63% | 0.74% |  |
| D | 7646 | 6482 | 48 | 48 | 0.63% | 0.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11021 | 60.57 | 842 | 827 | 168.3 |
| A | 12 | 96 | 10446 | 57.15 | 842 | 827 | 168.3 |
| A | 3 | 137 | 8228 | 43.98 | 842 | 827 | 168.3 |
| B | 6 | 159 | 1814778 | 11419.47 | 840 | 818 | 158.8 |
| B | 0 | 183 | 43988 | 271.77 | 840 | 818 | 158.8 |
| B | 0 | 190 | 39688 | 244.7 | 840 | 818 | 158.8 |
| C | 0 | 10 | 253301 | 1327.77 | 817 | 827 | 190.1 |
| C | 10 | 22 | 243840 | 1278.01 | 817 | 827 | 190.1 |
| C | 14 | 238 | 132660 | 693.31 | 817 | 827 | 190.1 |
| D | 13 | 174 | 524340 | 2689.73 | 826 | 806 | 194.6 |
| D | 8 | 195 | 404768 | 2075.41 | 826 | 806 | 194.6 |
| D | 2 | 120 | 40589 | 204.39 | 826 | 806 | 194.6 |

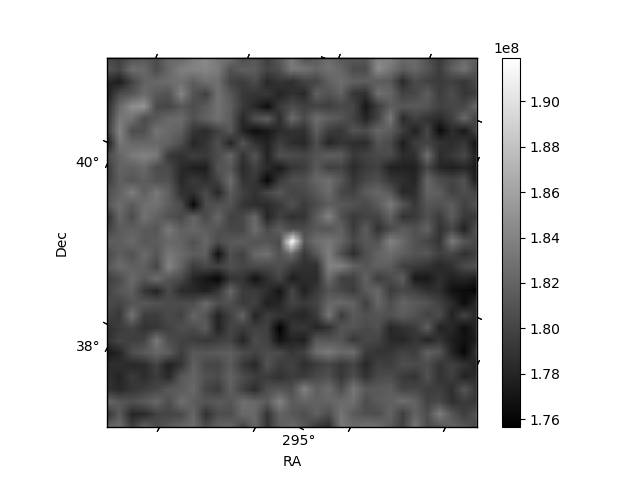

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

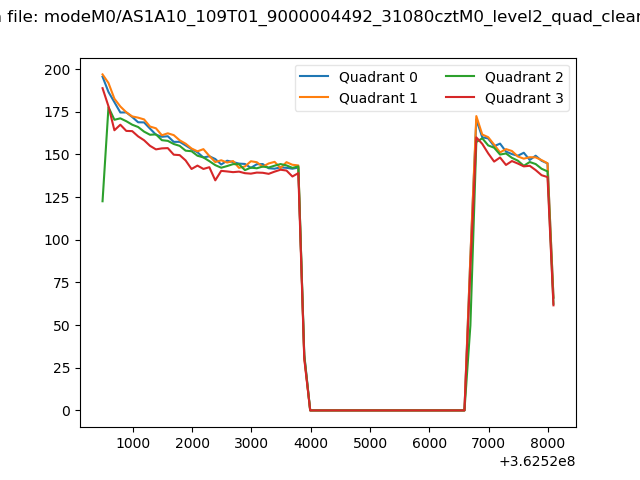

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

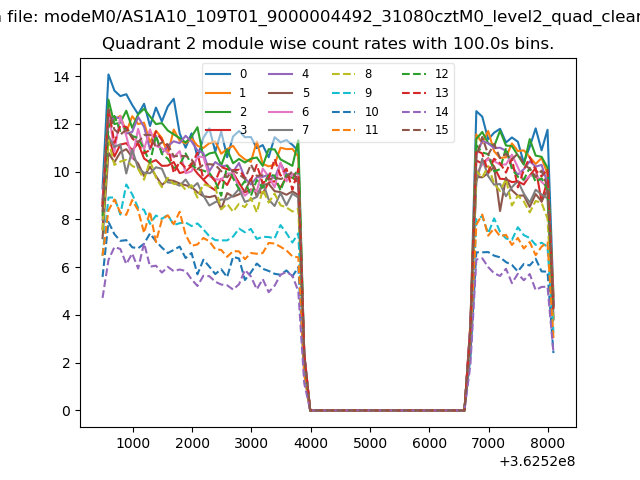

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

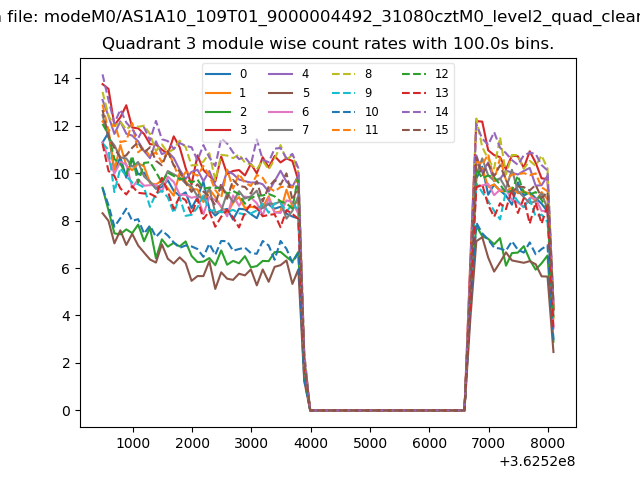

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

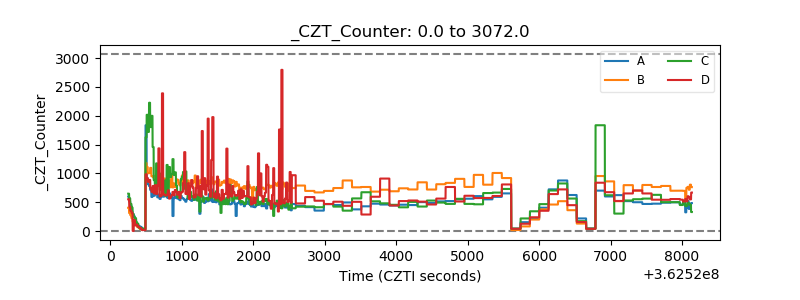

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
