| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_109T01_9000004492_31092cztM0_level2.evt | modeM0/AS1A10_109T01_9000004492_31092cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,603,840 | 112,472,640 |
| Size | 547.0 MB | 107.3 MB |
| Events in quadrant A | 3,557,499 | 756,906 |
| Events in quadrant B | 5,257,654 | 757,542 |
| Events in quadrant C | 4,066,554 | 739,707 |
| Events in quadrant D | 4,070,021 | 719,170 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14726 | 2 |
| B | 0 | 19396 | 2 |
| C | 0 | 16316 | 2 |
| D | 0 | 16446 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6207 | 122 | 1.965523% |
| B | 6208 | 222 | 3.576031% |
| C | 6208 | 370 | 5.960052% |
| D | 6208 | 140 | 2.255155% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8847 | 6209 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8848 | 6210 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8848 | 6210 | 67 | 67 | 0.76% | 1.08% |  |
| D | 8848 | 6210 | 25 | 25 | 0.28% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11808 | 60.21 | 923 | 910 | 181.0 |
| A | 3 | 137 | 8460 | 41.72 | 923 | 910 | 181.0 |
| A | 0 | 226 | 7694 | 37.48 | 923 | 910 | 181.0 |
| B | 6 | 159 | 1652333 | 9802.52 | 906 | 886 | 168.5 |
| B | 0 | 183 | 27794 | 159.72 | 906 | 886 | 168.5 |
| B | 12 | 111 | 19799 | 112.26 | 906 | 886 | 168.5 |
| C | 0 | 10 | 364073 | 1774.57 | 888 | 900 | 204.7 |
| C | 14 | 238 | 144550 | 701.92 | 888 | 900 | 204.7 |
| C | 10 | 22 | 68977 | 332.64 | 888 | 900 | 204.7 |
| D | 13 | 174 | 301330 | 1422.81 | 906 | 887 | 211.2 |
| D | 8 | 195 | 208888 | 985.03 | 906 | 887 | 211.2 |
| D | 1 | 52 | 96164 | 451.2 | 906 | 887 | 211.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

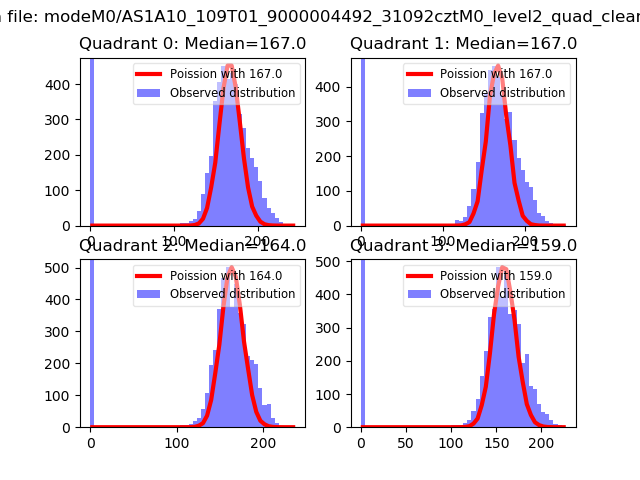

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

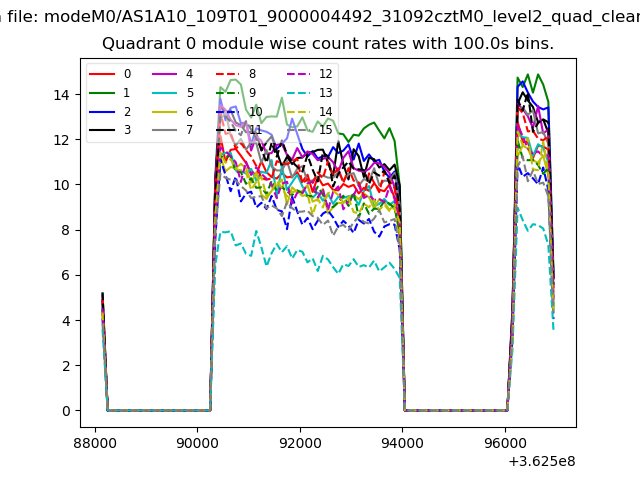

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

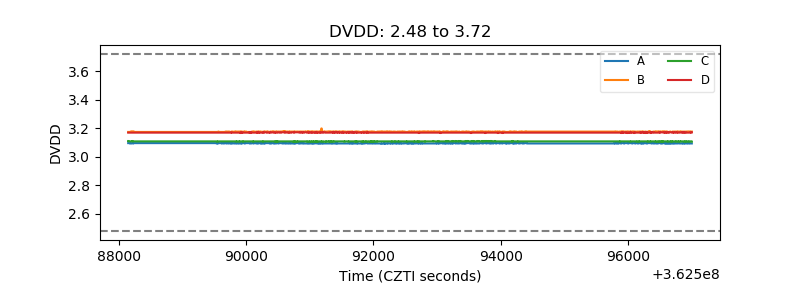

| D_VDD |  |

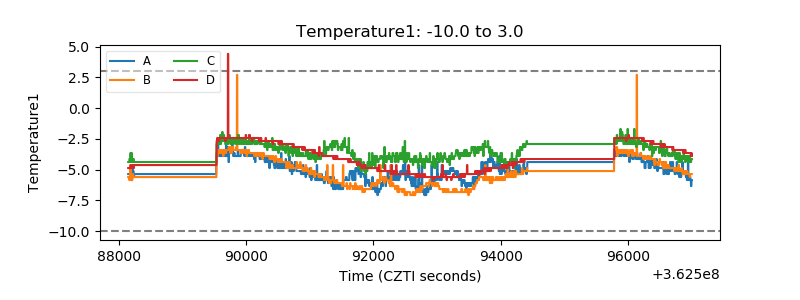

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

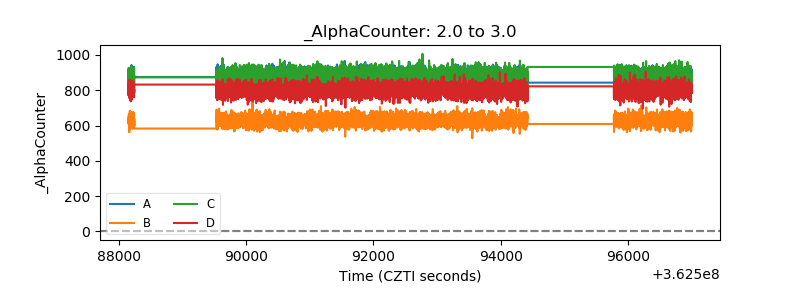

| Alpha Counter |  |

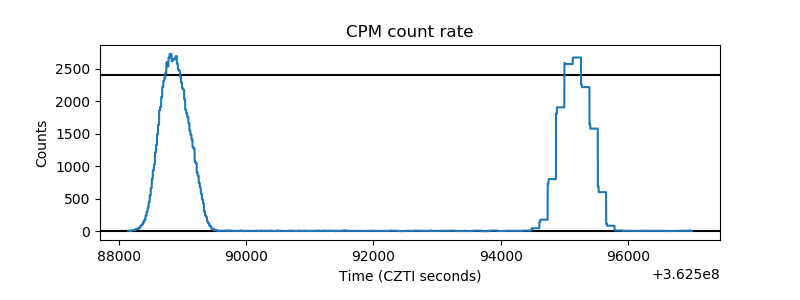

| _CPM_Rate |  |

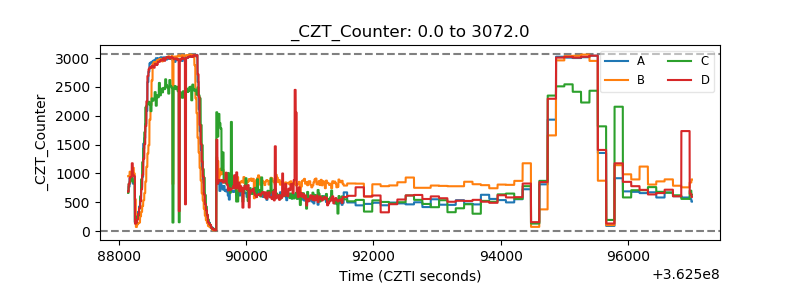

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

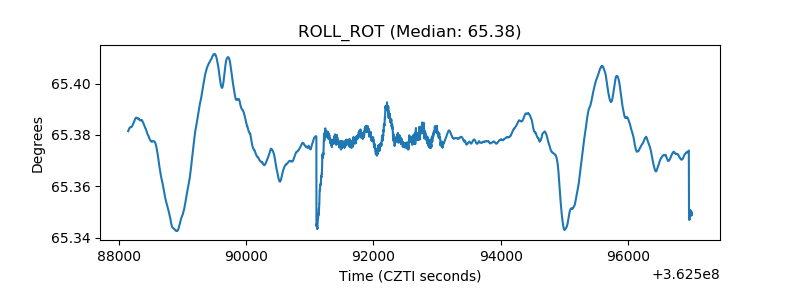

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
