| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T64_9000004496_31136cztM0_level2.evt | modeM0/AS1A10_071T64_9000004496_31136cztM0_level2_quad_clean.evt |
| Size (bytes) | 598,674,240 | 101,839,680 |
| Size | 570.9 MB | 97.1 MB |
| Events in quadrant A | 3,362,799 | 691,813 |
| Events in quadrant B | 5,446,016 | 684,498 |
| Events in quadrant C | 3,892,608 | 642,391 |
| Events in quadrant D | 5,006,524 | 628,649 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13885 | 2 |
| B | 0 | 20418 | 2 |
| C | 0 | 15522 | 2 |
| D | 0 | 19015 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6262 | 81 | 1.293516% |
| B | 6262 | 211 | 3.369531% |
| C | 6262 | 318 | 5.078250% |
| D | 6261 | 261 | 4.168663% |

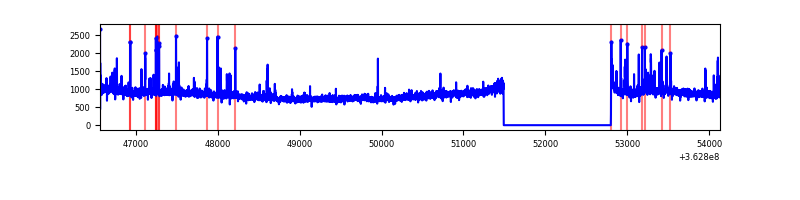

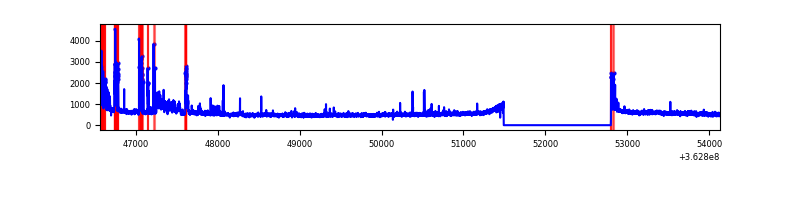

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7572 | 6263 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7572 | 6263 | 21 | 21 | 0.28% | 0.34% |  |
| C | 7572 | 6263 | 91 | 91 | 1.20% | 1.45% |  |
| D | 7571 | 6262 | 156 | 156 | 2.06% | 2.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 13189 | 71.71 | 867 | 851 | 172.1 |
| A | 13 | 254 | 13182 | 71.67 | 867 | 851 | 172.1 |
| A | 3 | 137 | 7716 | 39.9 | 867 | 851 | 172.1 |
| B | 6 | 159 | 1848416 | 11682.91 | 852 | 833 | 158.1 |
| B | 4 | 171 | 62965 | 392.88 | 852 | 833 | 158.1 |
| B | 0 | 190 | 62608 | 390.62 | 852 | 833 | 158.1 |
| C | 3 | 233 | 340300 | 1796.78 | 813 | 822 | 188.9 |
| C | 0 | 10 | 180785 | 952.5 | 813 | 822 | 188.9 |
| C | 14 | 238 | 131882 | 693.67 | 813 | 822 | 188.9 |
| D | 8 | 195 | 1632599 | 8266.02 | 830 | 812 | 197.4 |
| D | 13 | 174 | 49373 | 245.99 | 830 | 812 | 197.4 |
| D | 13 | 249 | 45684 | 227.3 | 830 | 812 | 197.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

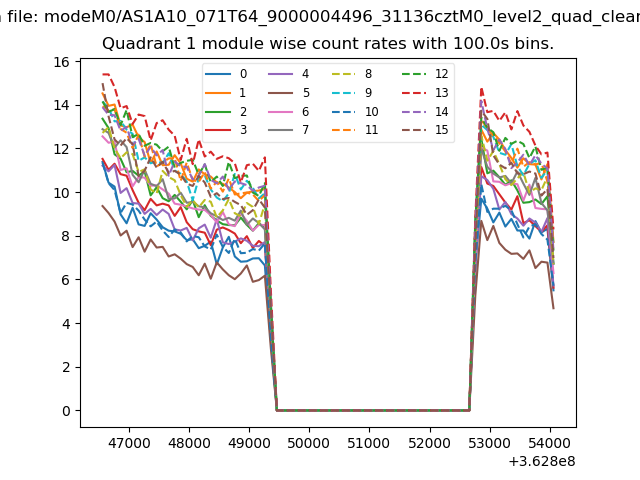

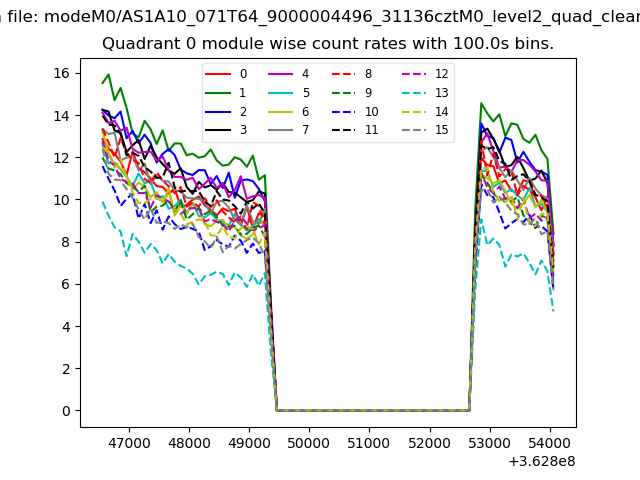

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

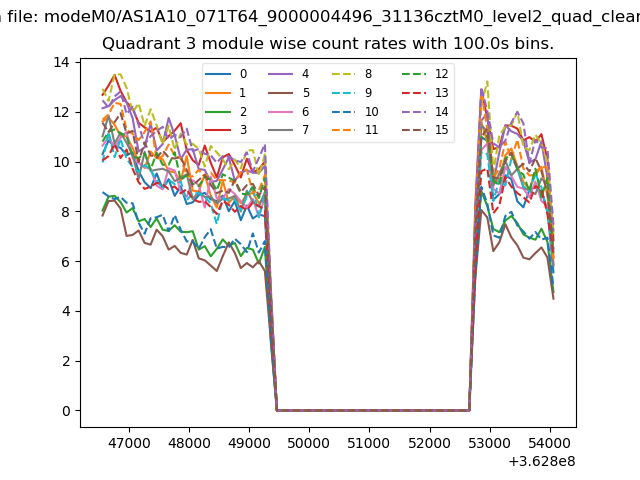

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

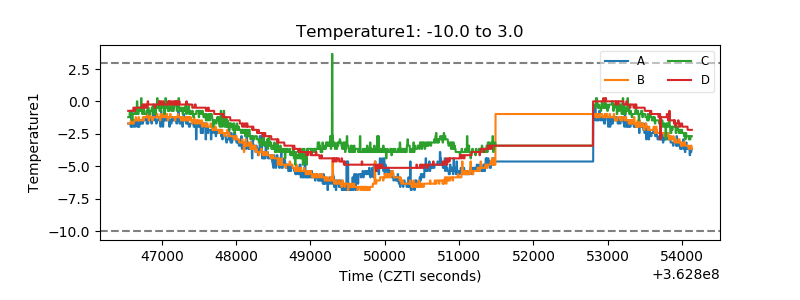

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

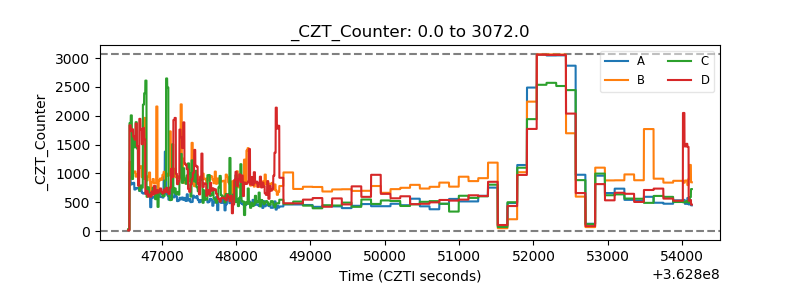

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

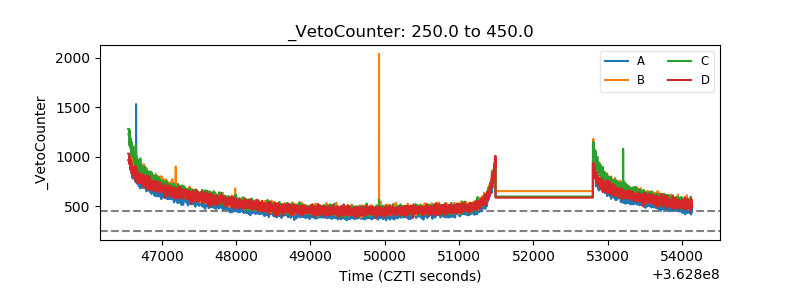

| Veto Counter |  |
