| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T66_9000004498_31138cztM0_level2.evt | modeM0/AS1A10_071T66_9000004498_31138cztM0_level2_quad_clean.evt |
| Size (bytes) | 179,285,760 | 39,556,800 |
| Size | 171.0 MB | 37.7 MB |
| Events in quadrant A | 1,028,931 | 272,705 |
| Events in quadrant B | 1,649,960 | 272,112 |
| Events in quadrant C | 1,128,917 | 258,609 |
| Events in quadrant D | 1,489,433 | 254,309 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4307 | 1 |
| B | 0 | 6197 | 1 |
| C | 0 | 4577 | 1 |
| D | 0 | 5689 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40 | 0 |
| B | 0 | 40 | 0 |
| C | 0 | 40 | 0 |
| D | 0 | 40 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1922 | 33 | 1.716961% |
| B | 1922 | 99 | 5.150884% |
| C | 1922 | 82 | 4.266389% |
| D | 1921 | 59 | 3.071317% |

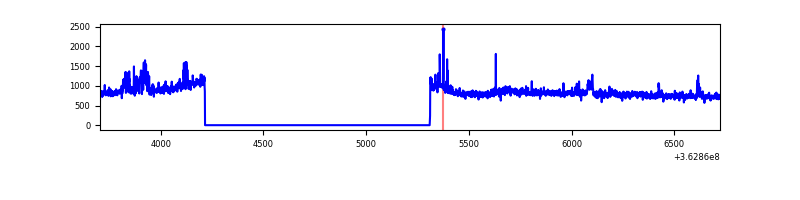

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3017 | 1923 | 7 | 7 | 0.23% | 0.36% |  |
| B | 3017 | 1923 | 1 | 1 | 0.03% | 0.05% |  |
| C | 3017 | 1923 | 21 | 21 | 0.70% | 1.09% |  |
| D | 3016 | 1922 | 45 | 45 | 1.49% | 2.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 31289 | 577.36 | 258 | 252 | 53.8 |
| A | 13 | 254 | 3850 | 66.93 | 258 | 252 | 53.8 |
| A | 3 | 137 | 2534 | 42.45 | 258 | 252 | 53.8 |
| B | 6 | 159 | 539179 | 10456.12 | 256 | 250 | 51.5 |
| B | 0 | 190 | 54559 | 1053.69 | 256 | 250 | 51.5 |
| B | 0 | 183 | 26483 | 508.96 | 256 | 250 | 51.5 |
| C | 0 | 10 | 113553 | 1921.18 | 243 | 245 | 59.0 |
| C | 14 | 238 | 38896 | 655.34 | 243 | 245 | 59.0 |
| C | 4 | 175 | 11171 | 185.25 | 243 | 245 | 59.0 |
| D | 8 | 195 | 368294 | 5492.01 | 245 | 240 | 67.0 |
| D | 13 | 249 | 118358 | 1762.53 | 245 | 240 | 67.0 |
| D | 2 | 250 | 32541 | 481.99 | 245 | 240 | 67.0 |

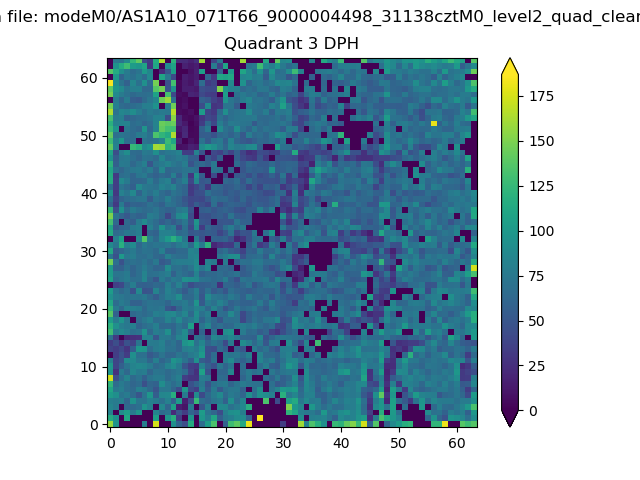

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

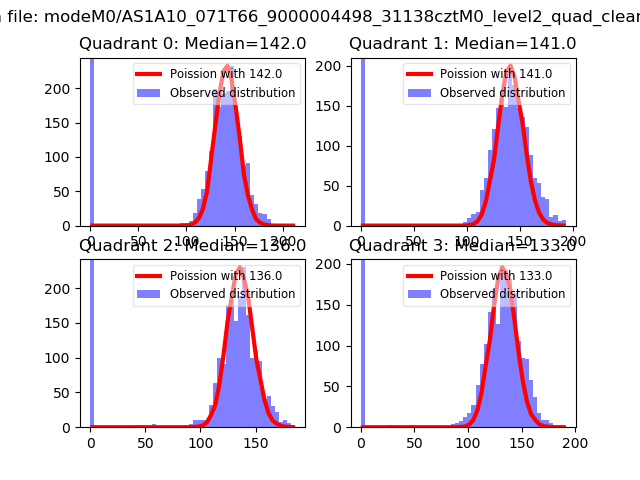

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

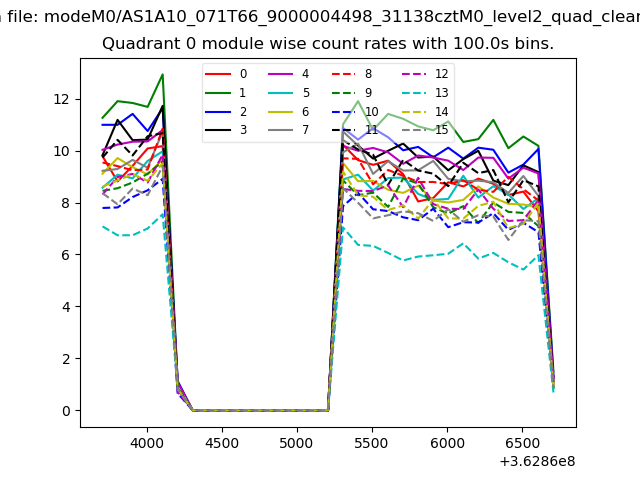

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

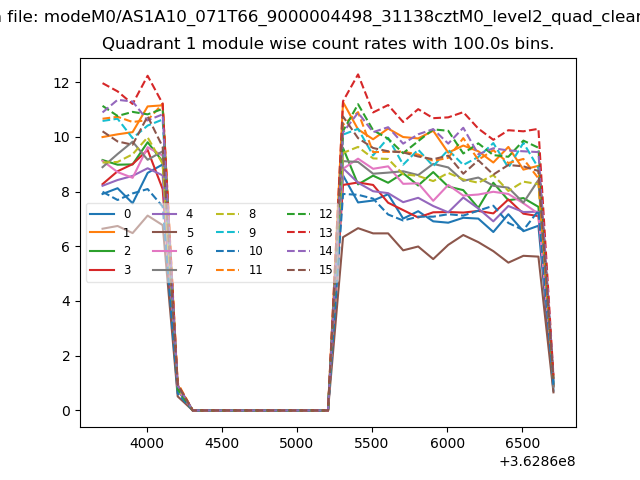

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

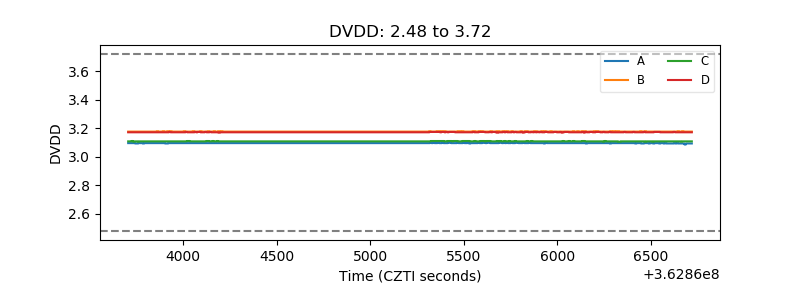

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
