| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_018T01_9000004494_31131cztM0_level2.evt | modeM0/AS1T04_018T01_9000004494_31131cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,065,280 | 92,473,920 |
| Size | 555.1 MB | 88.2 MB |
| Events in quadrant A | 3,465,672 | 591,247 |
| Events in quadrant B | 5,461,901 | 582,940 |
| Events in quadrant C | 3,707,008 | 572,300 |
| Events in quadrant D | 4,516,706 | 563,758 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14702 | 2 |
| B | 0 | 21451 | 2 |
| C | 0 | 15424 | 2 |
| D | 0 | 18415 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7048 | 109 | 1.546538% |
| B | 7048 | 200 | 2.837684% |
| C | 7048 | 246 | 3.490352% |
| D | 7048 | 139 | 1.972191% |

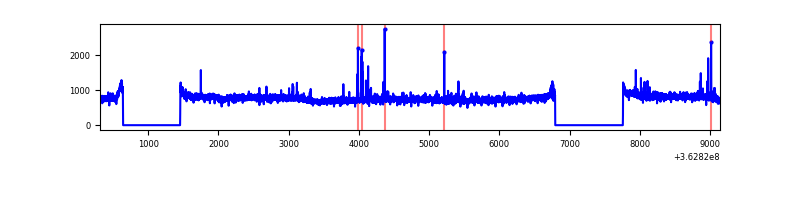

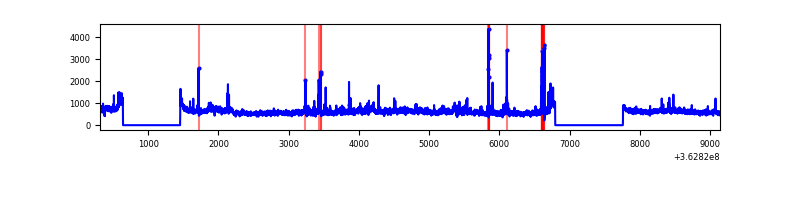

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8828 | 7050 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8828 | 7050 | 5 | 5 | 0.06% | 0.07% |  |
| C | 8828 | 7050 | 7 | 7 | 0.08% | 0.10% |  |
| D | 8828 | 7050 | 23 | 23 | 0.26% | 0.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12573 | 65.28 | 896 | 878 | 179.1 |
| A | 3 | 137 | 9309 | 47.06 | 896 | 878 | 179.1 |
| A | 0 | 226 | 7670 | 37.91 | 896 | 878 | 179.1 |
| B | 6 | 159 | 1886179 | 11136.41 | 882 | 859 | 169.3 |
| B | 0 | 230 | 34947 | 201.35 | 882 | 859 | 169.3 |
| B | 0 | 190 | 23369 | 132.96 | 882 | 859 | 169.3 |
| C | 0 | 10 | 176390 | 873.45 | 857 | 863 | 201.0 |
| C | 14 | 238 | 138297 | 683.89 | 857 | 863 | 201.0 |
| C | 2 | 114 | 16183 | 76.23 | 857 | 863 | 201.0 |
| D | 8 | 195 | 1042154 | 4644.0 | 863 | 845 | 224.2 |
| D | 2 | 250 | 125474 | 555.82 | 863 | 845 | 224.2 |
| D | 2 | 234 | 25767 | 111.15 | 863 | 845 | 224.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

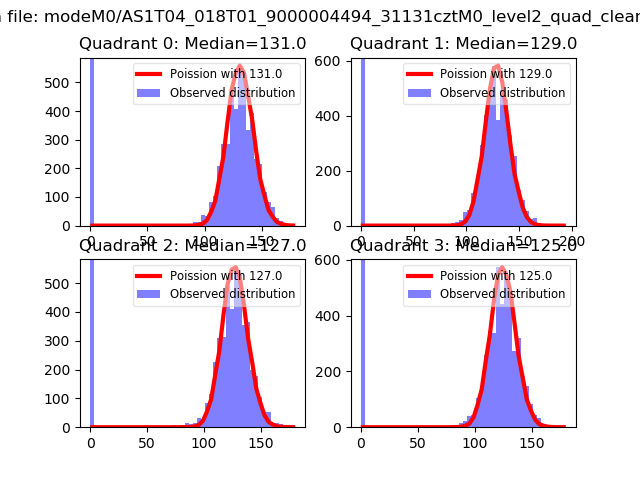

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

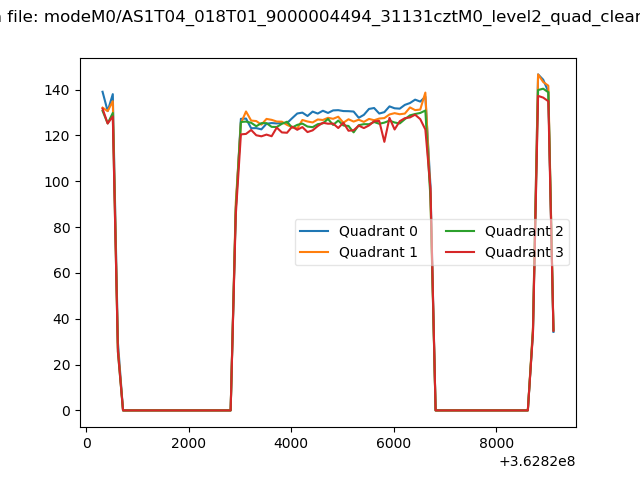

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

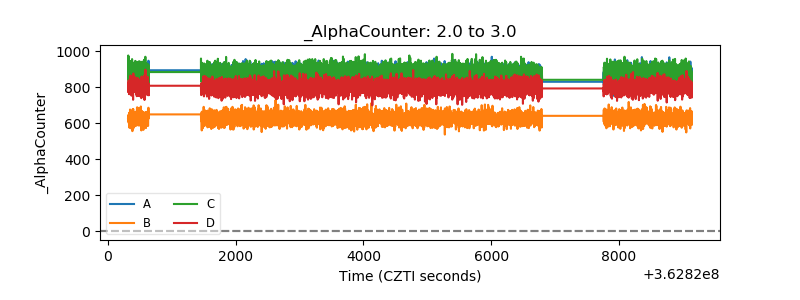

| Alpha Counter |  |

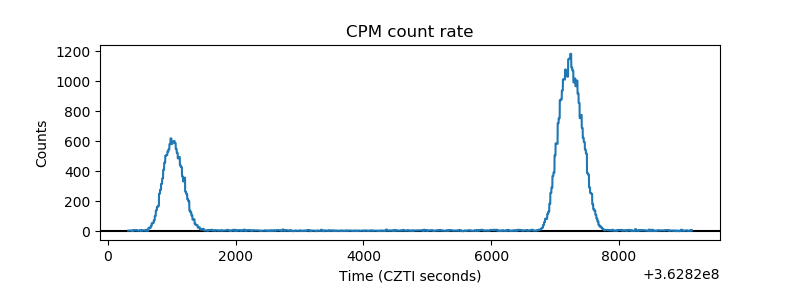

| _CPM_Rate |  |

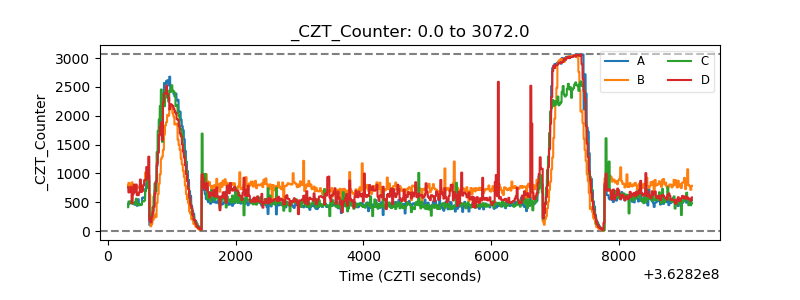

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

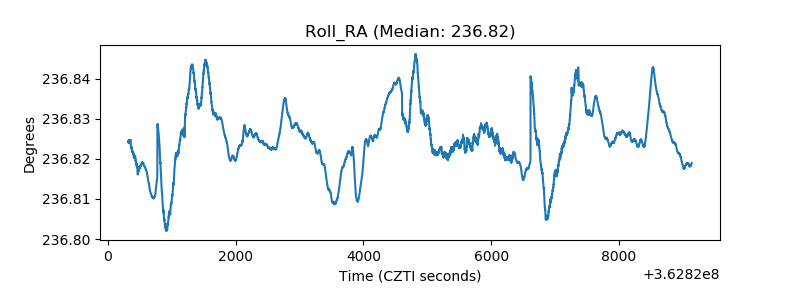

| _Roll_RA |  |
| Veto Counter |  |
