| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T01_9000004500_31148cztM0_level2.evt | modeM0/AS1C06_002T01_9000004500_31148cztM0_level2_quad_clean.evt |
| Size (bytes) | 692,265,600 | 115,246,080 |
| Size | 660.2 MB | 109.9 MB |
| Events in quadrant A | 3,226,432 | 813,366 |
| Events in quadrant B | 5,182,395 | 791,946 |
| Events in quadrant C | 4,017,528 | 749,861 |
| Events in quadrant D | 8,112,176 | 693,341 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13630 | 1 |
| B | 0 | 19743 | 1 |
| C | 0 | 15975 | 1 |
| D | 0 | 28662 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6326 | 66 | 1.043313% |
| B | 6327 | 141 | 2.228544% |
| C | 6327 | 297 | 4.694168% |
| D | 6327 | 1194 | 18.871503% |

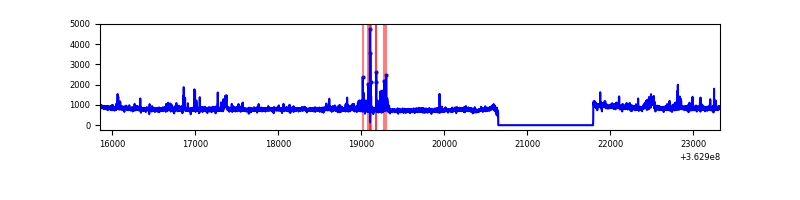

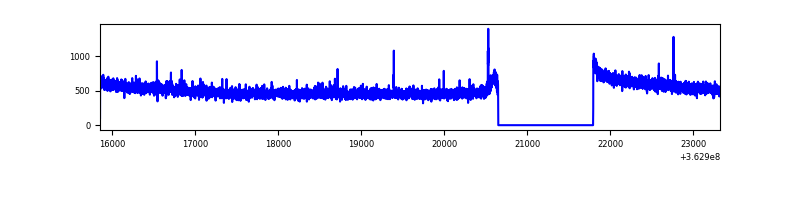

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7471 | 6327 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7472 | 6328 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7472 | 6328 | 86 | 86 | 1.15% | 1.36% |  |
| D | 7472 | 6328 | 999 | 999 | 13.37% | 15.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 15132 | 86.44 | 830 | 815 | 165.6 |
| A | 13 | 254 | 12672 | 71.59 | 830 | 815 | 165.6 |
| A | 3 | 137 | 7623 | 41.11 | 830 | 815 | 165.6 |
| B | 6 | 159 | 1754081 | 11676.86 | 805 | 787 | 150.2 |
| B | 0 | 190 | 190005 | 1260.18 | 805 | 787 | 150.2 |
| B | 0 | 230 | 28418 | 184.02 | 805 | 787 | 150.2 |
| C | 3 | 233 | 657877 | 3673.56 | 767 | 770 | 178.9 |
| C | 14 | 238 | 150627 | 837.78 | 767 | 770 | 178.9 |
| C | 1 | 16 | 88216 | 488.87 | 767 | 770 | 178.9 |
| D | 8 | 195 | 2033272 | 10368.11 | 748 | 734 | 196.0 |
| D | 13 | 174 | 1950381 | 9945.27 | 748 | 734 | 196.0 |
| D | 2 | 250 | 1058147 | 5393.93 | 748 | 734 | 196.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

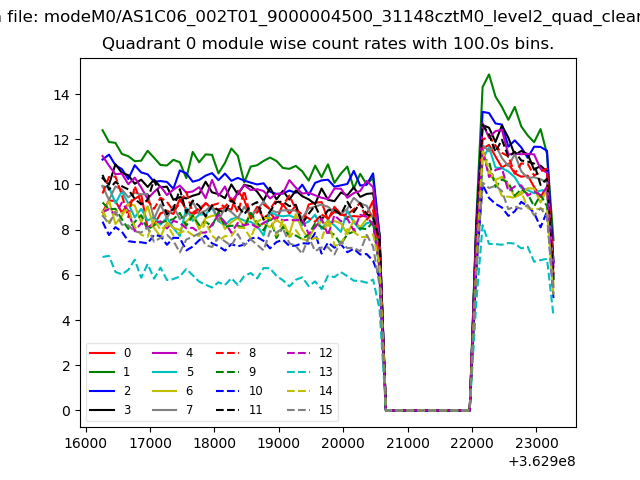

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

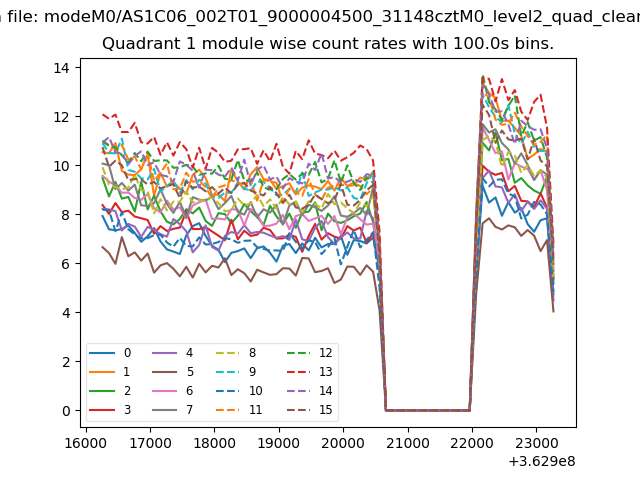

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

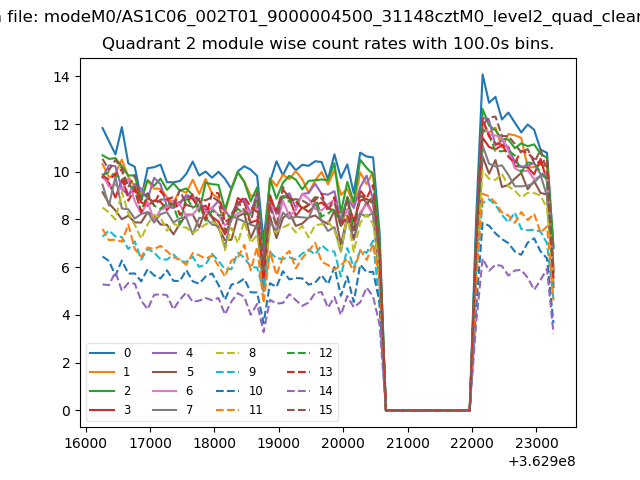

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

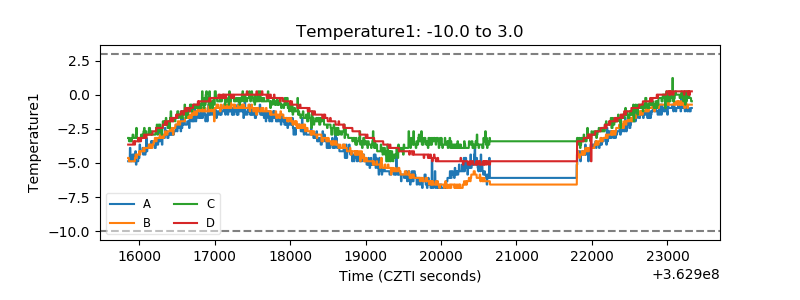

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

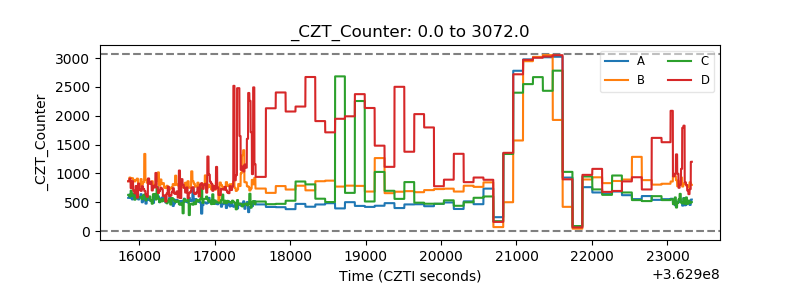

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

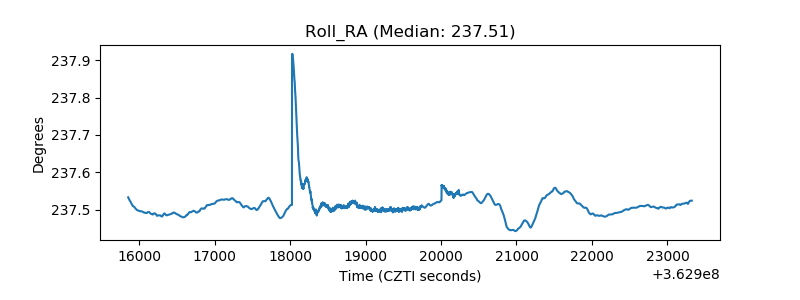

| _Roll_RA |  |
| Veto Counter |  |
