| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T01_9000004500_31153cztM0_level2.evt | modeM0/AS1C06_002T01_9000004500_31153cztM0_level2_quad_clean.evt |
| Size (bytes) | 665,907,840 | 110,989,440 |
| Size | 635.1 MB | 105.8 MB |
| Events in quadrant A | 3,170,871 | 755,500 |
| Events in quadrant B | 5,689,183 | 736,253 |
| Events in quadrant C | 3,424,707 | 728,478 |
| Events in quadrant D | 7,427,234 | 671,036 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13906 | 2 |
| B | 0 | 22079 | 2 |
| C | 0 | 14403 | 2 |
| D | 0 | 26890 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6741 | 28 | 0.415369% |
| B | 6742 | 199 | 2.951646% |
| C | 6742 | 232 | 3.441115% |
| D | 6742 | 711 | 10.545832% |

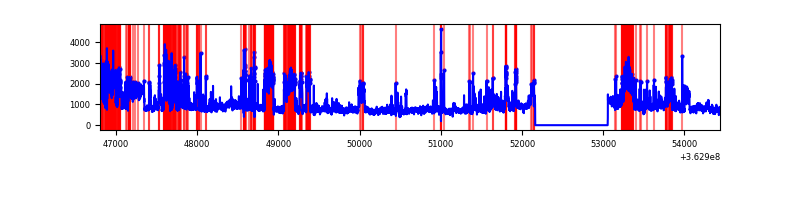

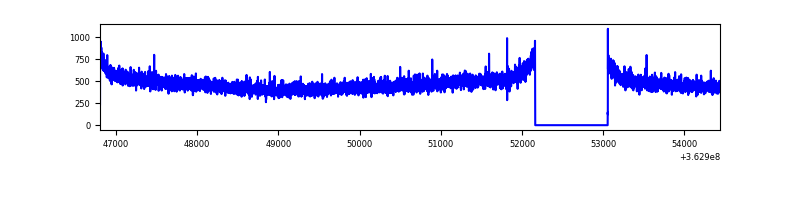

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7636 | 6742 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7637 | 6743 | 31 | 31 | 0.41% | 0.46% |  |
| C | 7637 | 6743 | 5 | 5 | 0.07% | 0.07% |  |
| D | 7637 | 6743 | 612 | 612 | 8.01% | 9.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13520 | 77.83 | 820 | 804 | 163.4 |
| A | 3 | 137 | 7845 | 43.1 | 820 | 804 | 163.4 |
| A | 0 | 226 | 7097 | 38.52 | 820 | 804 | 163.4 |
| B | 6 | 159 | 2074441 | 13767.9 | 810 | 788 | 150.6 |
| B | 0 | 190 | 130543 | 861.5 | 810 | 788 | 150.6 |
| B | 4 | 171 | 61978 | 406.27 | 810 | 788 | 150.6 |
| C | 14 | 238 | 151731 | 816.36 | 792 | 796 | 184.9 |
| C | 0 | 10 | 89001 | 477.07 | 792 | 796 | 184.9 |
| C | 14 | 254 | 43353 | 230.18 | 792 | 796 | 184.9 |
| D | 8 | 195 | 3184779 | 15977.14 | 768 | 751 | 199.3 |
| D | 2 | 250 | 666274 | 3339.53 | 768 | 751 | 199.3 |
| D | 13 | 174 | 362348 | 1814.46 | 768 | 751 | 199.3 |

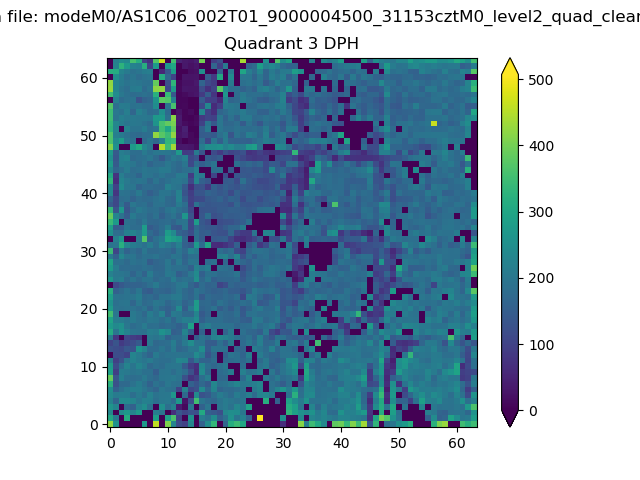

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

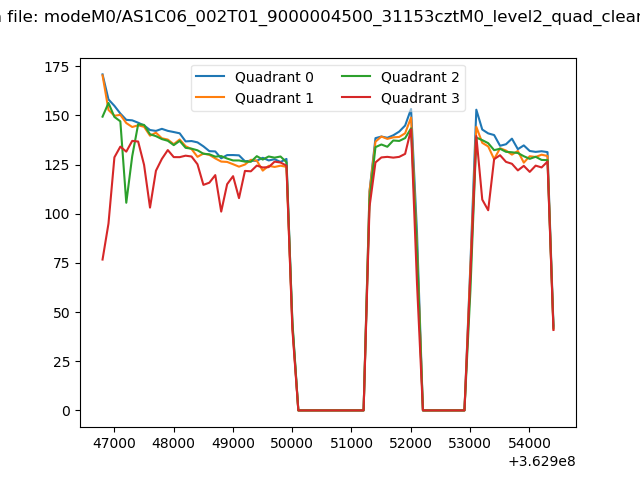

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

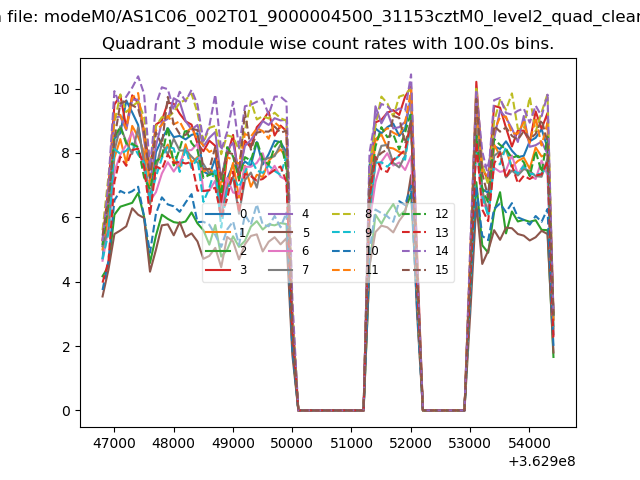

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

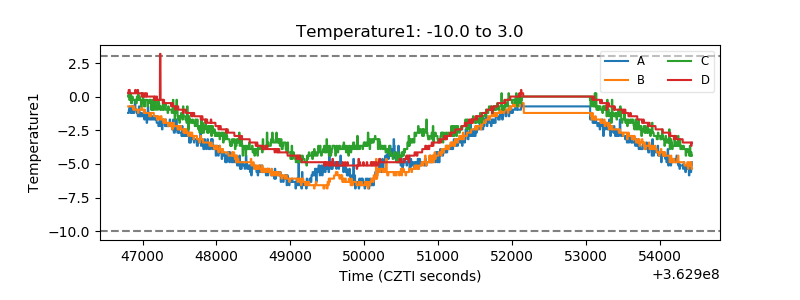

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

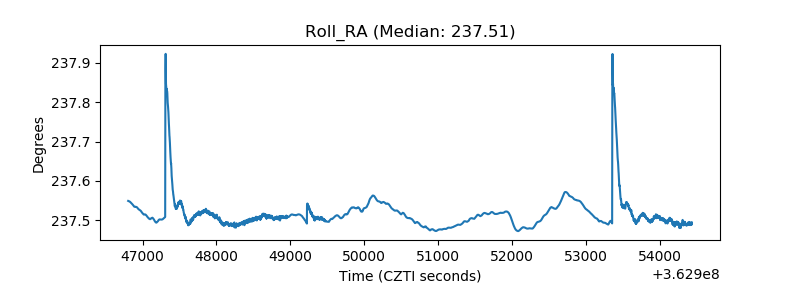

| _Roll_RA |  |

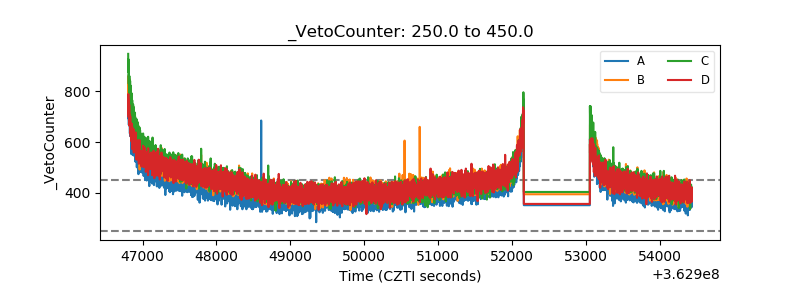

| Veto Counter |  |
