| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T01_9000004500_31155cztM0_level2.evt | modeM0/AS1C06_002T01_9000004500_31155cztM0_level2_quad_clean.evt |
| Size (bytes) | 704,116,800 | 121,737,600 |
| Size | 671.5 MB | 116.1 MB |
| Events in quadrant A | 3,615,780 | 814,995 |
| Events in quadrant B | 5,958,156 | 800,802 |
| Events in quadrant C | 3,932,239 | 789,428 |
| Events in quadrant D | 7,308,453 | 756,493 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15944 | 2 |
| B | 0 | 23453 | 2 |
| C | 0 | 16613 | 2 |
| D | 0 | 27120 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7543 | 52 | 0.689381% |
| B | 7543 | 141 | 1.869283% |
| C | 7543 | 198 | 2.624950% |
| D | 7543 | 481 | 6.376773% |

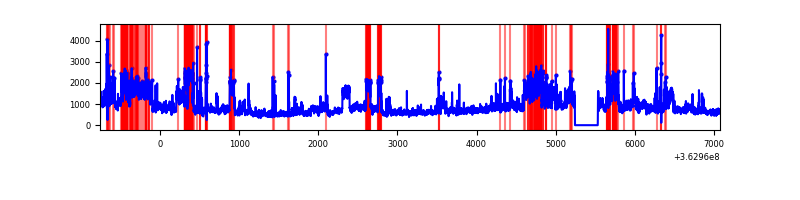

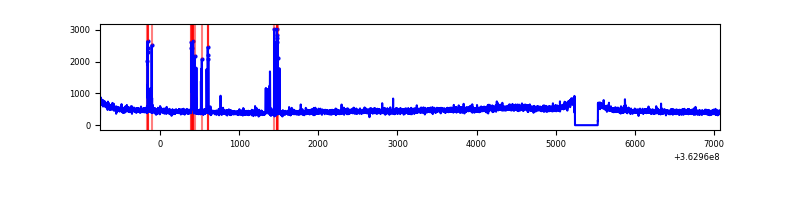

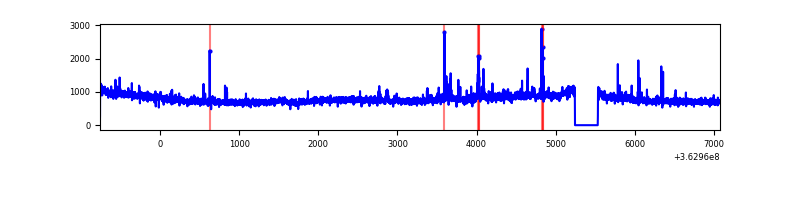

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7833 | 7544 | 24 | 24 | 0.31% | 0.32% |  |
| B | 7833 | 7544 | 8 | 8 | 0.10% | 0.11% |  |
| C | 7833 | 7544 | 31 | 31 | 0.40% | 0.41% |  |
| D | 7833 | 7544 | 391 | 391 | 4.99% | 5.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 247 | 161028 | 892.46 | 892 | 874 | 179.5 |
| A | 13 | 254 | 15035 | 78.91 | 892 | 874 | 179.5 |
| A | 3 | 137 | 8990 | 45.23 | 892 | 874 | 179.5 |
| B | 6 | 159 | 2257031 | 13358.63 | 886 | 864 | 168.9 |
| B | 0 | 190 | 79849 | 467.67 | 886 | 864 | 168.9 |
| B | 0 | 183 | 36421 | 210.53 | 886 | 864 | 168.9 |
| C | 3 | 233 | 216729 | 1059.66 | 866 | 870 | 203.7 |
| C | 14 | 238 | 145022 | 707.64 | 866 | 870 | 203.7 |
| C | 0 | 10 | 86025 | 418.03 | 866 | 870 | 203.7 |
| D | 8 | 195 | 3313531 | 14916.53 | 853 | 837 | 222.1 |
| D | 2 | 250 | 278435 | 1249.98 | 853 | 837 | 222.1 |
| D | 1 | 239 | 184868 | 828.66 | 853 | 837 | 222.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

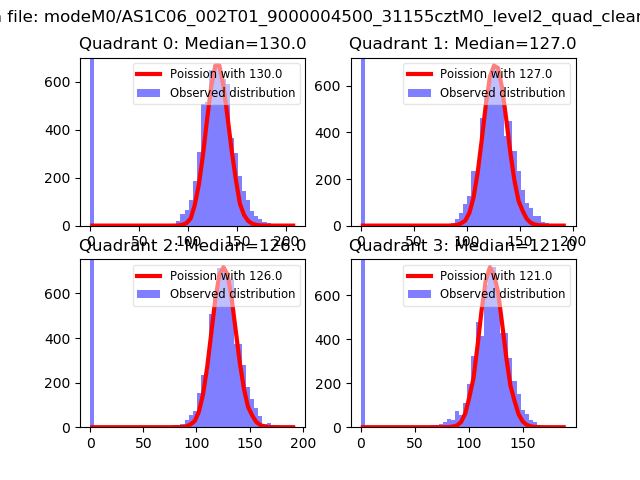

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

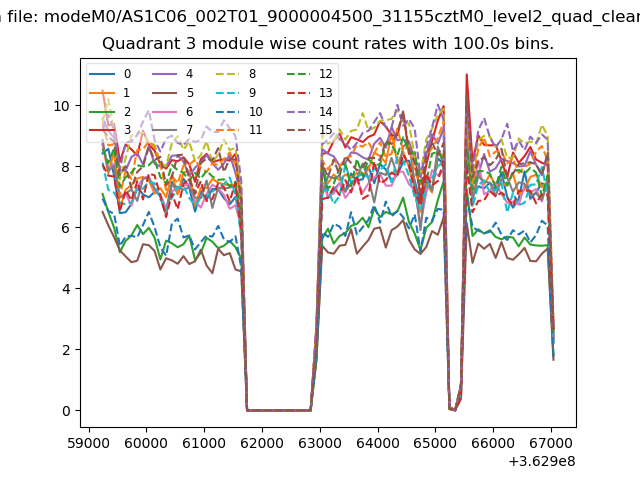

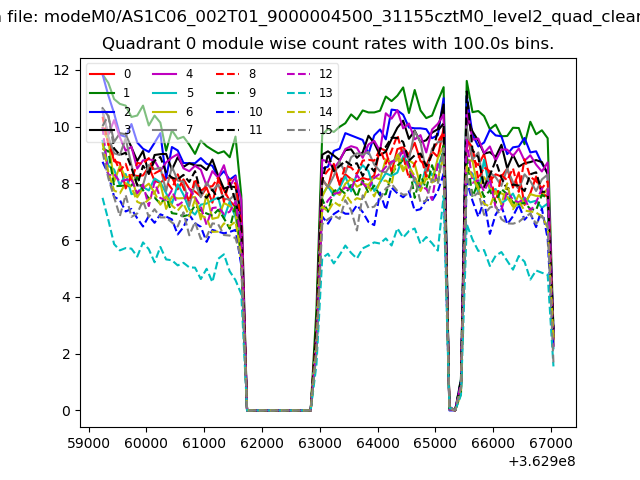

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

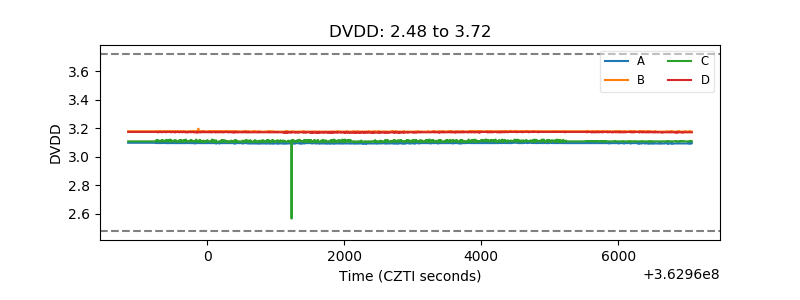

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

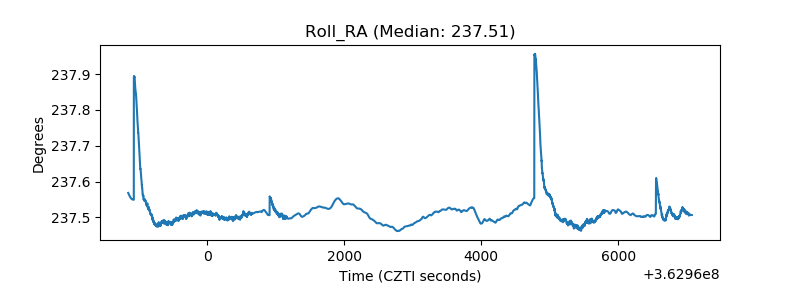

| _Roll_RA |  |
| Veto Counter |  |
