| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T02_9000004510_31169cztM0_level2.evt | modeM0/AS1A10_058T02_9000004510_31169cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,508,800 | 79,456,320 |
| Size | 495.4 MB | 75.8 MB |
| Events in quadrant A | 2,787,275 | 511,510 |
| Events in quadrant B | 4,584,554 | 511,717 |
| Events in quadrant C | 2,860,388 | 492,884 |
| Events in quadrant D | 5,104,258 | 480,424 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12134 | 1 |
| B | 0 | 18012 | 1 |
| C | 0 | 12220 | 1 |
| D | 0 | 19118 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5857 | 36 | 0.614649% |
| B | 5857 | 139 | 2.373229% |
| C | 5857 | 105 | 1.792727% |
| D | 5857 | 204 | 3.483012% |

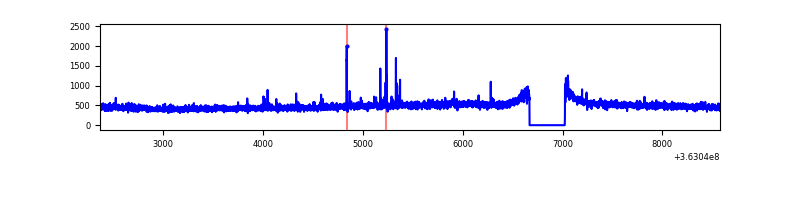

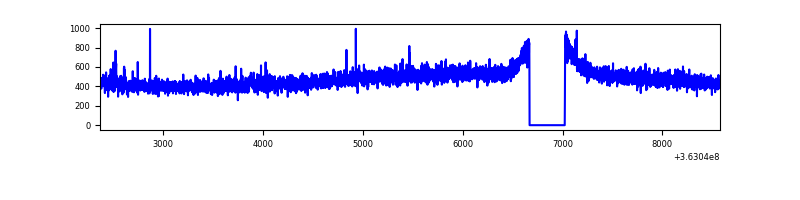

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6212 | 5858 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6212 | 5858 | 3 | 3 | 0.05% | 0.05% |  |
| C | 6212 | 5858 | 2 | 2 | 0.03% | 0.03% |  |
| D | 6212 | 5858 | 96 | 96 | 1.55% | 1.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9624 | 61.4 | 721 | 704 | 145.3 |
| A | 3 | 137 | 7419 | 46.22 | 721 | 704 | 145.3 |
| A | 0 | 226 | 5936 | 36.02 | 721 | 704 | 145.3 |
| B | 6 | 159 | 1647616 | 11849.6 | 714 | 695 | 139.0 |
| B | 0 | 190 | 110308 | 788.67 | 714 | 695 | 139.0 |
| B | 12 | 111 | 17358 | 119.89 | 714 | 695 | 139.0 |
| C | 14 | 238 | 110968 | 674.13 | 691 | 697 | 163.6 |
| C | 0 | 10 | 34526 | 206.81 | 691 | 697 | 163.6 |
| C | 2 | 114 | 13310 | 77.11 | 691 | 697 | 163.6 |
| D | 8 | 195 | 1563920 | 8626.51 | 685 | 673 | 181.2 |
| D | 12 | 79 | 665526 | 3668.88 | 685 | 673 | 181.2 |
| D | 12 | 233 | 151115 | 830.19 | 685 | 673 | 181.2 |

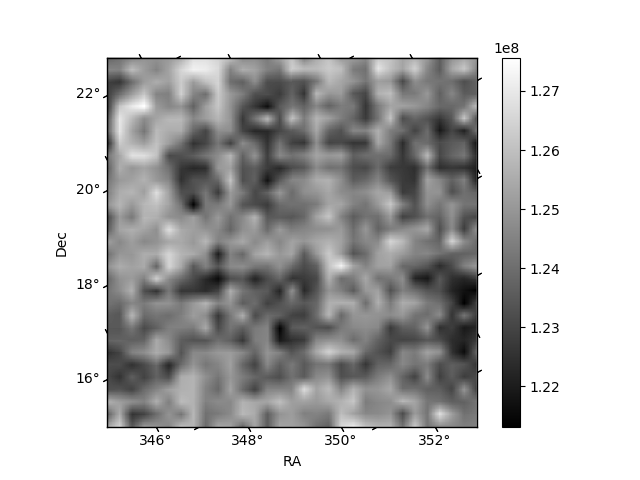

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

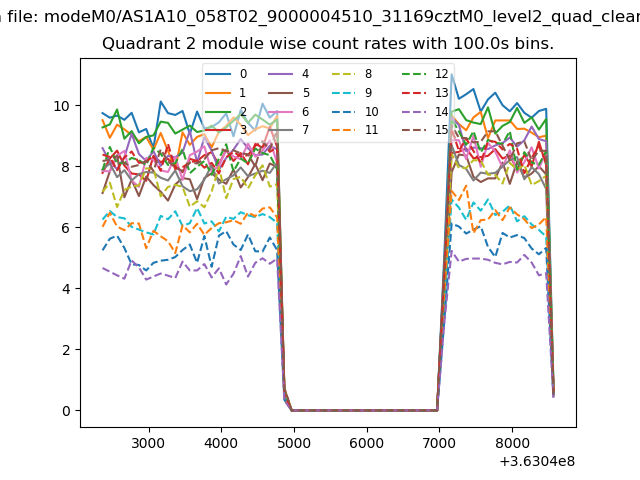

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

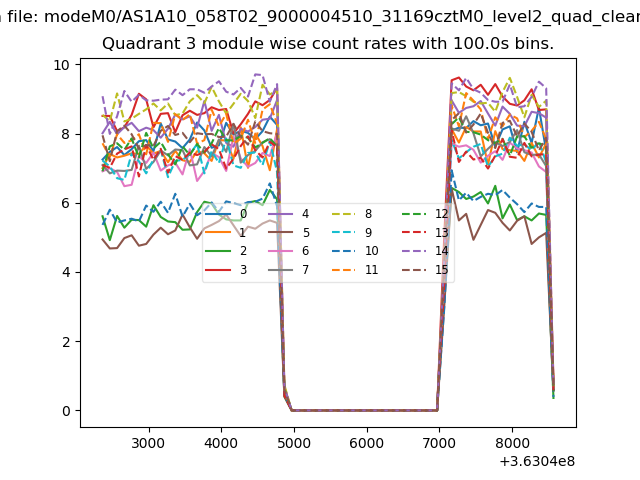

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

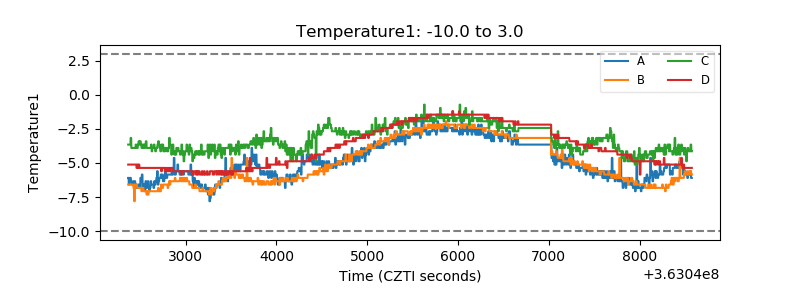

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

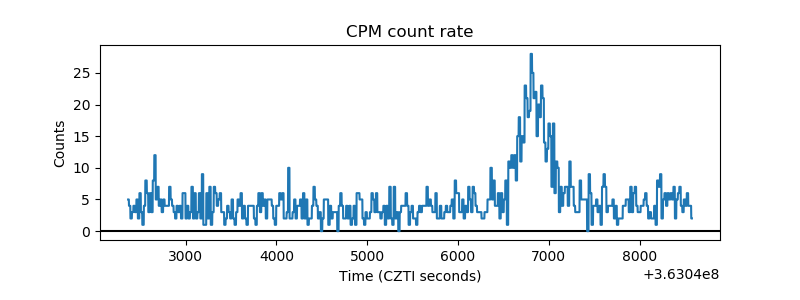

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

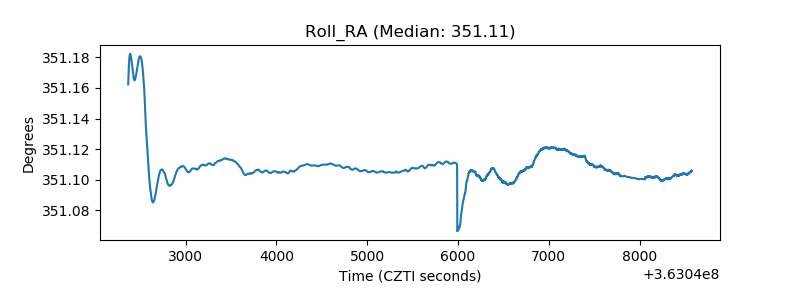

| _Roll_RA |  |
| Veto Counter |  |
