| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T02_9000004510_31174cztM0_level2.evt | modeM0/AS1A10_058T02_9000004510_31174cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,569,280 | 82,048,320 |
| Size | 495.5 MB | 78.2 MB |
| Events in quadrant A | 2,928,272 | 527,061 |
| Events in quadrant B | 4,695,896 | 526,740 |
| Events in quadrant C | 3,003,594 | 504,228 |
| Events in quadrant D | 4,689,512 | 495,723 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12493 | 1 |
| B | 0 | 18667 | 1 |
| C | 0 | 12700 | 1 |
| D | 0 | 18947 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6168 | 22 | 0.356680% |
| B | 6169 | 69 | 1.118496% |
| C | 6169 | 69 | 1.118496% |
| D | 6169 | 43 | 0.697034% |

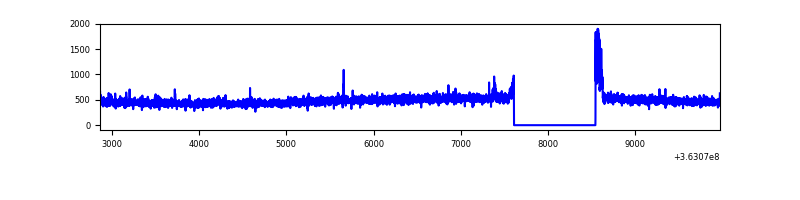

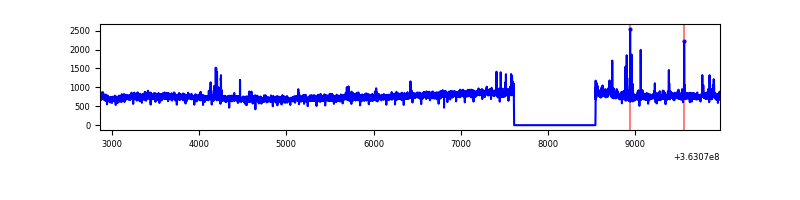

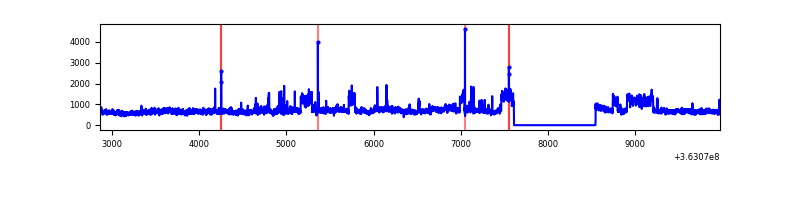

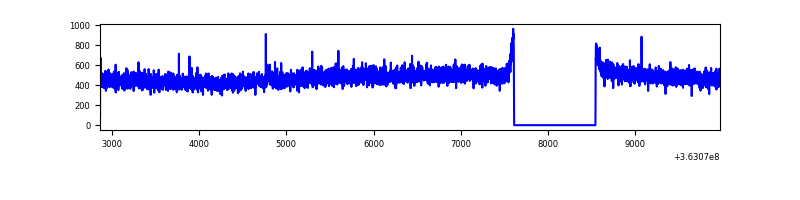

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7103 | 6169 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7104 | 6170 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7104 | 6170 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7104 | 6170 | 6 | 6 | 0.08% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 255 | 9549 | 58.13 | 757 | 742 | 151.5 |
| A | 13 | 254 | 9512 | 57.89 | 757 | 742 | 151.5 |
| A | 3 | 137 | 7735 | 46.16 | 757 | 742 | 151.5 |
| B | 6 | 159 | 1689291 | 11699.53 | 743 | 723 | 144.3 |
| B | 4 | 80 | 39915 | 271.55 | 743 | 723 | 144.3 |
| B | 0 | 190 | 25907 | 174.49 | 743 | 723 | 144.3 |
| C | 14 | 238 | 116605 | 680.7 | 717 | 722 | 170.2 |
| C | 0 | 10 | 56225 | 326.03 | 717 | 722 | 170.2 |
| C | 10 | 22 | 14757 | 82.44 | 717 | 722 | 170.2 |
| D | 8 | 195 | 1855731 | 9679.39 | 719 | 704 | 191.6 |
| D | 2 | 250 | 54629 | 281.37 | 719 | 704 | 191.6 |
| D | 2 | 234 | 22095 | 111.61 | 719 | 704 | 191.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

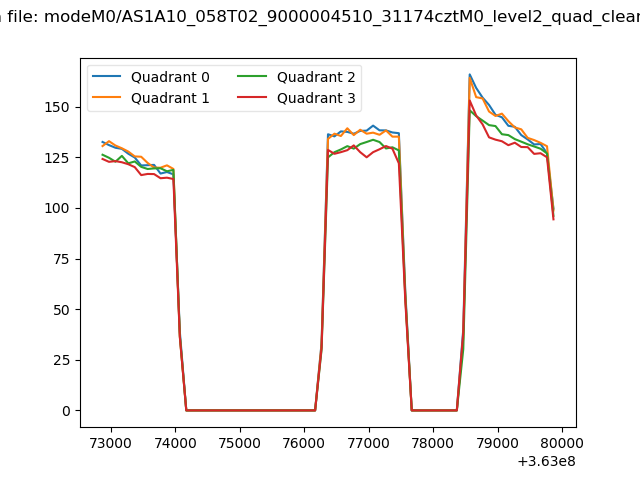

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

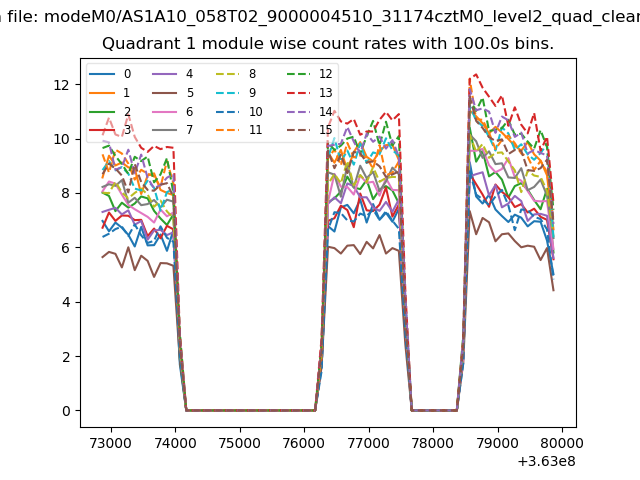

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

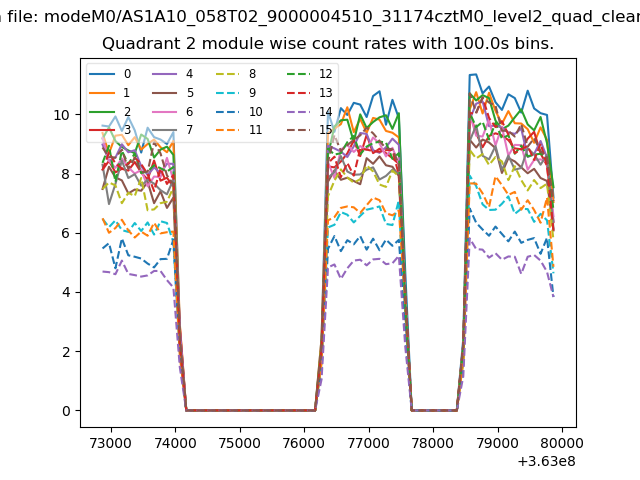

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

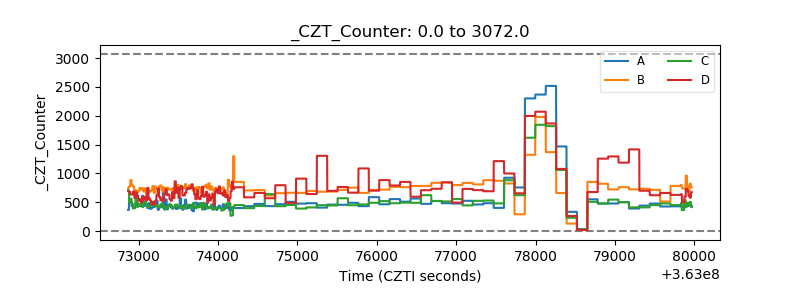

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
