| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T02_9000004510_31180cztM0_level2.evt | modeM0/AS1A10_058T02_9000004510_31180cztM0_level2_quad_clean.evt |
| Size (bytes) | 624,807,360 | 73,267,200 |
| Size | 595.9 MB | 69.9 MB |
| Events in quadrant A | 3,513,775 | 462,166 |
| Events in quadrant B | 5,222,158 | 455,080 |
| Events in quadrant C | 3,972,510 | 438,945 |
| Events in quadrant D | 5,794,724 | 429,024 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14460 | 2 |
| B | 0 | 19346 | 2 |
| C | 0 | 15998 | 3 |
| D | 0 | 21736 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6209 | 122 | 1.964890% |
| B | 6209 | 200 | 3.221131% |
| C | 6208 | 366 | 5.895619% |
| D | 6208 | 222 | 3.576031% |

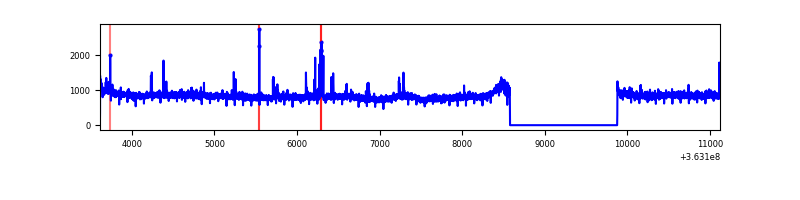

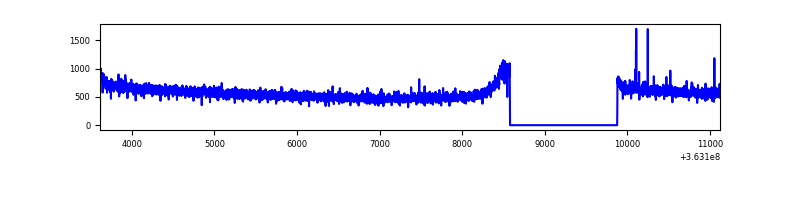

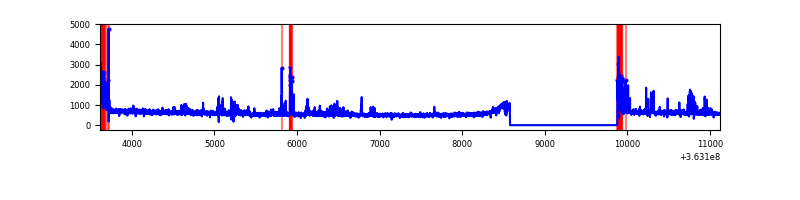

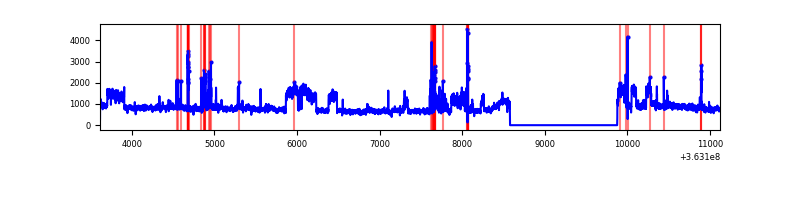

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7509 | 6210 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7509 | 6210 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7508 | 6209 | 58 | 58 | 0.77% | 0.93% |  |
| D | 7508 | 6209 | 54 | 54 | 0.72% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 20182 | 108.03 | 906 | 892 | 178.6 |
| A | 13 | 254 | 12054 | 62.51 | 906 | 892 | 178.6 |
| A | 3 | 137 | 8365 | 41.85 | 906 | 892 | 178.6 |
| B | 6 | 159 | 1628766 | 9752.7 | 886 | 867 | 166.9 |
| B | 4 | 80 | 67572 | 399.63 | 886 | 867 | 166.9 |
| B | 0 | 230 | 19776 | 113.28 | 886 | 867 | 166.9 |
| C | 0 | 10 | 336411 | 1713.07 | 848 | 856 | 195.9 |
| C | 14 | 238 | 165146 | 838.73 | 848 | 856 | 195.9 |
| C | 10 | 22 | 79805 | 403.05 | 848 | 856 | 195.9 |
| D | 8 | 195 | 2163802 | 10649.2 | 875 | 857 | 203.1 |
| D | 2 | 250 | 140204 | 686.07 | 875 | 857 | 203.1 |
| D | 12 | 79 | 119818 | 585.7 | 875 | 857 | 203.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

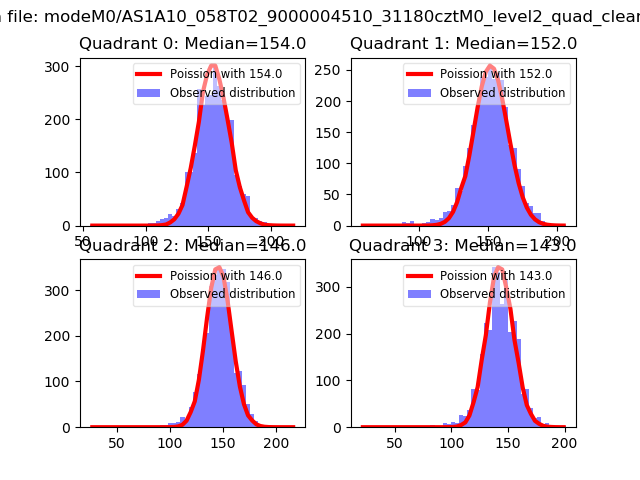

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

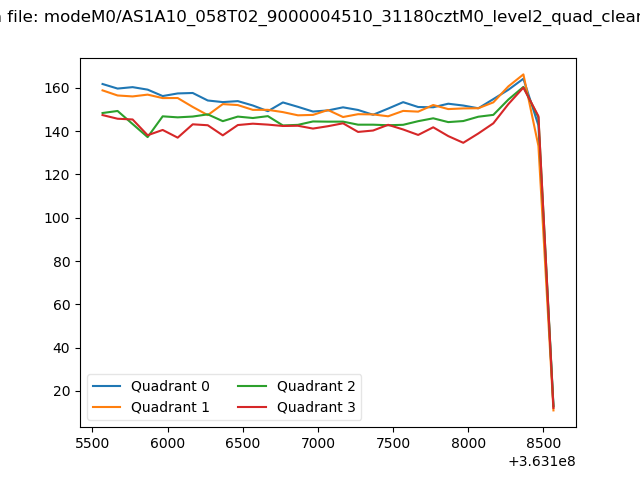

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

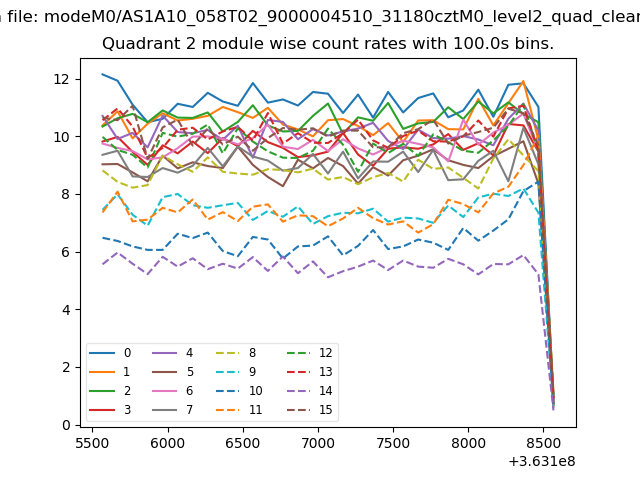

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

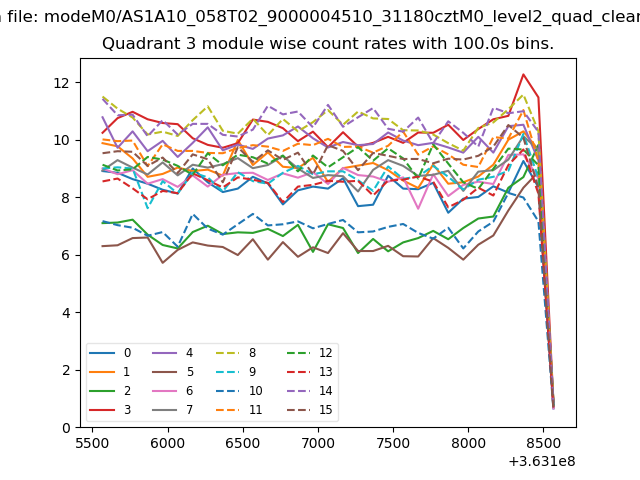

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

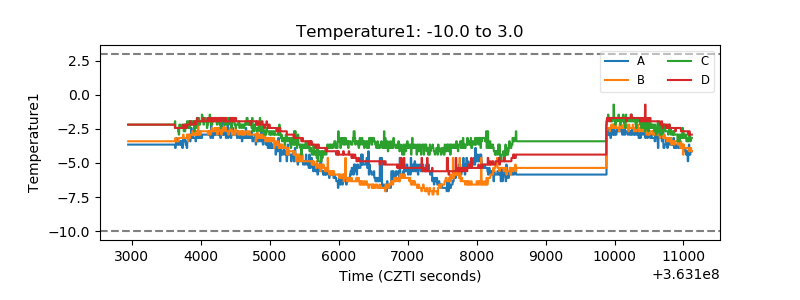

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

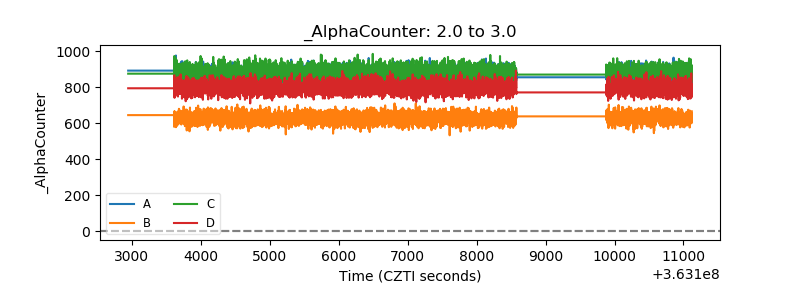

| Alpha Counter |  |

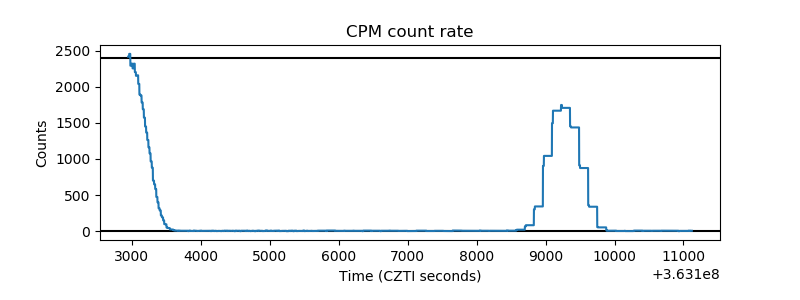

| _CPM_Rate |  |

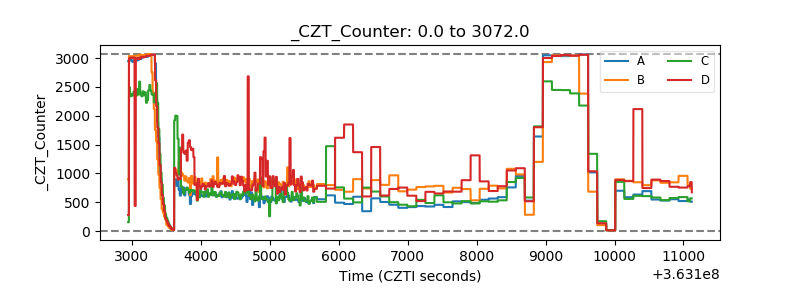

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

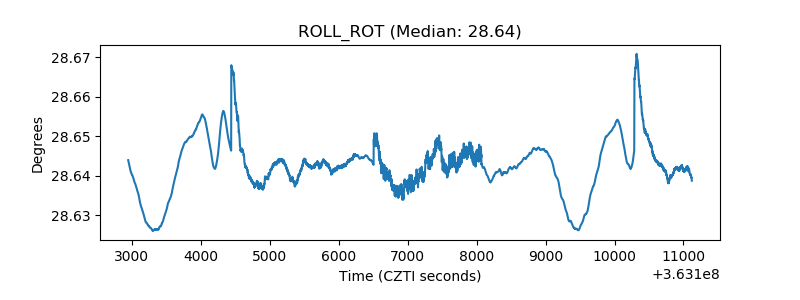

| _ROLL_ROT |  |

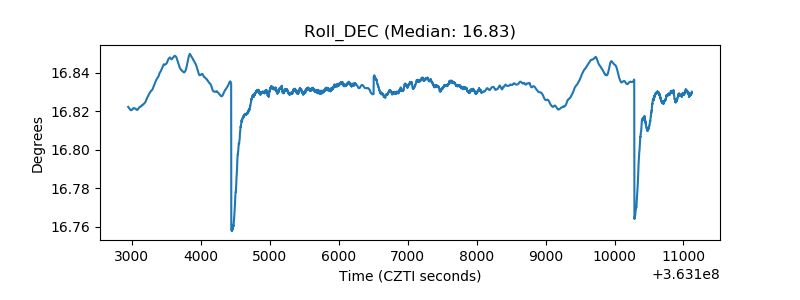

| _Roll_DEC |  |

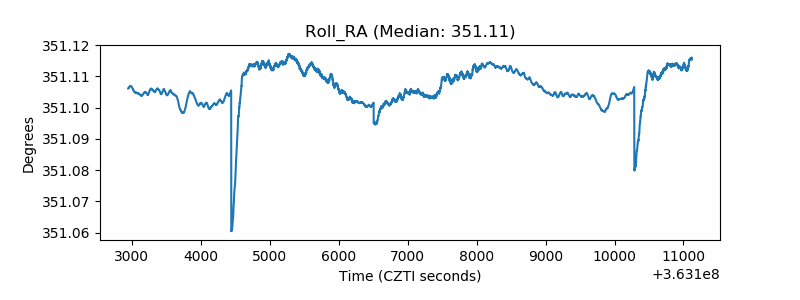

| _Roll_RA |  |
| Veto Counter |  |
