| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_001T01_9000004508_31166cztM0_level2.evt | modeM0/AS1C06_001T01_9000004508_31166cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,759,680 | 94,296,960 |
| Size | 525.2 MB | 89.9 MB |
| Events in quadrant A | 3,199,012 | 626,000 |
| Events in quadrant B | 4,928,116 | 627,758 |
| Events in quadrant C | 3,355,712 | 599,657 |
| Events in quadrant D | 4,793,165 | 585,136 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13197 | 2 |
| B | 0 | 18367 | 1 |
| C | 0 | 13627 | 1 |
| D | 0 | 18553 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5970 | 74 | 1.239531% |
| B | 5971 | 154 | 2.579132% |
| C | 5971 | 151 | 2.528890% |
| D | 5971 | 105 | 1.758499% |

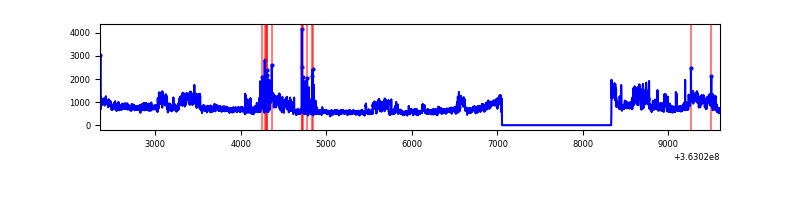

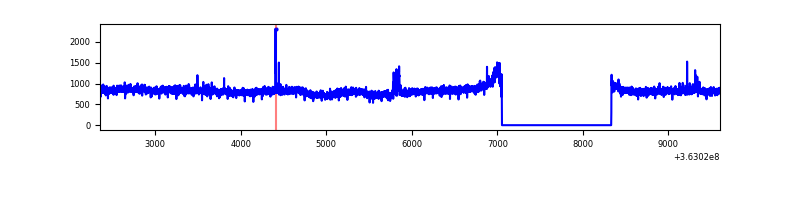

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7250 | 5971 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7251 | 5972 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7251 | 5972 | 12 | 12 | 0.17% | 0.20% |  |
| D | 7251 | 5972 | 15 | 15 | 0.21% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10461 | 58.64 | 828 | 813 | 164.5 |
| A | 3 | 137 | 8046 | 43.96 | 828 | 813 | 164.5 |
| A | 0 | 226 | 6965 | 37.39 | 828 | 813 | 164.5 |
| B | 6 | 159 | 1647756 | 10649.71 | 820 | 803 | 154.6 |
| B | 0 | 190 | 56553 | 360.5 | 820 | 803 | 154.6 |
| B | 12 | 111 | 18452 | 114.12 | 820 | 803 | 154.6 |
| C | 14 | 238 | 130930 | 701.48 | 798 | 806 | 185.5 |
| C | 0 | 10 | 68727 | 366.15 | 798 | 806 | 185.5 |
| C | 3 | 233 | 19993 | 103.43 | 798 | 806 | 185.5 |
| D | 8 | 195 | 1632146 | 8567.02 | 807 | 788 | 190.4 |
| D | 2 | 250 | 65686 | 340.81 | 807 | 788 | 190.4 |
| D | 2 | 234 | 24561 | 124.84 | 807 | 788 | 190.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

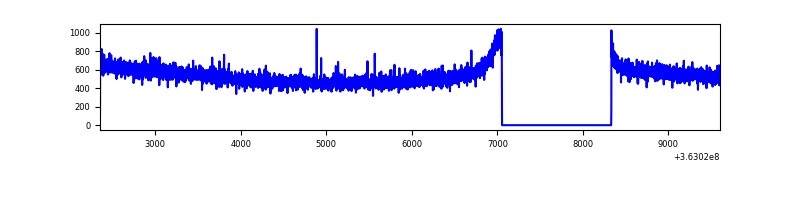

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

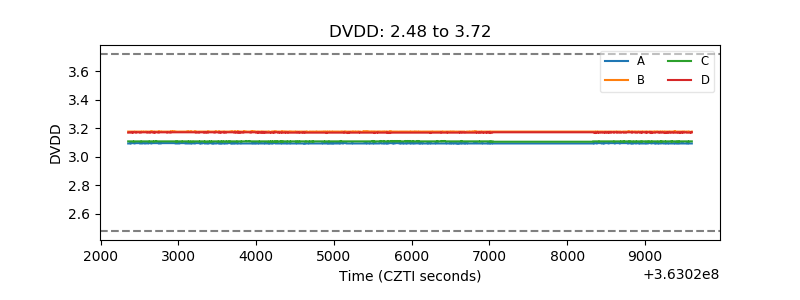

| D_VDD |  |

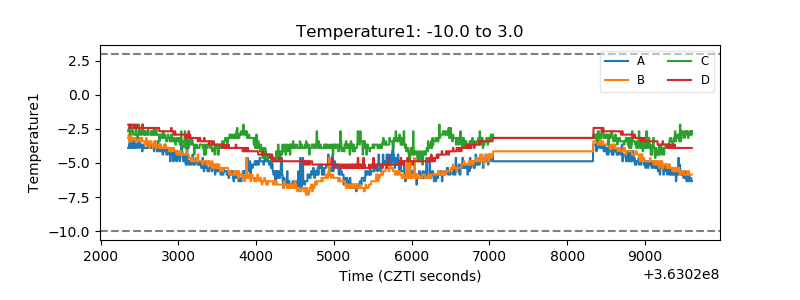

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

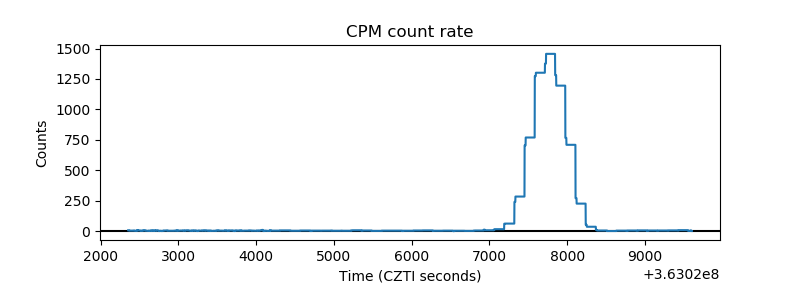

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

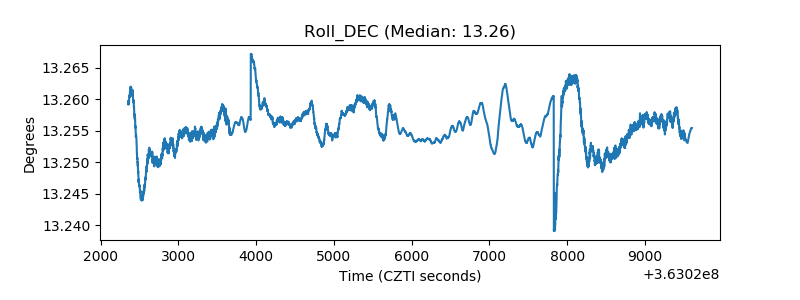

| _ROLL_ROT |  |
| _Roll_DEC |  |

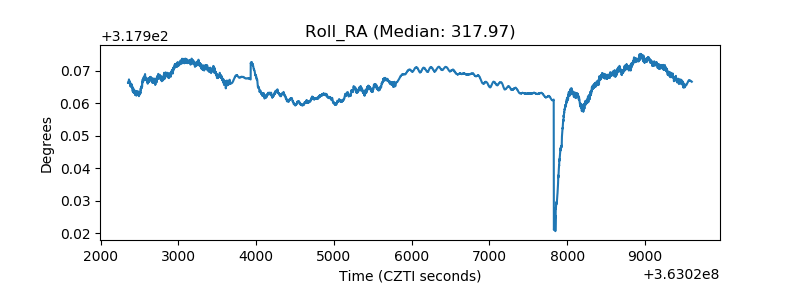

| _Roll_RA |  |
| Veto Counter |  |
