| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_001T01_9000004508_31168cztM0_level2.evt | modeM0/AS1C06_001T01_9000004508_31168cztM0_level2_quad_clean.evt |
| Size (bytes) | 602,858,880 | 95,644,800 |
| Size | 574.9 MB | 91.2 MB |
| Events in quadrant A | 3,084,529 | 637,762 |
| Events in quadrant B | 4,953,884 | 635,902 |
| Events in quadrant C | 3,160,967 | 607,357 |
| Events in quadrant D | 6,634,211 | 577,686 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13061 | 1 |
| B | 0 | 19032 | 1 |
| C | 0 | 13159 | 1 |
| D | 0 | 24190 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6276 | 45 | 0.717017% |
| B | 6277 | 127 | 2.023260% |
| C | 6277 | 121 | 1.927672% |
| D | 6277 | 591 | 9.415326% |

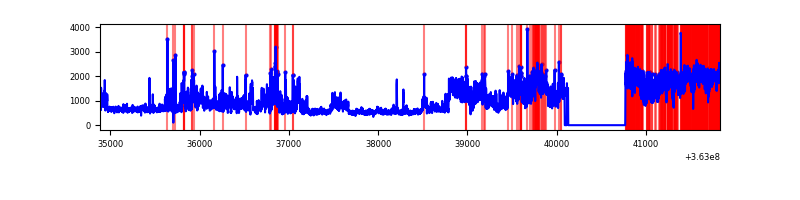

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6941 | 6278 | 1 | 1 | 0.01% | 0.02% |  |
| B | 6942 | 6279 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6942 | 6279 | 1 | 1 | 0.01% | 0.02% |  |
| D | 6942 | 6279 | 468 | 468 | 6.74% | 7.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 255 | 11927 | 69.87 | 794 | 779 | 159.5 |
| A | 12 | 96 | 10526 | 61.09 | 794 | 779 | 159.5 |
| A | 13 | 254 | 10048 | 58.1 | 794 | 779 | 159.5 |
| B | 6 | 159 | 1819246 | 12010.67 | 784 | 764 | 151.4 |
| B | 0 | 190 | 41894 | 271.65 | 784 | 764 | 151.4 |
| B | 12 | 111 | 18975 | 120.28 | 784 | 764 | 151.4 |
| C | 14 | 238 | 124388 | 681.62 | 763 | 769 | 181.4 |
| C | 3 | 233 | 28823 | 154.69 | 763 | 769 | 181.4 |
| C | 2 | 114 | 14358 | 74.93 | 763 | 769 | 181.4 |
| D | 12 | 79 | 2449813 | 12370.52 | 745 | 734 | 198.0 |
| D | 8 | 195 | 1147029 | 5790.04 | 745 | 734 | 198.0 |
| D | 2 | 250 | 80307 | 401.93 | 745 | 734 | 198.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

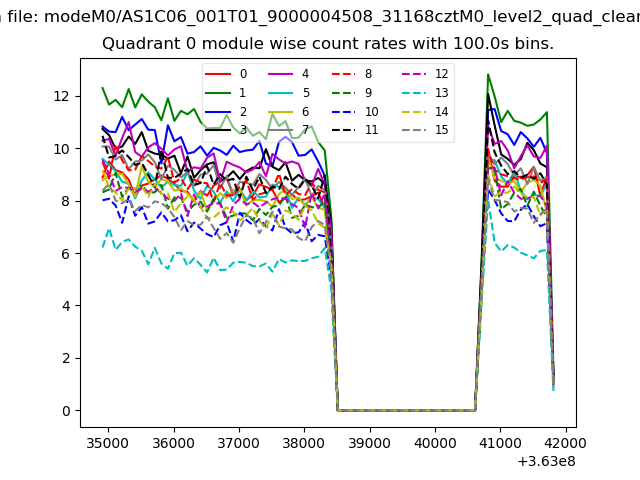

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

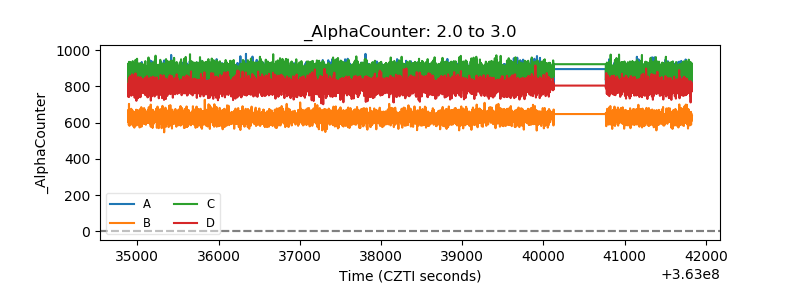

| Alpha Counter |  |

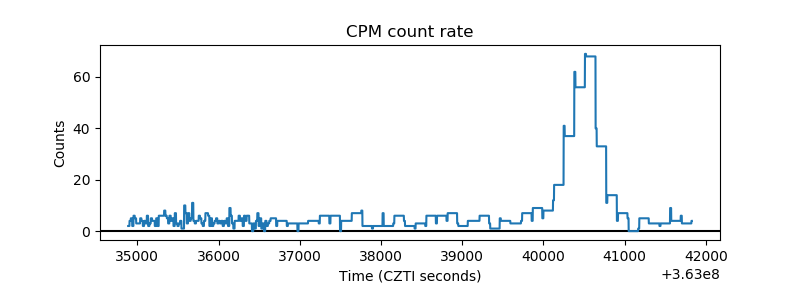

| _CPM_Rate |  |

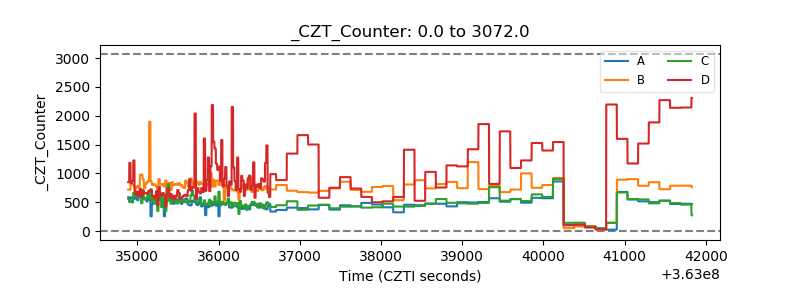

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

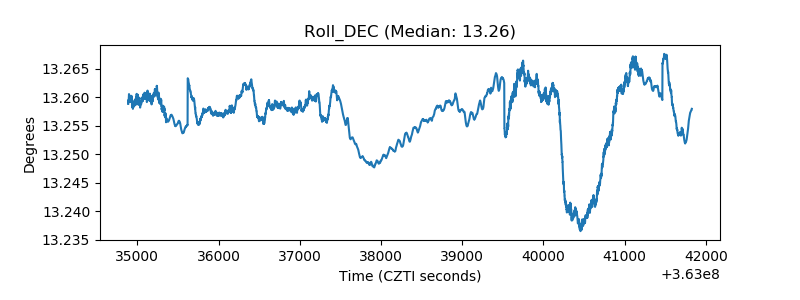

| _Roll_DEC |  |

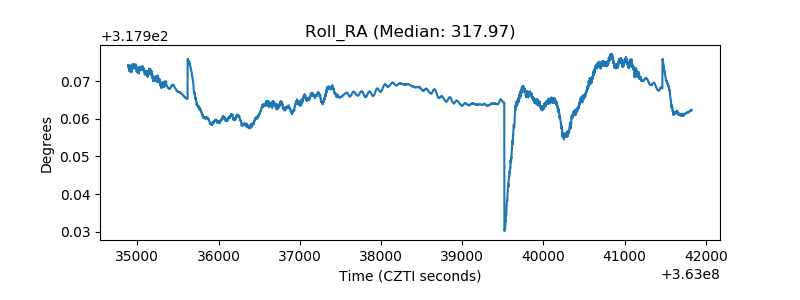

| _Roll_RA |  |

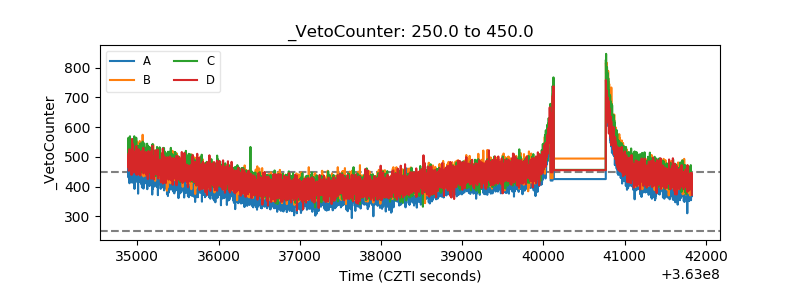

| Veto Counter |  |
