| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T02_9000004514_31208cztM0_level2.evt | modeM0/AS1A10_103T02_9000004514_31208cztM0_level2_quad_clean.evt |
| Size (bytes) | 685,457,280 | 106,254,720 |
| Size | 653.7 MB | 101.3 MB |
| Events in quadrant A | 3,540,825 | 726,208 |
| Events in quadrant B | 6,309,517 | 690,379 |
| Events in quadrant C | 3,779,713 | 689,096 |
| Events in quadrant D | 6,701,368 | 669,380 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14726 | 2 |
| B | 0 | 22999 | 2 |
| C | 0 | 15467 | 2 |
| D | 0 | 24465 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6347 | 126 | 1.985190% |
| B | 6347 | 586 | 9.232708% |
| C | 6347 | 282 | 4.443044% |
| D | 6347 | 254 | 4.001891% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7627 | 6348 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7627 | 6348 | 211 | 211 | 2.77% | 3.32% |  |
| C | 7627 | 6348 | 39 | 39 | 0.51% | 0.61% |  |
| D | 7627 | 6348 | 68 | 68 | 0.89% | 1.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11057 | 56.94 | 917 | 903 | 178.3 |
| A | 3 | 137 | 8063 | 40.15 | 917 | 903 | 178.3 |
| A | 0 | 226 | 7839 | 38.9 | 917 | 903 | 178.3 |
| B | 6 | 159 | 1645081 | 10199.66 | 878 | 859 | 161.2 |
| B | 4 | 80 | 1091221 | 6763.88 | 878 | 859 | 161.2 |
| B | 0 | 190 | 73696 | 451.83 | 878 | 859 | 161.2 |
| C | 10 | 22 | 213059 | 1081.93 | 858 | 865 | 196.1 |
| C | 14 | 238 | 147201 | 746.13 | 858 | 865 | 196.1 |
| C | 0 | 10 | 30367 | 150.42 | 858 | 865 | 196.1 |
| D | 8 | 195 | 3183834 | 15197.14 | 871 | 851 | 209.4 |
| D | 13 | 249 | 84878 | 401.19 | 871 | 851 | 209.4 |
| D | 2 | 250 | 71967 | 339.54 | 871 | 851 | 209.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

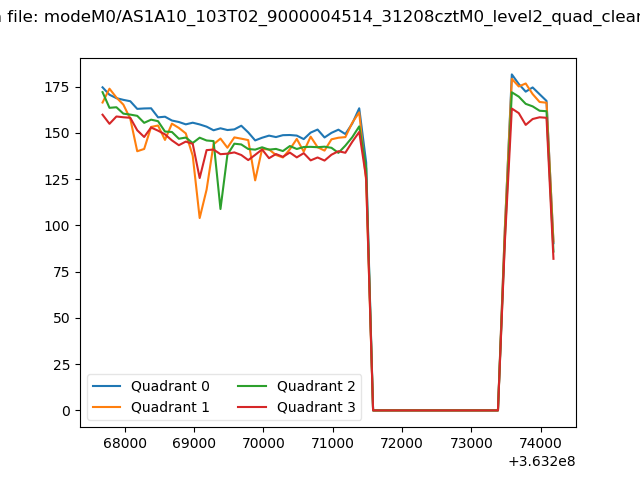

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

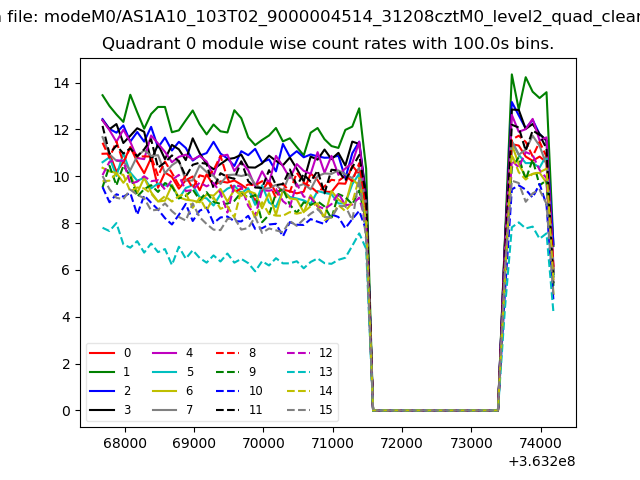

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

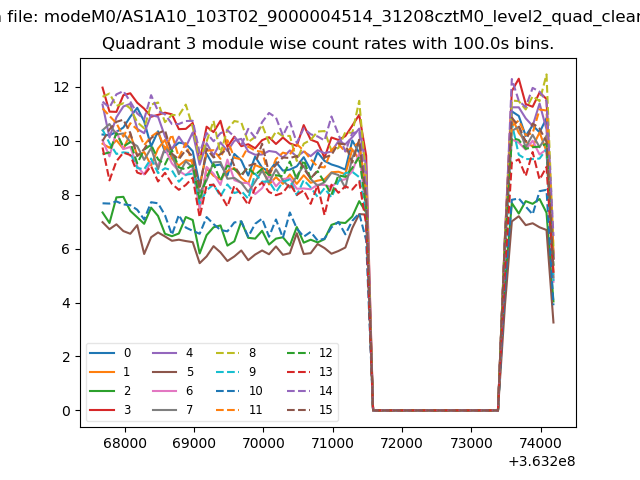

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

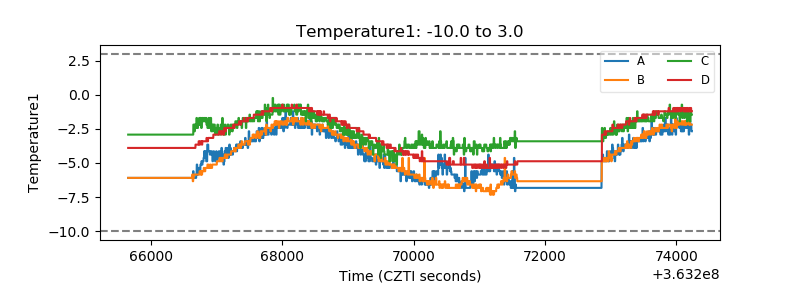

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

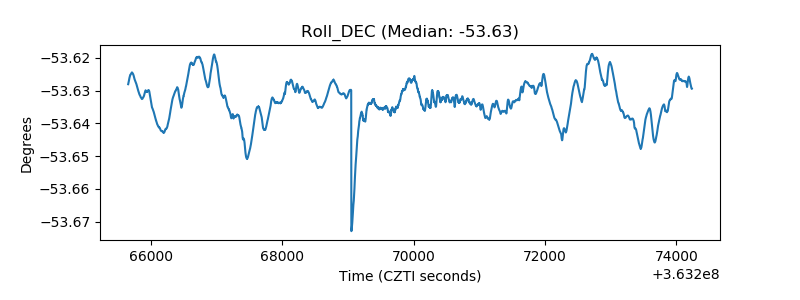

| _Roll_DEC |  |

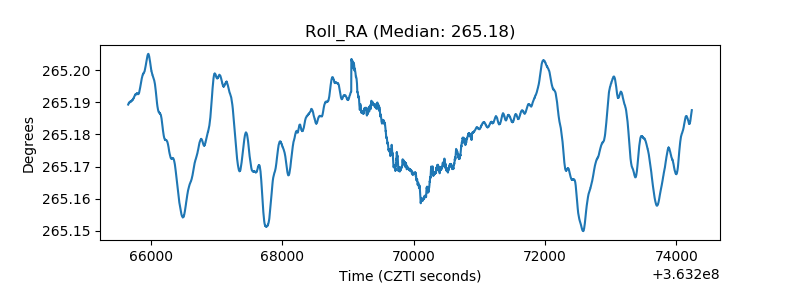

| _Roll_RA |  |
| Veto Counter |  |
