| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_019T01_9000004516_31209cztM0_level2.evt | modeM0/AS1T04_019T01_9000004516_31209cztM0_level2_quad_clean.evt |
| Size (bytes) | 157,075,200 | 15,958,080 |
| Size | 149.8 MB | 15.2 MB |
| Events in quadrant A | 812,085 | 103,077 |
| Events in quadrant B | 1,219,644 | 102,885 |
| Events in quadrant C | 855,765 | 96,733 |
| Events in quadrant D | 1,774,019 | 77,449 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3284 | 1 |
| B | 0 | 4381 | 1 |
| C | 0 | 3488 | 1 |
| D | 0 | 6191 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1369 | 19 | 1.387874% |
| B | 1369 | 64 | 4.674945% |
| C | 1369 | 59 | 4.309715% |
| D | 1369 | 364 | 26.588751% |

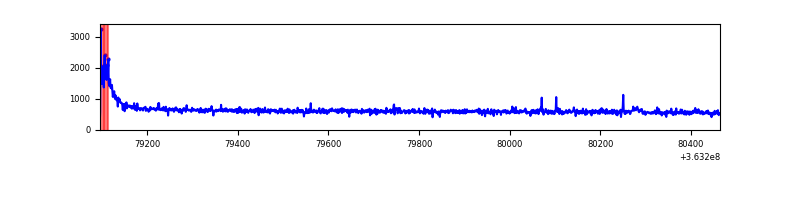

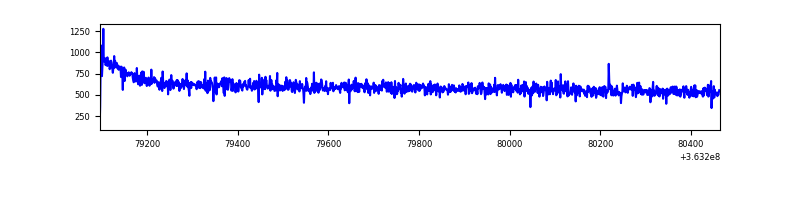

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1369 | 1369 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1369 | 1369 | 4 | 4 | 0.29% | 0.29% |  |
| C | 1369 | 1369 | 6 | 6 | 0.44% | 0.44% |  |
| D | 1369 | 1369 | 297 | 297 | 21.69% | 21.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 137 | 1994 | 41.11 | 210 | 206 | 43.5 |
| A | 13 | 254 | 1982 | 40.84 | 210 | 206 | 43.5 |
| A | 0 | 226 | 1706 | 34.49 | 210 | 206 | 43.5 |
| B | 6 | 159 | 385482 | 9455.51 | 204 | 199 | 40.7 |
| B | 4 | 80 | 17873 | 433.75 | 204 | 199 | 40.7 |
| B | 0 | 190 | 14248 | 344.79 | 204 | 199 | 40.7 |
| C | 0 | 10 | 36474 | 757.88 | 198 | 199 | 47.9 |
| C | 14 | 238 | 32643 | 677.84 | 198 | 199 | 47.9 |
| C | 10 | 22 | 8157 | 166.26 | 198 | 199 | 47.9 |
| D | 8 | 195 | 1034183 | 22488.63 | 189 | 184 | 46.0 |
| D | 12 | 218 | 10057 | 214.73 | 189 | 184 | 46.0 |
| D | 2 | 250 | 4749 | 99.29 | 189 | 184 | 46.0 |

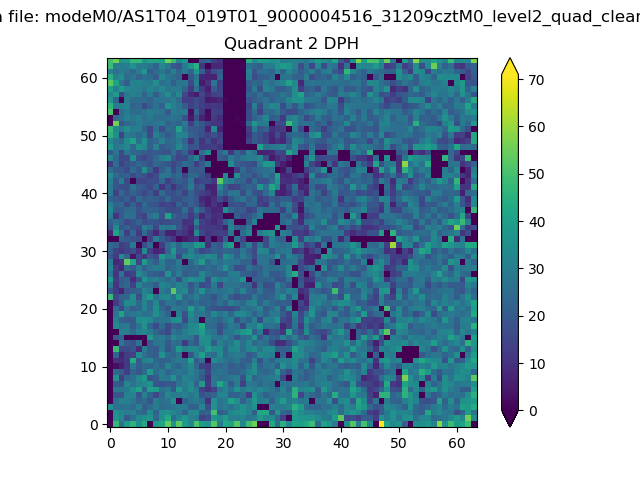

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

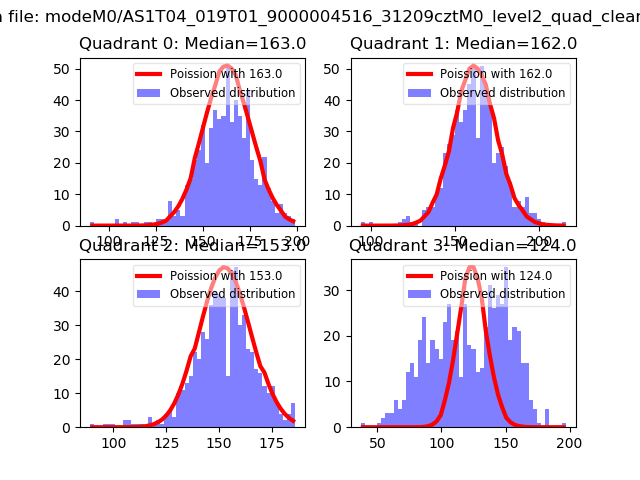

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

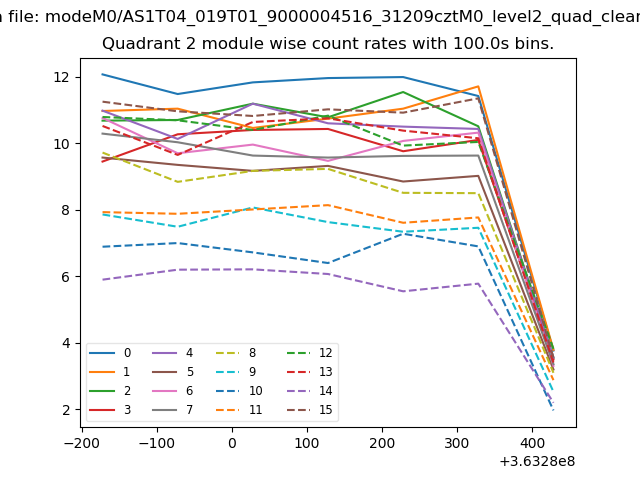

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

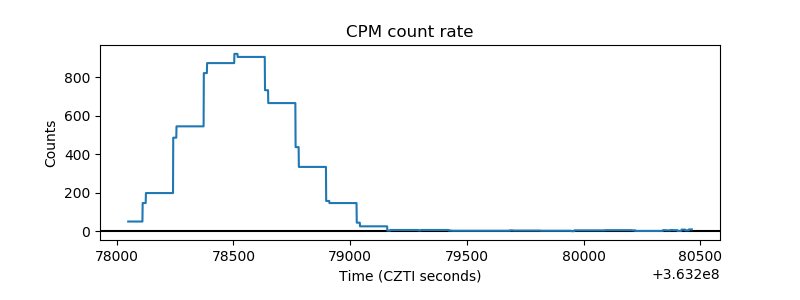

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

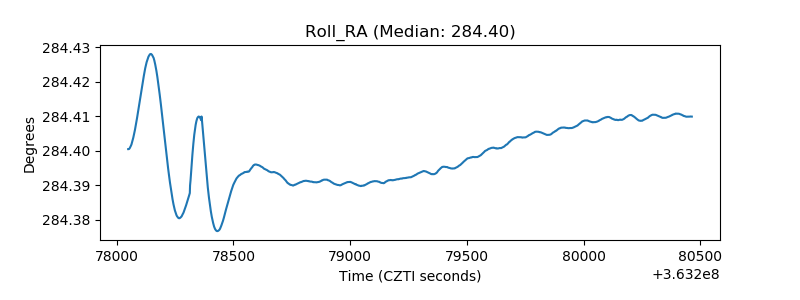

| _Roll_RA |  |

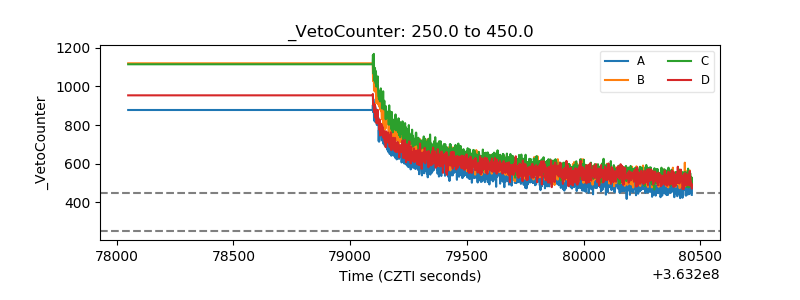

| Veto Counter |  |
