| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_019T01_9000004516_31211cztM0_level2.evt | modeM0/AS1T04_019T01_9000004516_31211cztM0_level2_quad_clean.evt |
| Size (bytes) | 695,917,440 | 108,797,760 |
| Size | 663.7 MB | 103.8 MB |
| Events in quadrant A | 3,733,108 | 716,596 |
| Events in quadrant B | 6,003,029 | 712,839 |
| Events in quadrant C | 3,972,747 | 685,302 |
| Events in quadrant D | 6,873,031 | 671,272 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15594 | 3 |
| B | 0 | 22680 | 2 |
| C | 0 | 16238 | 2 |
| D | 0 | 25651 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7308 | 191 | 2.613574% |
| B | 7309 | 416 | 5.691613% |
| C | 7309 | 362 | 4.952798% |
| D | 7309 | 305 | 4.172937% |

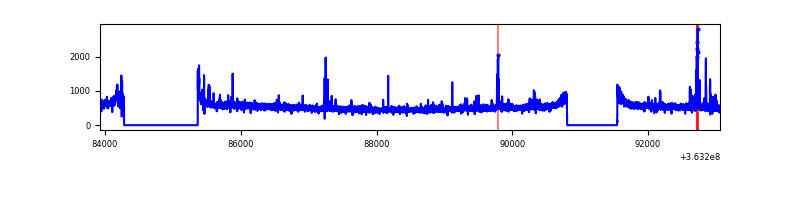

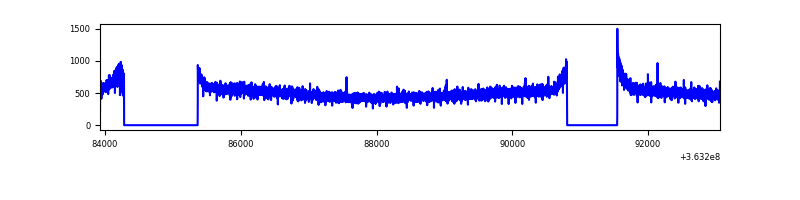

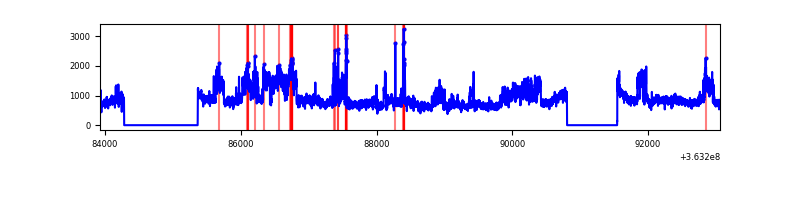

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9133 | 7310 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9134 | 7311 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9134 | 7311 | 6 | 6 | 0.07% | 0.08% |  |
| D | 9134 | 7311 | 38 | 38 | 0.42% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12175 | 57.85 | 968 | 949 | 194.1 |
| A | 3 | 137 | 9852 | 45.88 | 968 | 949 | 194.1 |
| A | 0 | 226 | 8026 | 36.47 | 968 | 949 | 194.1 |
| B | 6 | 159 | 2168890 | 11871.36 | 941 | 915 | 182.6 |
| B | 0 | 190 | 89591 | 485.57 | 941 | 915 | 182.6 |
| B | 0 | 230 | 34809 | 185.6 | 941 | 915 | 182.6 |
| C | 14 | 238 | 161535 | 729.73 | 930 | 935 | 220.1 |
| C | 10 | 22 | 123950 | 558.95 | 930 | 935 | 220.1 |
| C | 14 | 254 | 22390 | 97.49 | 930 | 935 | 220.1 |
| D | 8 | 195 | 3165126 | 14266.1 | 941 | 919 | 221.8 |
| D | 11 | 176 | 140125 | 627.62 | 941 | 919 | 221.8 |
| D | 2 | 234 | 26921 | 117.23 | 941 | 919 | 221.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

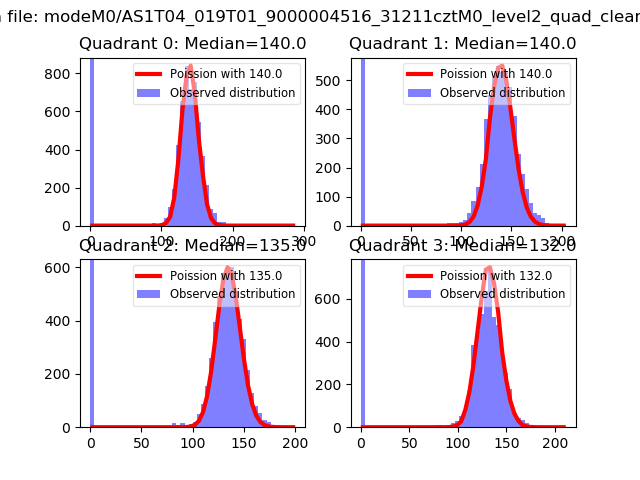

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

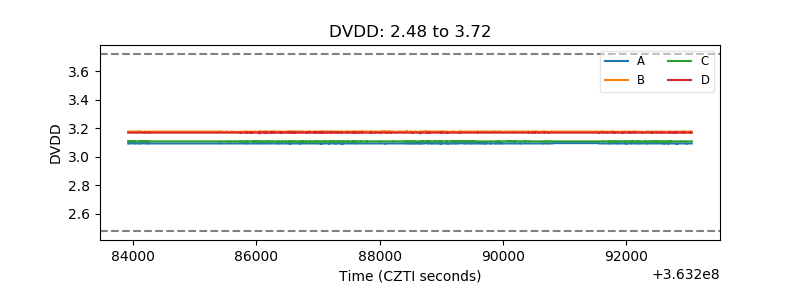

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

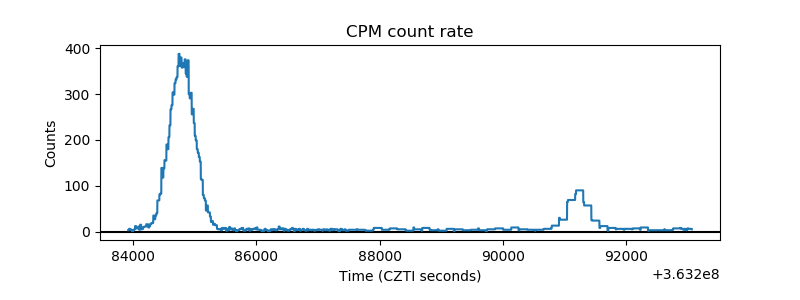

| _CPM_Rate |  |

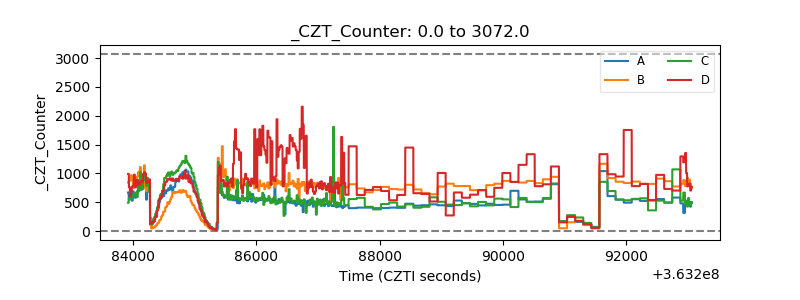

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

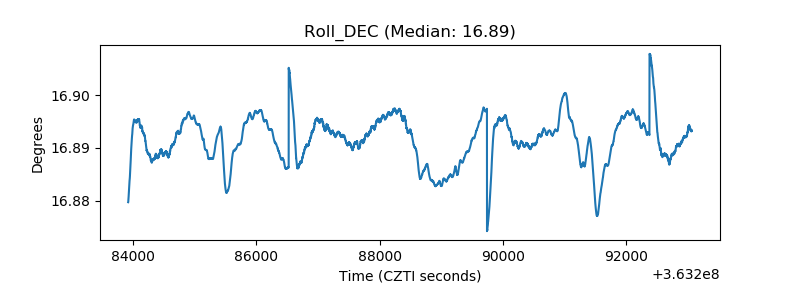

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
