| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T02_9000004518_31221cztM0_level2.evt | modeM0/AS1C06_002T02_9000004518_31221cztM0_level2_quad_clean.evt |
| Size (bytes) | 619,433,280 | 108,348,480 |
| Size | 590.7 MB | 103.3 MB |
| Events in quadrant A | 3,368,182 | 743,512 |
| Events in quadrant B | 5,453,860 | 720,309 |
| Events in quadrant C | 3,945,685 | 692,553 |
| Events in quadrant D | 5,563,573 | 682,533 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14022 | 2 |
| B | 0 | 20440 | 2 |
| C | 0 | 15775 | 2 |
| D | 0 | 20959 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6343 | 101 | 1.592306% |
| B | 6343 | 244 | 3.846760% |
| C | 6343 | 305 | 4.808450% |
| D | 6343 | 210 | 3.310736% |

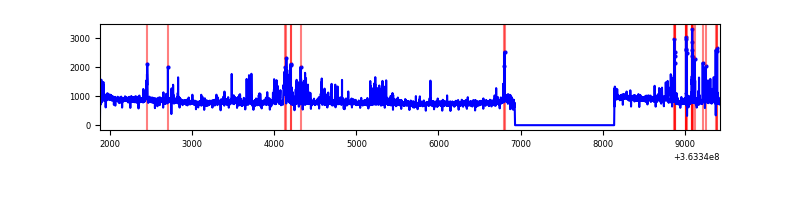

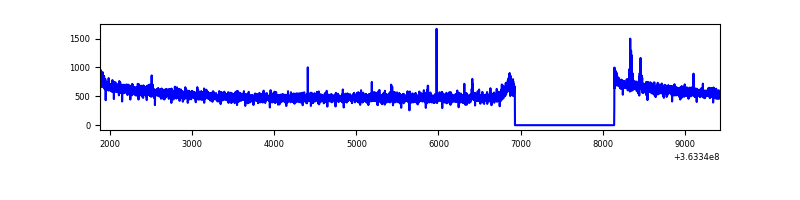

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7553 | 6343 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7553 | 6344 | 29 | 29 | 0.38% | 0.46% |  |
| C | 7553 | 6344 | 62 | 62 | 0.82% | 0.98% |  |
| D | 7553 | 6344 | 139 | 139 | 1.84% | 2.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 15427 | 85.56 | 868 | 853 | 170.3 |
| A | 13 | 254 | 11951 | 65.15 | 868 | 853 | 170.3 |
| A | 3 | 137 | 7854 | 41.1 | 868 | 853 | 170.3 |
| B | 6 | 159 | 1738646 | 11057.91 | 837 | 820 | 157.2 |
| B | 0 | 190 | 182977 | 1159.08 | 837 | 820 | 157.2 |
| B | 4 | 80 | 112993 | 713.76 | 837 | 820 | 157.2 |
| C | 0 | 10 | 333622 | 1820.67 | 796 | 803 | 182.8 |
| C | 10 | 22 | 179478 | 977.44 | 796 | 803 | 182.8 |
| C | 14 | 238 | 139937 | 761.13 | 796 | 803 | 182.8 |
| D | 8 | 195 | 2222771 | 10706.35 | 820 | 805 | 207.5 |
| D | 12 | 79 | 104031 | 497.39 | 820 | 805 | 207.5 |
| D | 10 | 253 | 31754 | 149.13 | 820 | 805 | 207.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

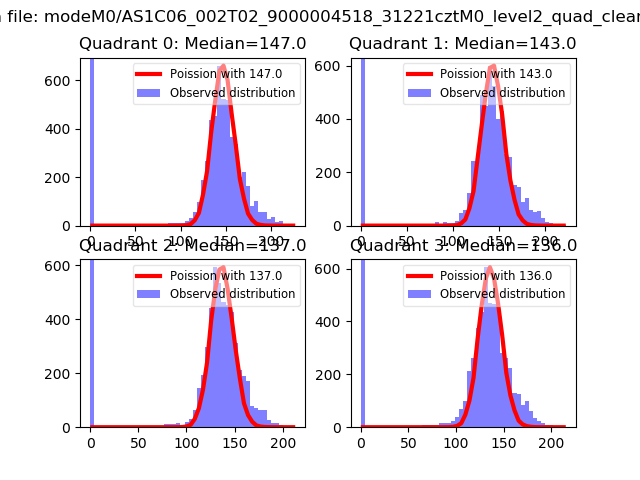

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

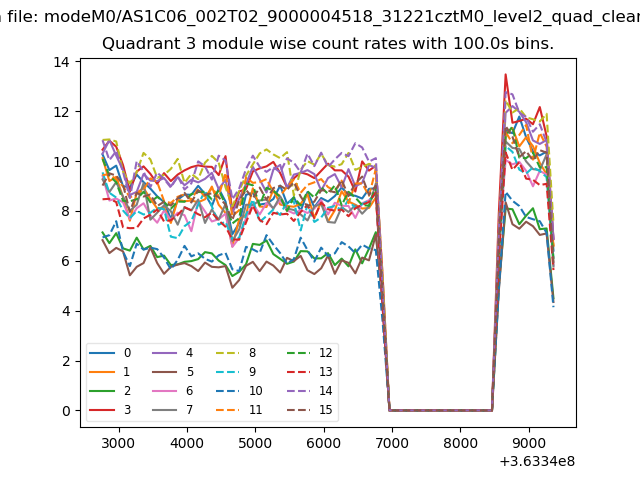

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

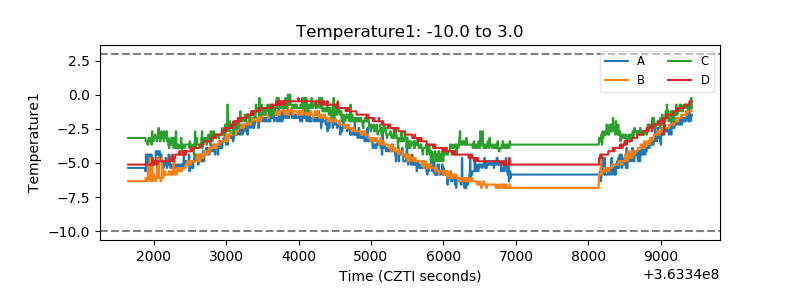

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

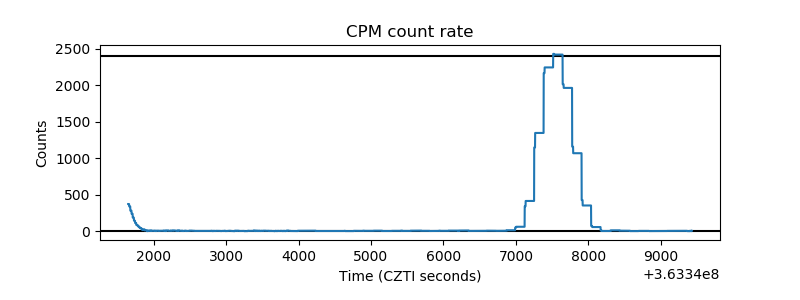

| _CPM_Rate |  |

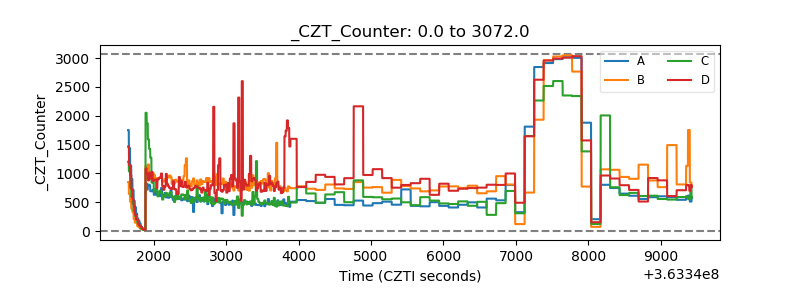

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

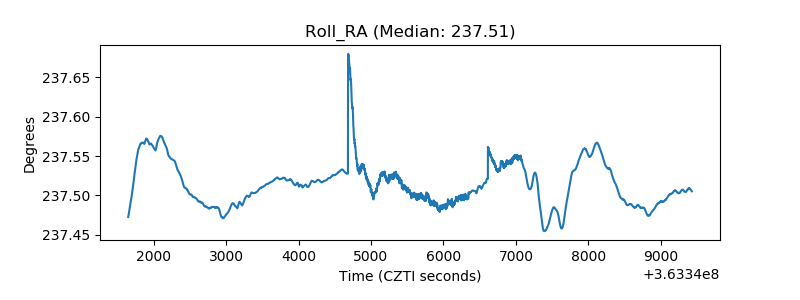

| _Roll_RA |  |
| Veto Counter |  |
