| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T02_9000004518_31226cztM0_level2.evt | modeM0/AS1C06_002T02_9000004518_31226cztM0_level2_quad_clean.evt |
| Size (bytes) | 720,247,680 | 114,367,680 |
| Size | 686.9 MB | 109.1 MB |
| Events in quadrant A | 3,336,817 | 780,162 |
| Events in quadrant B | 6,241,645 | 754,326 |
| Events in quadrant C | 4,146,539 | 731,637 |
| Events in quadrant D | 7,614,450 | 708,350 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14575 | 3 |
| B | 0 | 23554 | 3 |
| C | 0 | 16892 | 3 |
| D | 0 | 27643 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7012 | 50 | 0.713063% |
| B | 7012 | 282 | 4.021677% |
| C | 7012 | 315 | 4.492299% |
| D | 7012 | 704 | 10.039932% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7612 | 7014 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7612 | 7014 | 57 | 57 | 0.75% | 0.81% |  |
| C | 7612 | 7014 | 94 | 94 | 1.23% | 1.34% |  |
| D | 7612 | 7014 | 493 | 493 | 6.48% | 7.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 29822 | 169.14 | 853 | 835 | 171.4 |
| A | 13 | 254 | 14165 | 77.78 | 853 | 835 | 171.4 |
| A | 5 | 16 | 10010 | 53.54 | 853 | 835 | 171.4 |
| B | 6 | 159 | 2245814 | 14554.98 | 831 | 811 | 154.2 |
| B | 4 | 80 | 318190 | 2057.66 | 831 | 811 | 154.2 |
| B | 4 | 171 | 228287 | 1474.79 | 831 | 811 | 154.2 |
| C | 0 | 10 | 536432 | 2832.32 | 807 | 811 | 189.1 |
| C | 14 | 238 | 141989 | 746.54 | 807 | 811 | 189.1 |
| C | 10 | 22 | 127673 | 670.84 | 807 | 811 | 189.1 |
| D | 8 | 195 | 4170830 | 19993.45 | 811 | 794 | 208.6 |
| D | 12 | 6 | 121170 | 577.15 | 811 | 794 | 208.6 |
| D | 2 | 250 | 64891 | 307.32 | 811 | 794 | 208.6 |

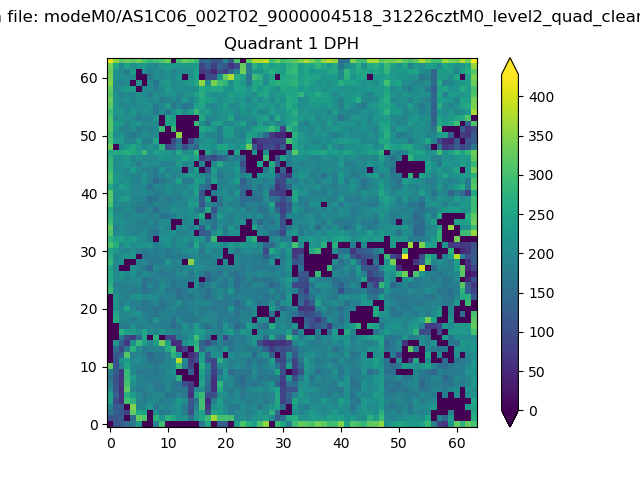

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

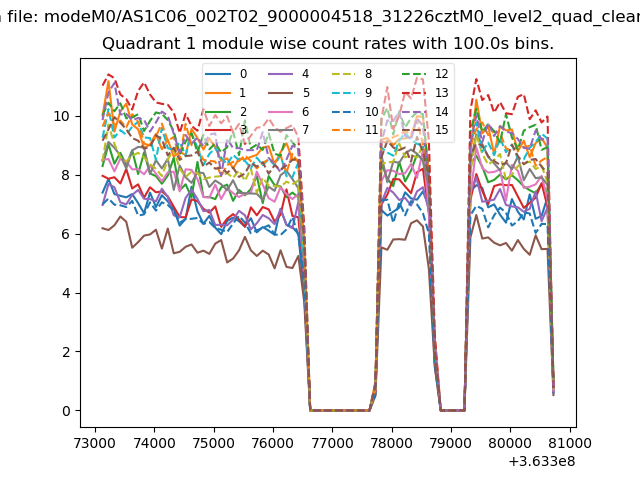

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

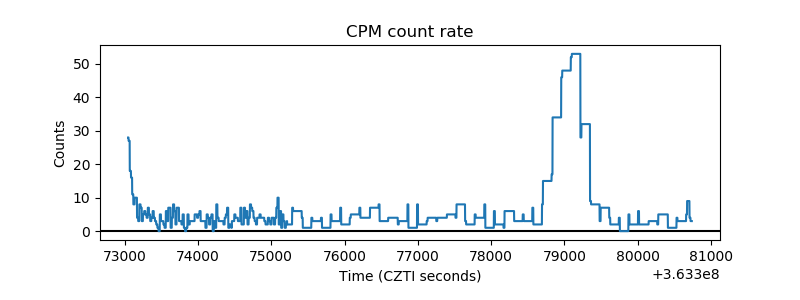

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

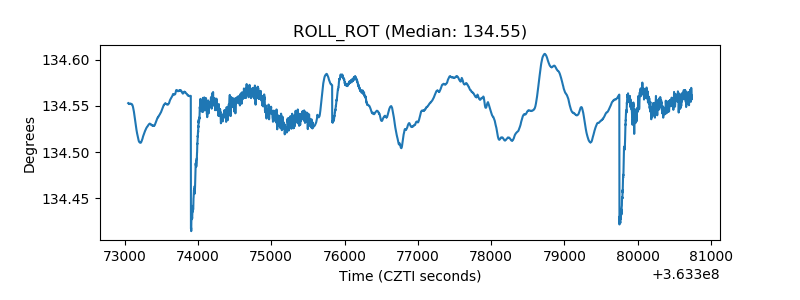

| _ROLL_ROT |  |
| _Roll_DEC |  |

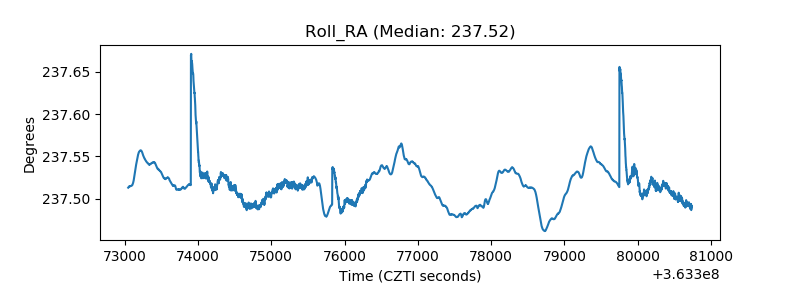

| _Roll_RA |  |
| Veto Counter |  |
