| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T02_9000004518_31228cztM0_level2.evt | modeM0/AS1C06_002T02_9000004518_31228cztM0_level2_quad_clean.evt |
| Size (bytes) | 732,340,800 | 120,605,760 |
| Size | 698.4 MB | 115.0 MB |
| Events in quadrant A | 3,496,492 | 817,150 |
| Events in quadrant B | 6,816,515 | 785,592 |
| Events in quadrant C | 4,124,756 | 778,037 |
| Events in quadrant D | 7,234,722 | 749,137 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15506 | 2 |
| B | 0 | 25807 | 2 |
| C | 0 | 17223 | 2 |
| D | 0 | 26696 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7509 | 27 | 0.359569% |
| B | 7510 | 405 | 5.392810% |
| C | 7510 | 279 | 3.715047% |
| D | 7510 | 449 | 5.978695% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

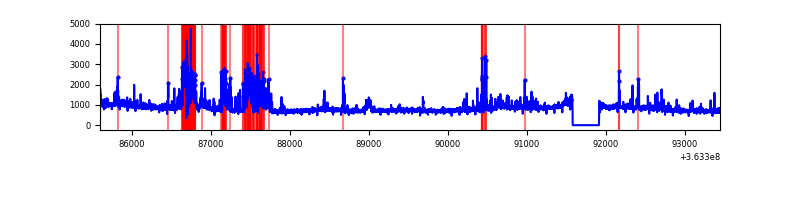

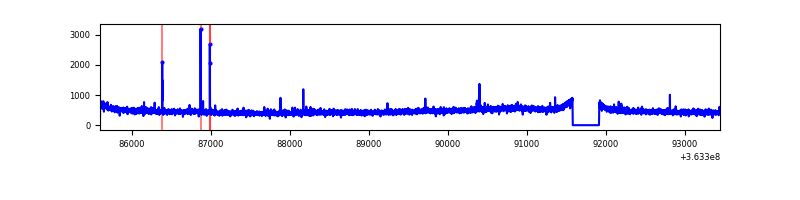

| A | 7844 | 7510 | 4 | 4 | 0.05% | 0.05% |  |
| B | 7845 | 7511 | 182 | 182 | 2.32% | 2.42% |  |

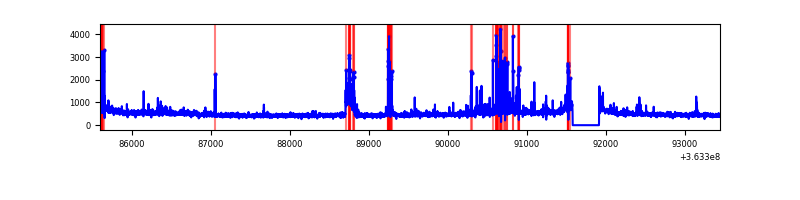

| C | 7845 | 7511 | 78 | 78 | 0.99% | 1.04% |  |

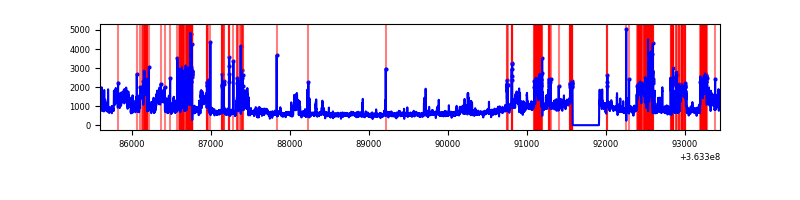

| D | 7845 | 7511 | 368 | 368 | 4.69% | 4.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 17630 | 93.05 | 893 | 873 | 180.1 |
| A | 13 | 254 | 15717 | 82.42 | 893 | 873 | 180.1 |
| A | 15 | 174 | 14584 | 76.13 | 893 | 873 | 180.1 |
| B | 6 | 159 | 2277889 | 13706.2 | 873 | 850 | 166.1 |
| B | 4 | 80 | 807858 | 4857.63 | 873 | 850 | 166.1 |
| B | 4 | 171 | 108642 | 648.83 | 873 | 850 | 166.1 |
| C | 0 | 10 | 374526 | 1866.18 | 852 | 855 | 200.2 |
| C | 14 | 238 | 145770 | 723.73 | 852 | 855 | 200.2 |
| C | 10 | 22 | 107142 | 530.82 | 852 | 855 | 200.2 |
| D | 8 | 195 | 3126481 | 14229.6 | 850 | 832 | 219.7 |
| D | 15 | 0 | 230304 | 1044.68 | 850 | 832 | 219.7 |
| D | 7 | 69 | 143170 | 648.0 | 850 | 832 | 219.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

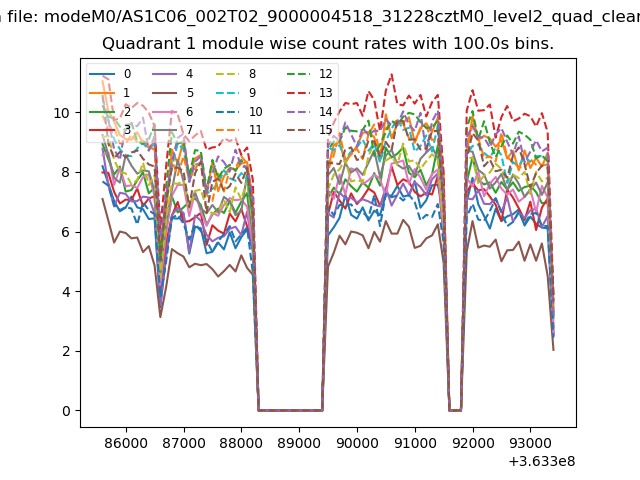

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

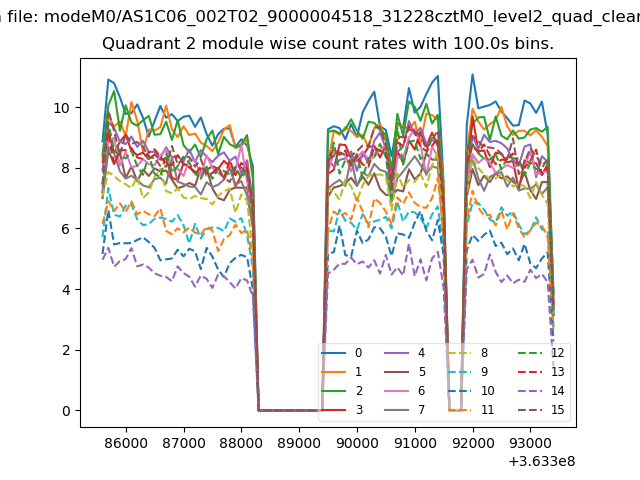

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

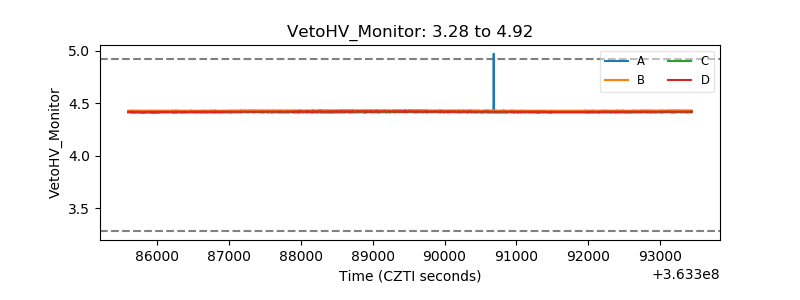

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

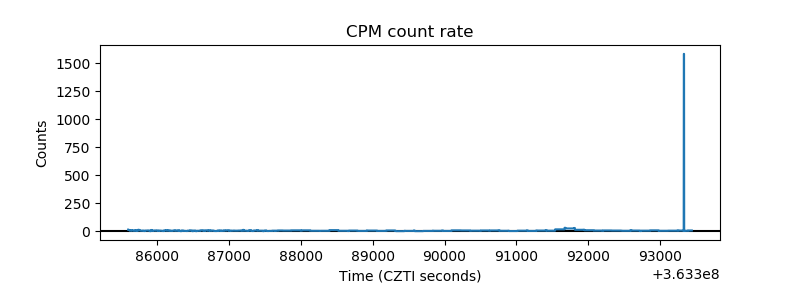

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
