| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T02_9000004518_31237cztM0_level2.evt | modeM0/AS1C06_002T02_9000004518_31237cztM0_level2_quad_clean.evt |
| Size (bytes) | 841,872,960 | 133,165,440 |
| Size | 802.9 MB | 127.0 MB |
| Events in quadrant A | 3,498,738 | 1,017,287 |
| Events in quadrant B | 10,892,412 | 715,179 |
| Events in quadrant C | 3,793,968 | 944,931 |
| Events in quadrant D | 6,881,514 | 909,463 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14399 | 0 |
| B | 0 | 36697 | 0 |
| C | 0 | 15349 | 0 |
| D | 0 | 25120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6376 | 107 | 1.678168% |
| B | 6376 | 3086 | 48.400251% |
| C | 6375 | 222 | 3.482353% |
| D | 6376 | 507 | 7.951694% |

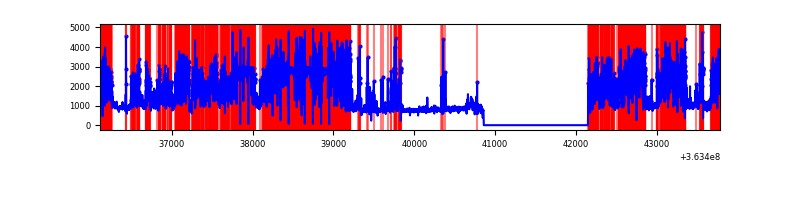

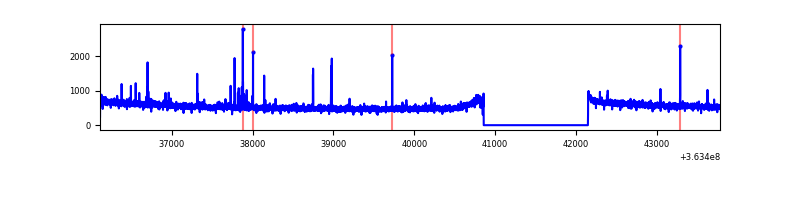

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7666 | 6377 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7666 | 6377 | 2335 | 2335 | 30.46% | 36.62% |  |
| C | 7665 | 6376 | 40 | 40 | 0.52% | 0.63% |  |
| D | 7666 | 6377 | 407 | 407 | 5.31% | 6.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 55269 | 313.17 | 887 | 872 | 173.7 |
| A | 13 | 254 | 11655 | 62.08 | 887 | 872 | 173.7 |
| A | 0 | 207 | 10611 | 56.07 | 887 | 872 | 173.7 |
| B | 14 | 167 | 6460180 | 53567.84 | 657 | 644 | 120.6 |
| B | 6 | 159 | 1354263 | 11225.33 | 657 | 644 | 120.6 |
| B | 10 | 245 | 145456 | 1200.9 | 657 | 644 | 120.6 |
| C | 0 | 10 | 231978 | 1224.67 | 826 | 832 | 188.7 |
| C | 14 | 238 | 134739 | 709.47 | 826 | 832 | 188.7 |
| C | 3 | 233 | 119698 | 629.78 | 826 | 832 | 188.7 |
| D | 8 | 195 | 2929459 | 15044.88 | 833 | 815 | 194.7 |
| D | 12 | 79 | 296794 | 1520.49 | 833 | 815 | 194.7 |
| D | 10 | 253 | 181531 | 928.37 | 833 | 815 | 194.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

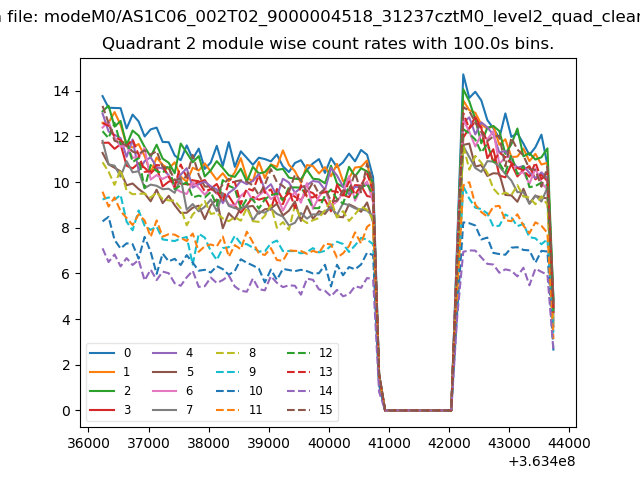

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

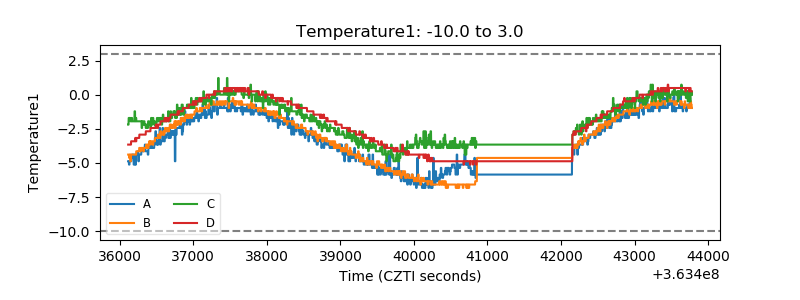

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

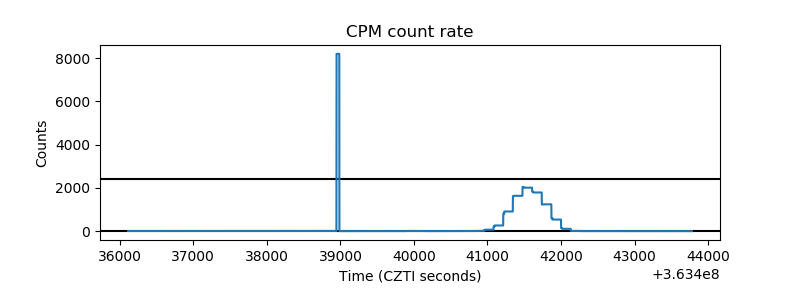

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

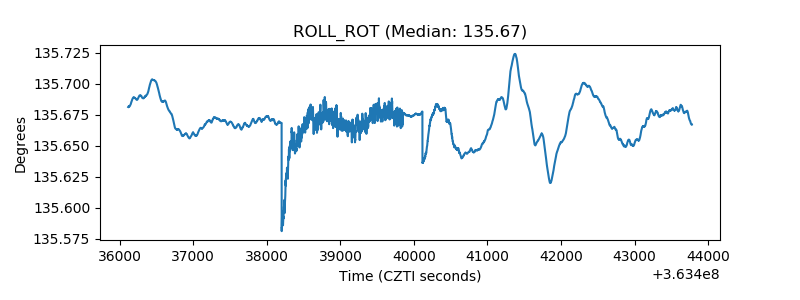

| _ROLL_ROT |  |
| _Roll_DEC |  |

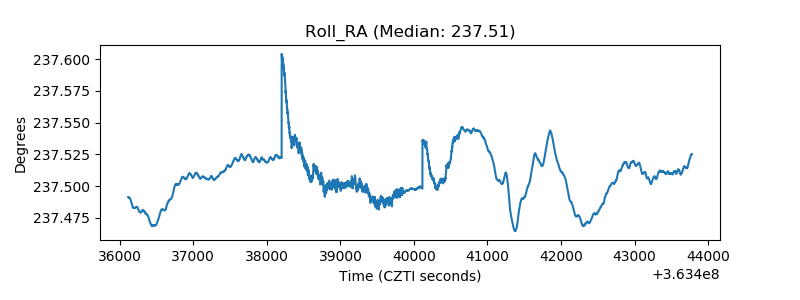

| _Roll_RA |  |

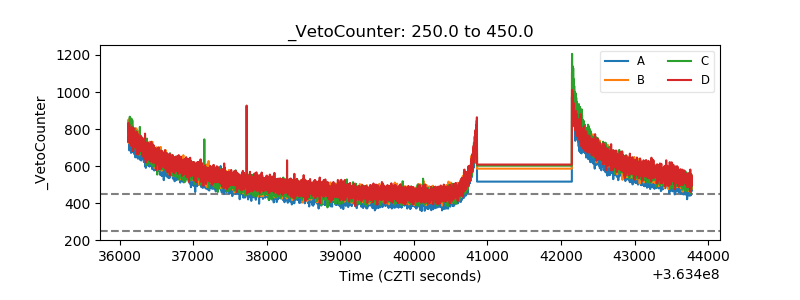

| Veto Counter |  |
